Code 64: Fuel Injector Circuit (ECM Transistor)

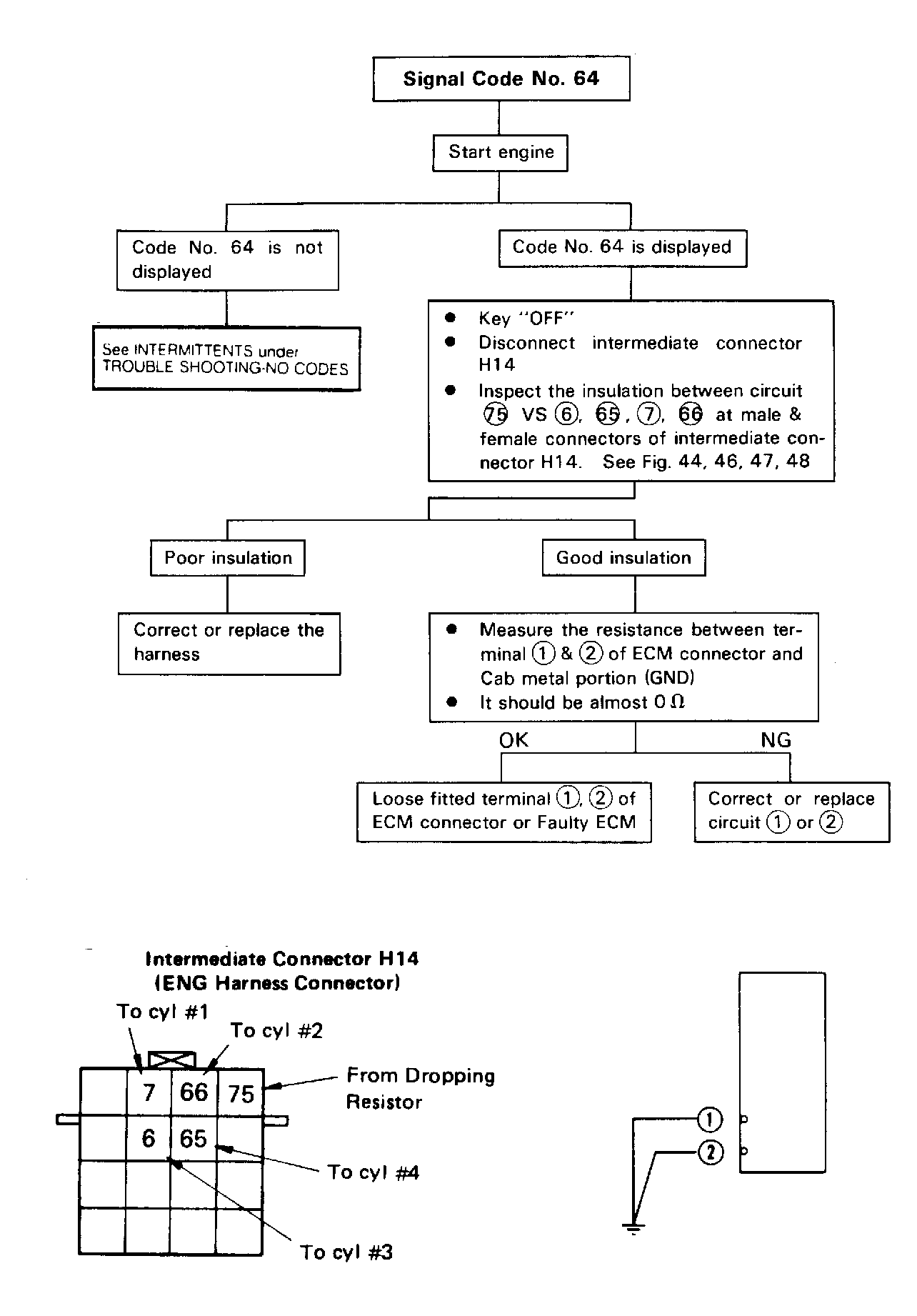

Fig 1: Code 64: Circuit & Flow Chart, Fuel Injector Circuit (ECM Transistor)
G122263Courtesy of ISUZU MOTOR CO.
Fig 2: Location Of Test Connector "H14"
G122262Courtesy of ISUZU MOTOR CO.
