Trooper LS, 2.8 R, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - 2.6L
>>
Diagnostic Circuit Check
>>
Ecu Terminal Identification
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Ecu Terminal Identification

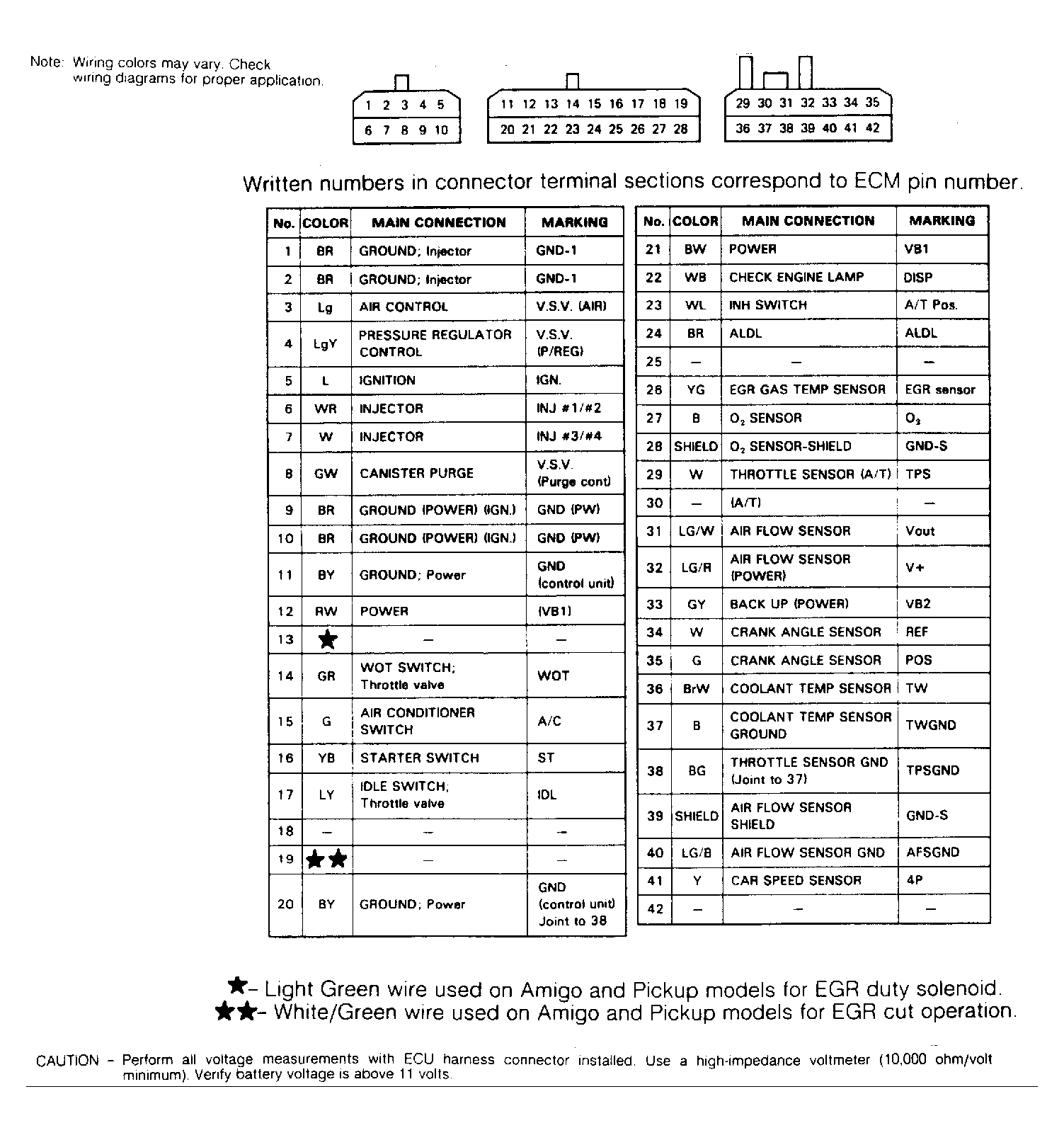

Fig 1: ECU Terminal Identification
