MAP Sensor

MAP SENSOR OUTPUT CHECK

DIAGNOSTIC CHART

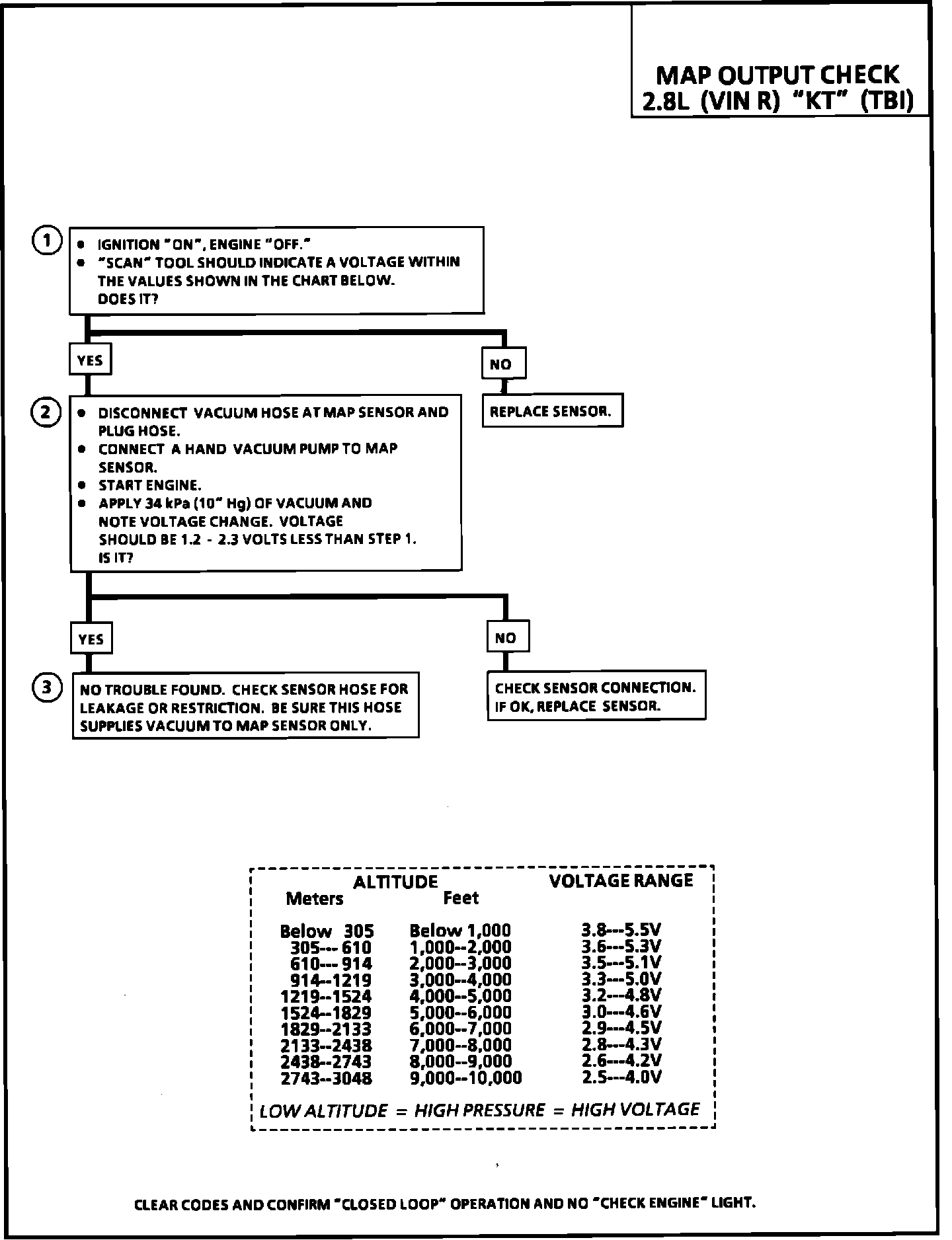

MAP Output Diagnostic Chart:







TEST DESCRIPTION

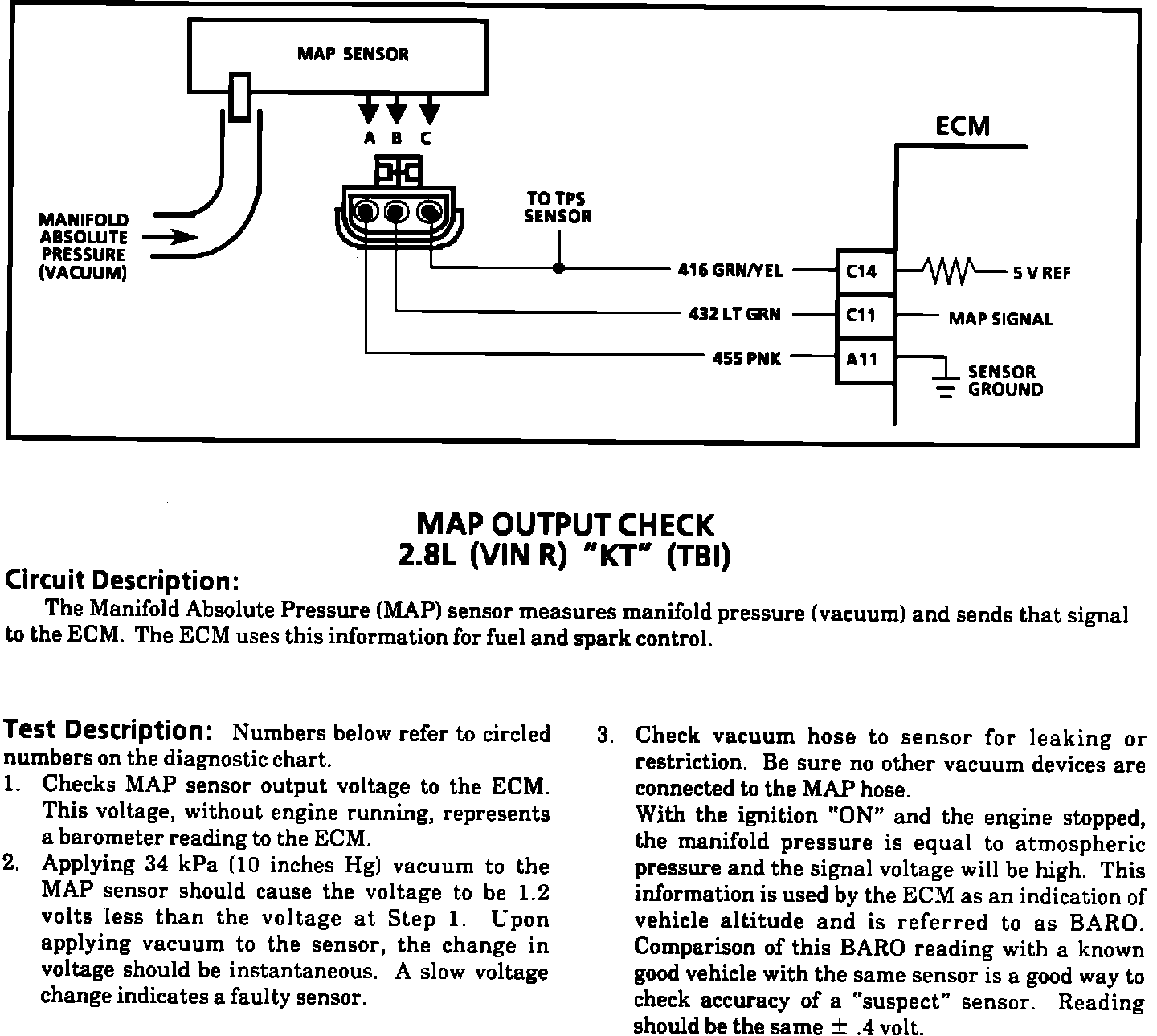

MAP Output Test Description:
