System Performance Check

System Performance Check:

Dwell Meter Readings/Feedback Cycling:

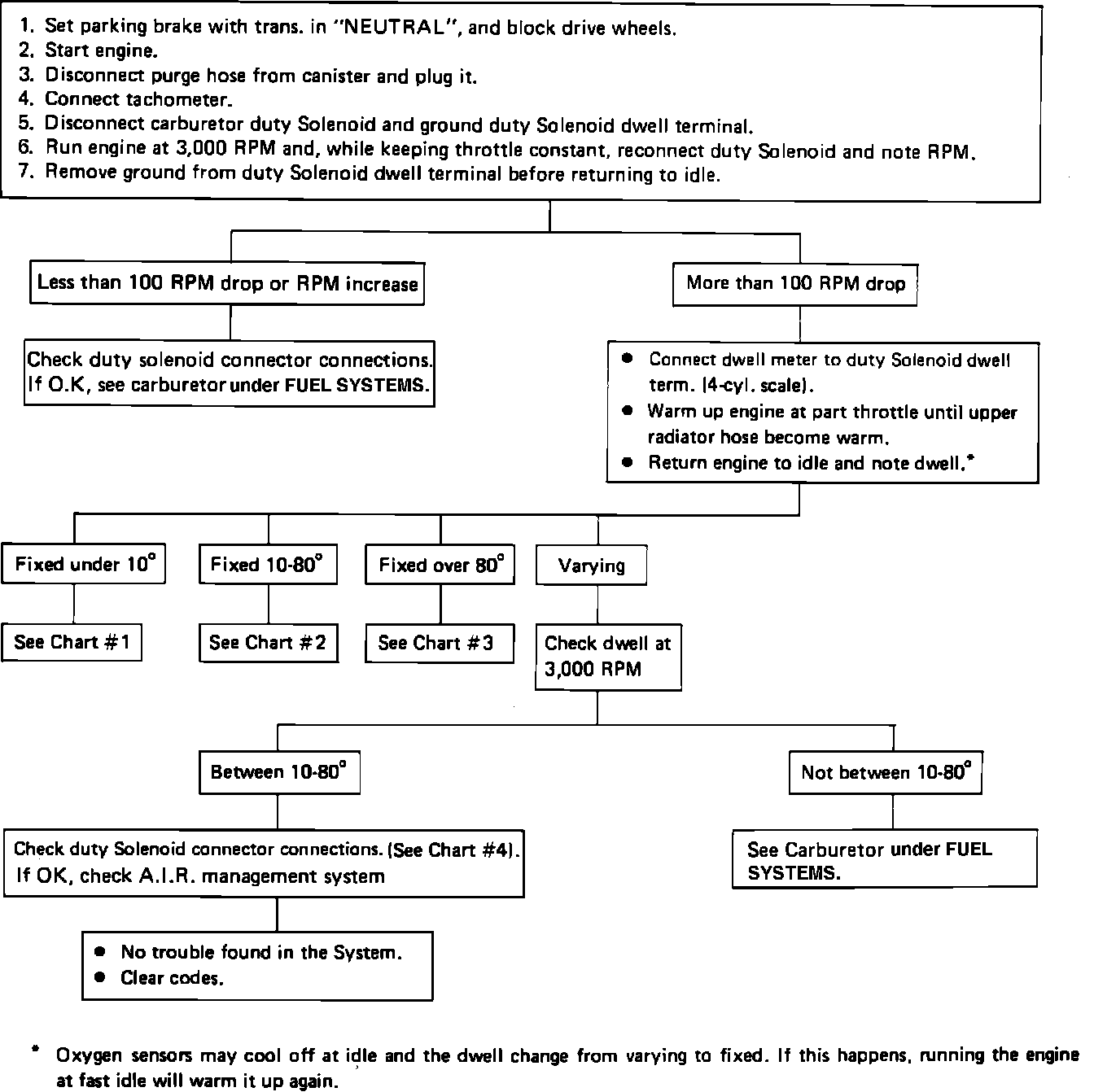

The System Performance Check is used to check the operation of the carburetor duty solenoid and main metering circuit utilizing a tachometer and to check the operation of the Closed Loop Emission Control System utilizing a dwell meter. This check is performed by following the diagnostic chart and referring to the numbered charts under DIAGNOSTIC CHARTS as needed.
