Oxygen Sensor: Locations

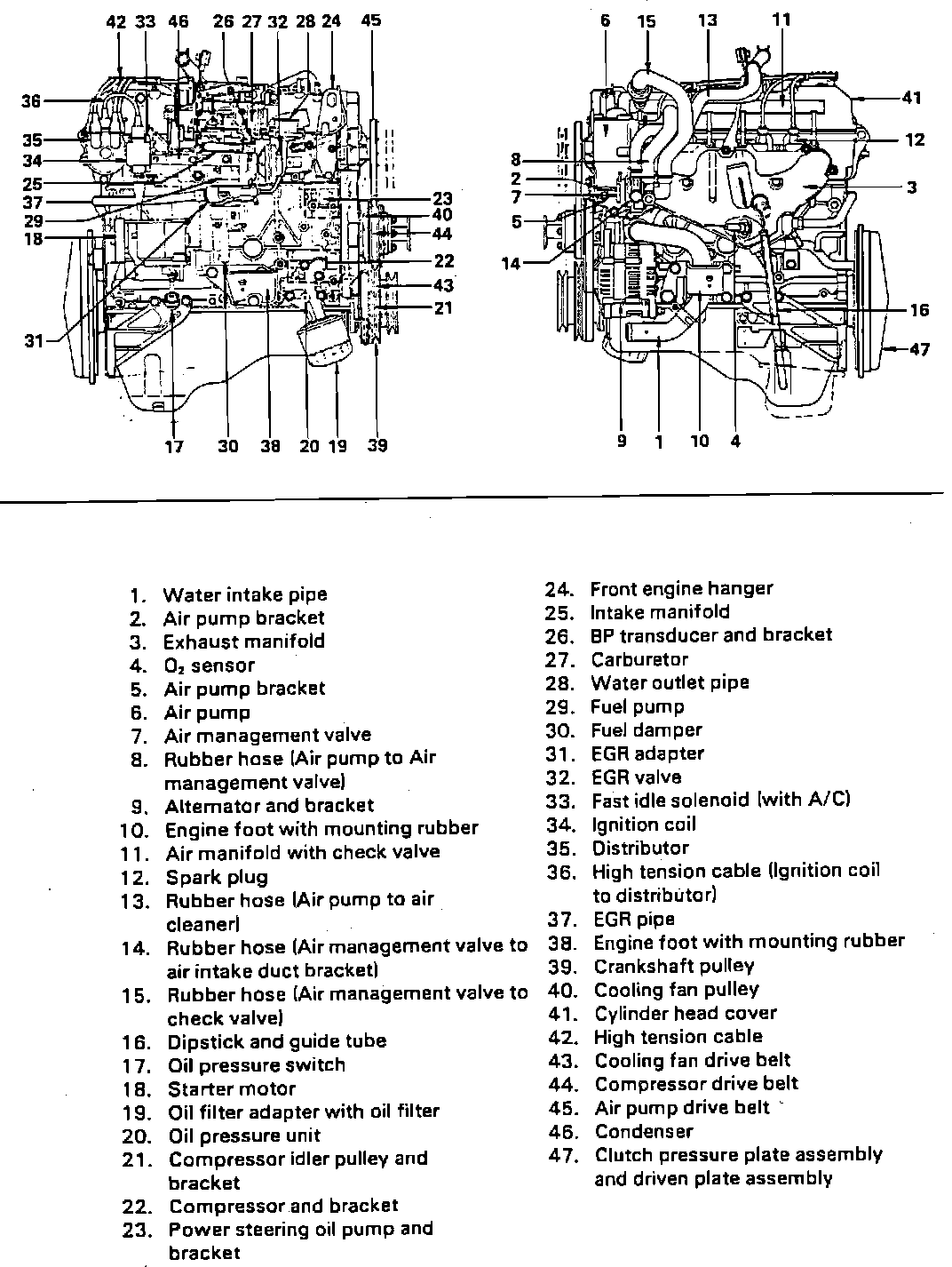

4ZD1 Engine Component Locations.:




Lower Left Side Of Engine, In Exhaust Manifold

Applicable to: 1990 Models
