Chart 2, Cruise Control Set Speed Inoperative

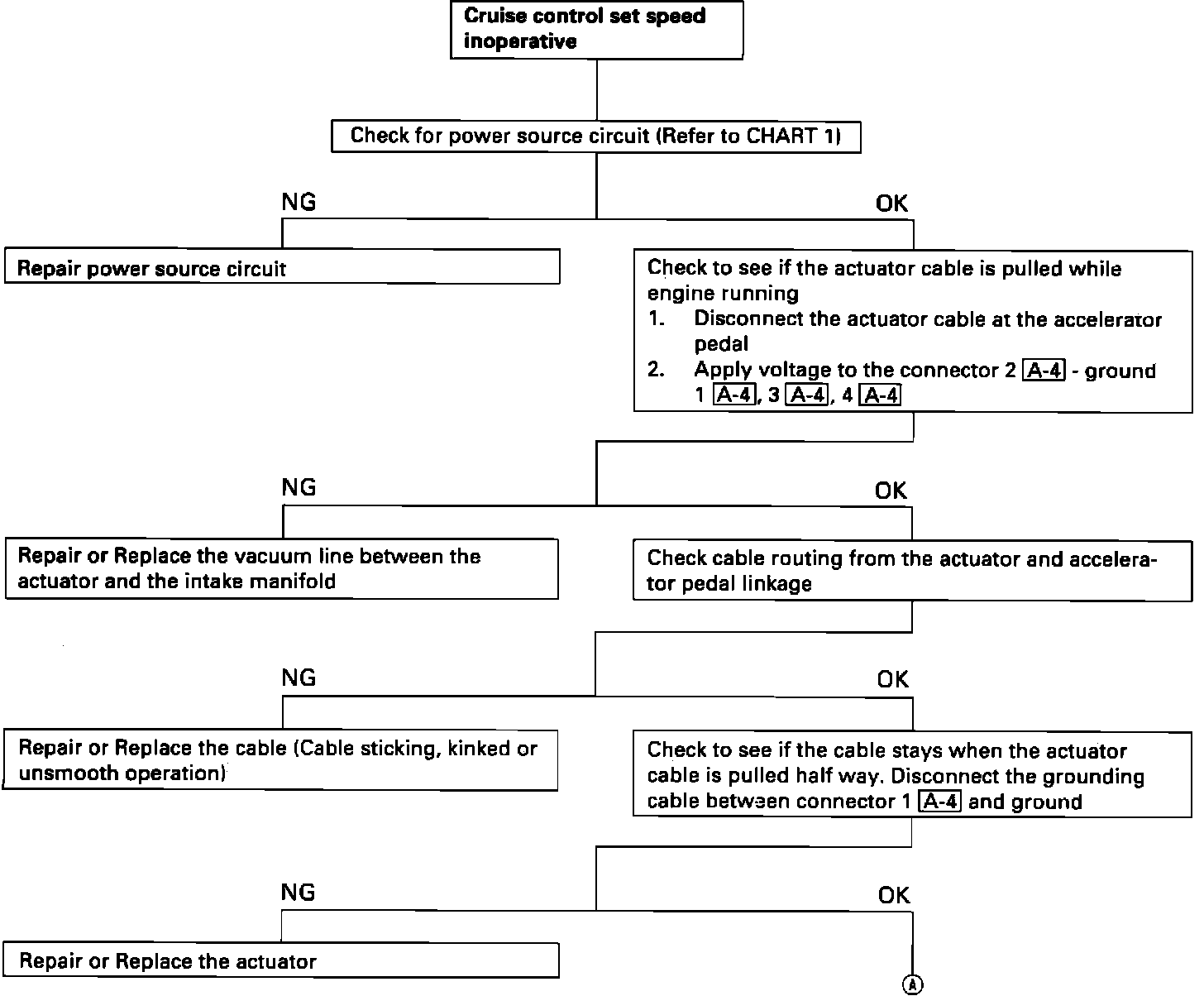

Fig. 35 Chart 2, cruise control set speed inoperative (Part 1 of 3).:

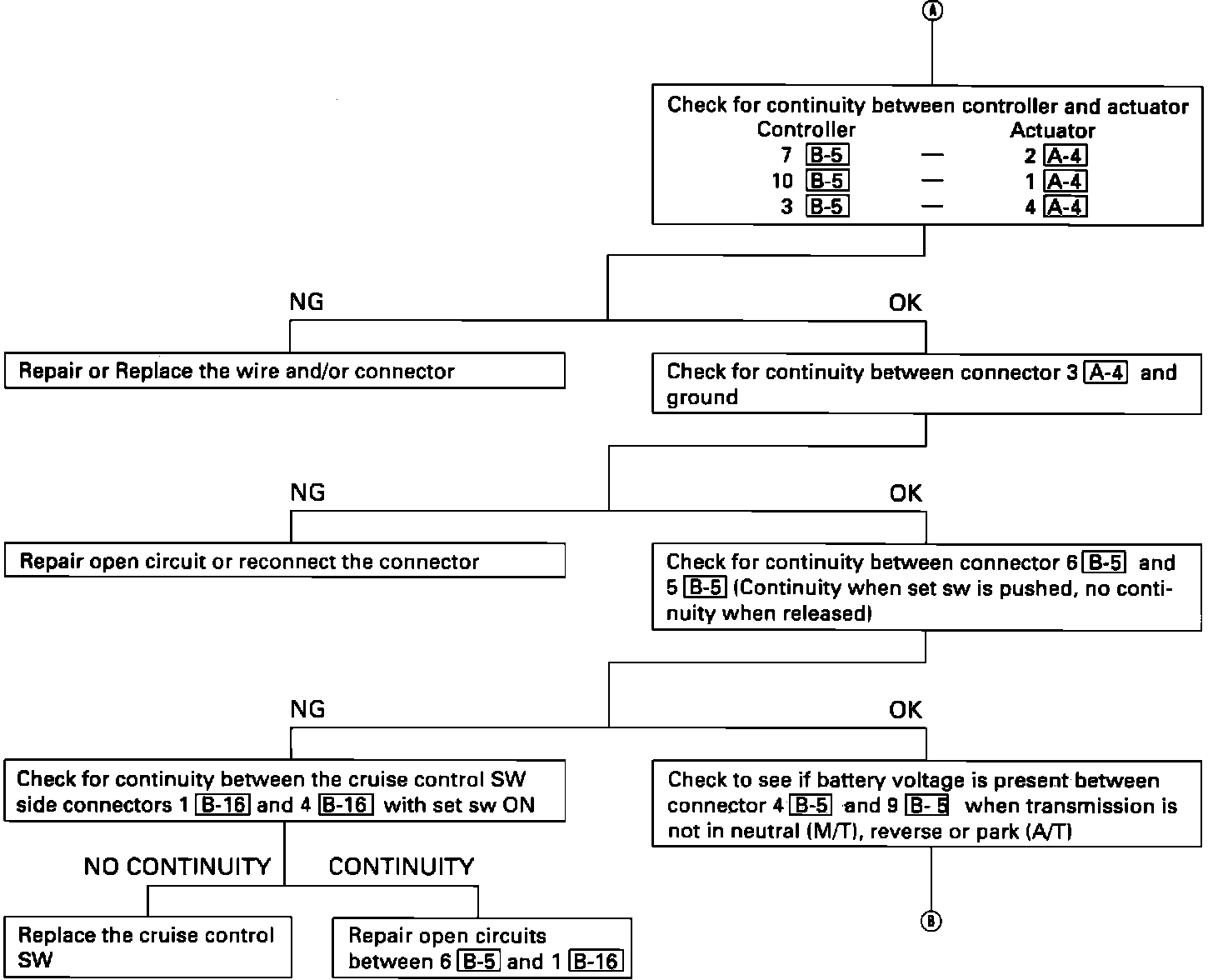

Fig. 35 Chart 2, cruise control set speed inoperative (Part 2 of 3).:



Fig. 35 Chart 2, cruise control set speed inoperative (Part 3 of 3).:
