Lighting Switch

Check continuity between switch connector terminals. See Fig 1 .

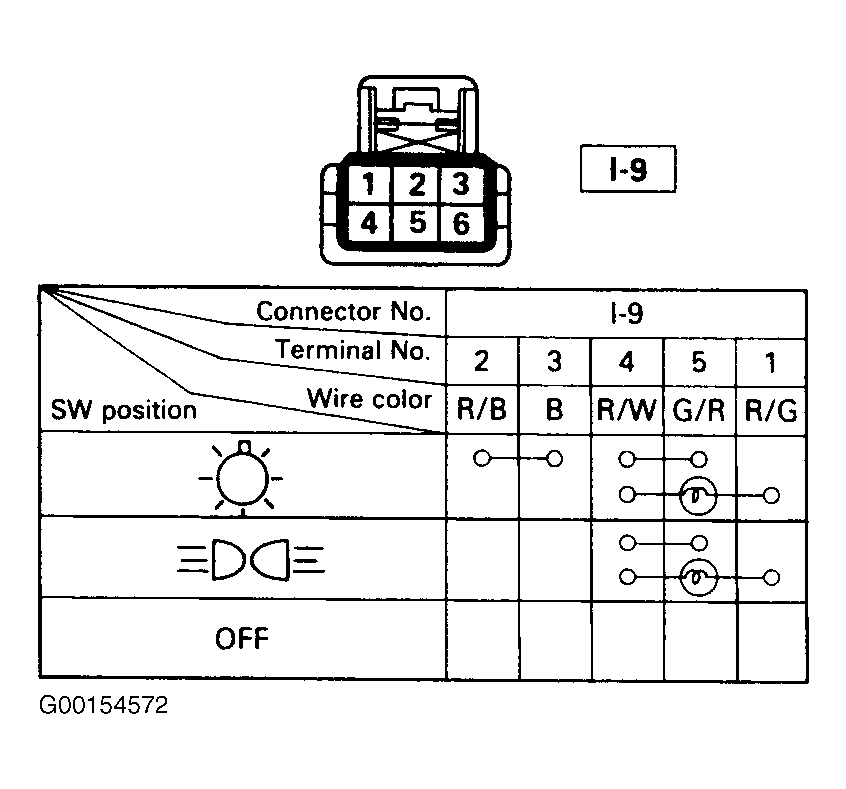

Fig 1: Testing Lighting Switch Continuity
G00154572Courtesy of ISUZU MOTOR CO.
