Fuel Metering Rich Fault Inspection Procedure

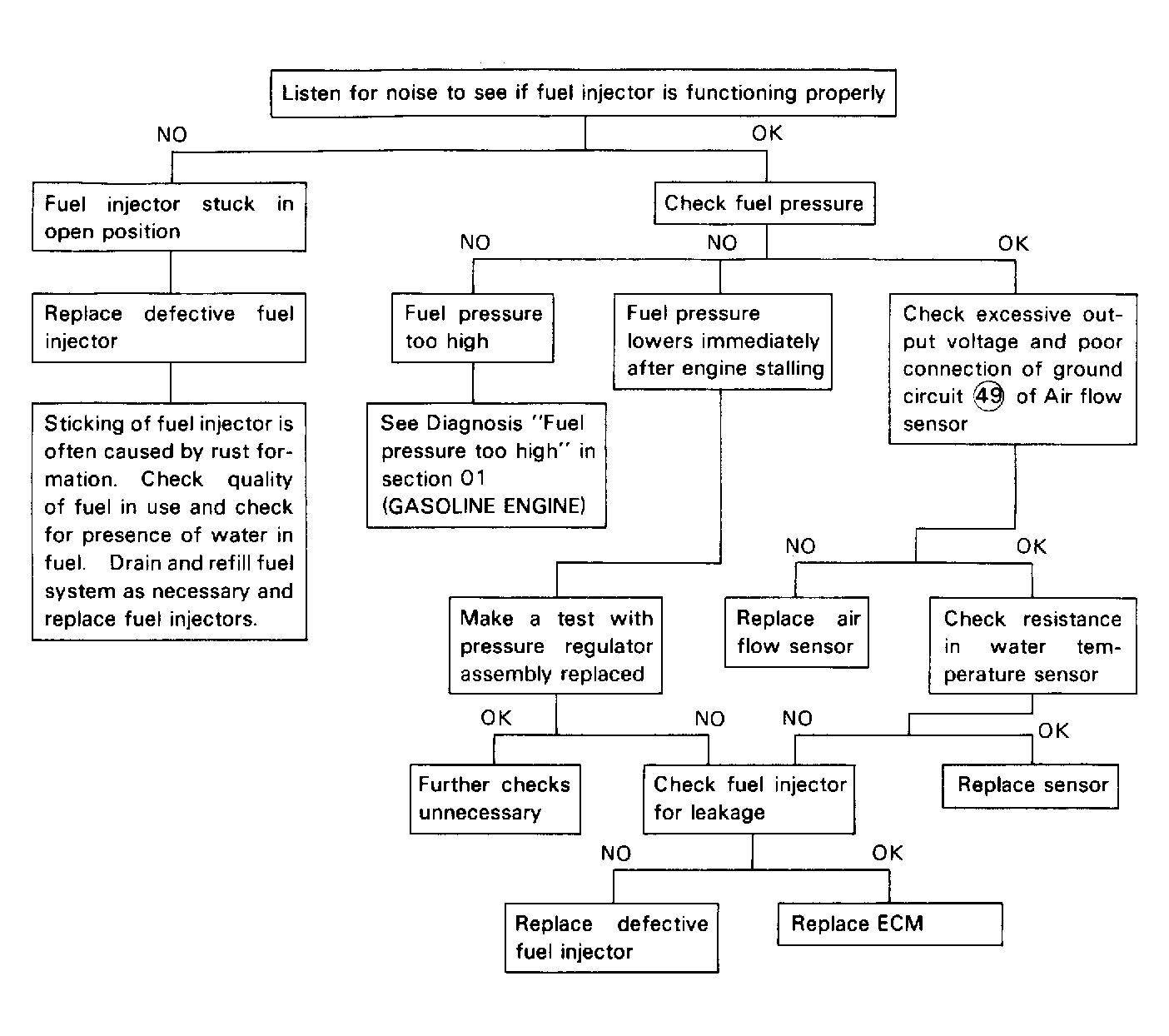

Fig 1: Flow Chart - Fuel Metering Rich Faulty Inspection Procedure
G122290Courtesy of ISUZU MOTOR CO.
