Fuel Metering Lean Fault Inspection Procedure

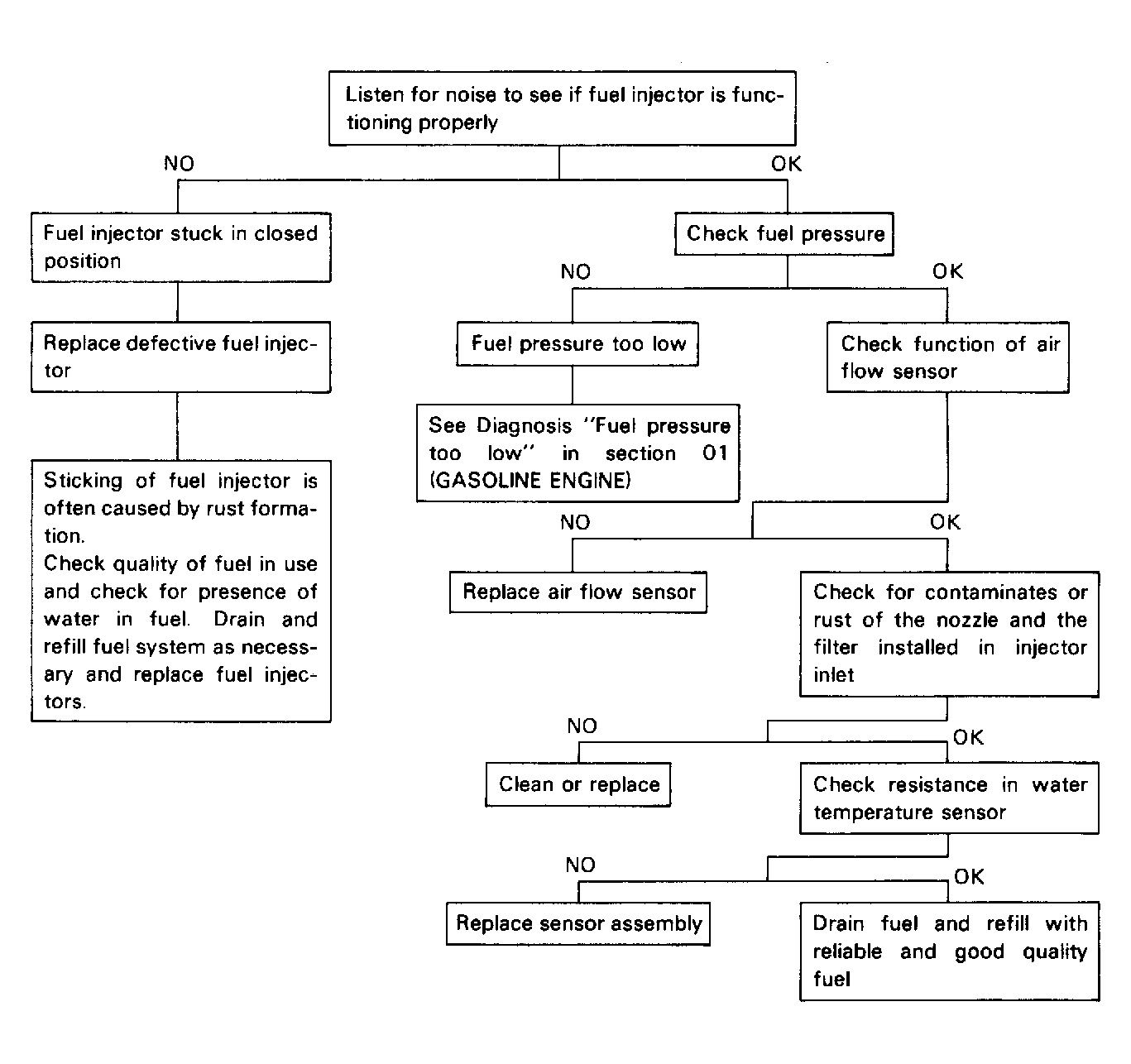

Fig 1: Flow Chart - Fuel Metering Lean Faulty Inspection Procedure
G122289Courtesy of ISUZU MOTOR CO.
