Engine Compartment Reference Diagram--Non Turbo

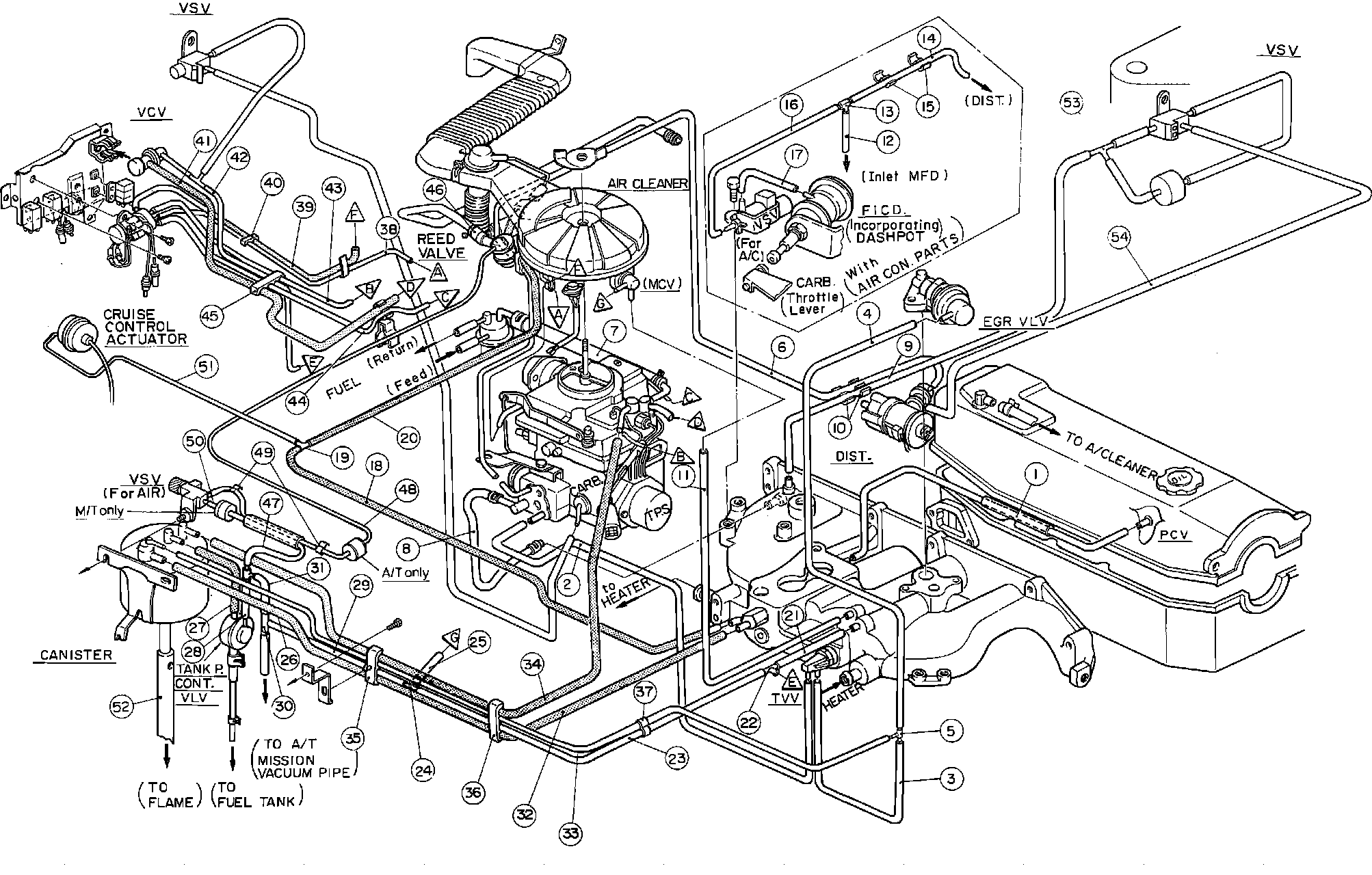

Fig. 4 Engine compartment reference diagram. 1987-88 4-90 (1.5L):

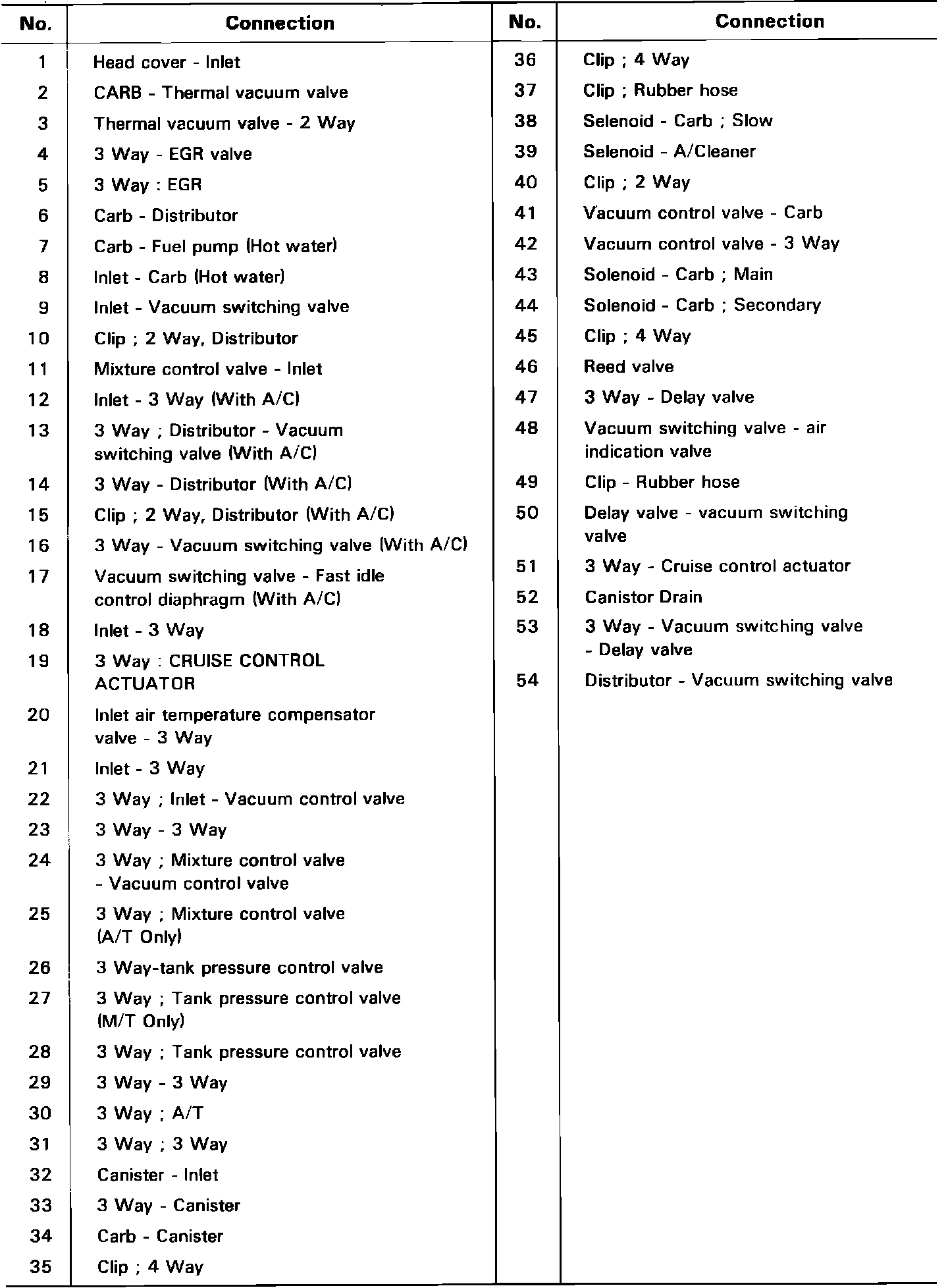

Fig. 4 Hose Connections ID. 1987-88 4-90 (1.5L):
