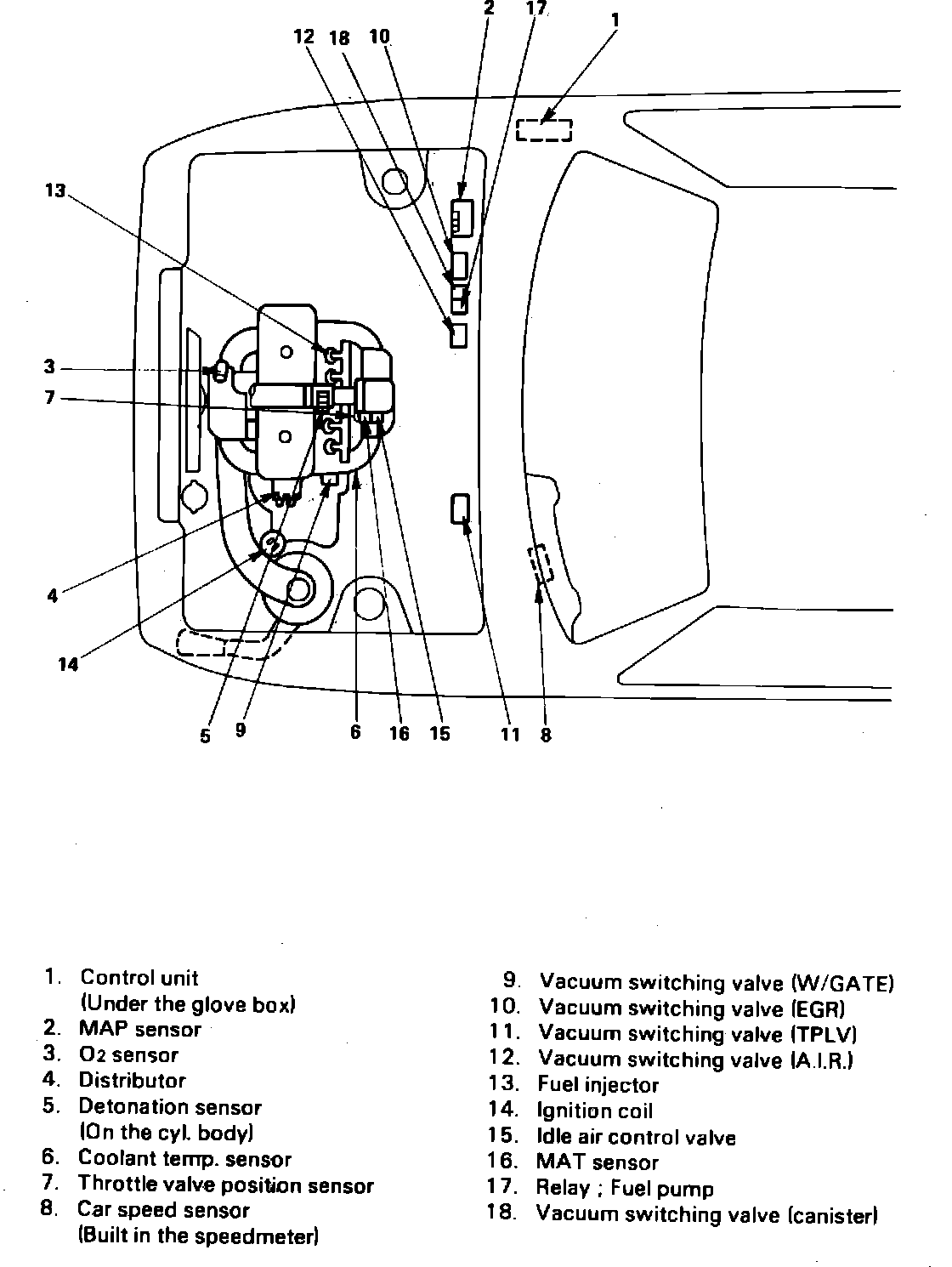

Knock Sensor: Locations

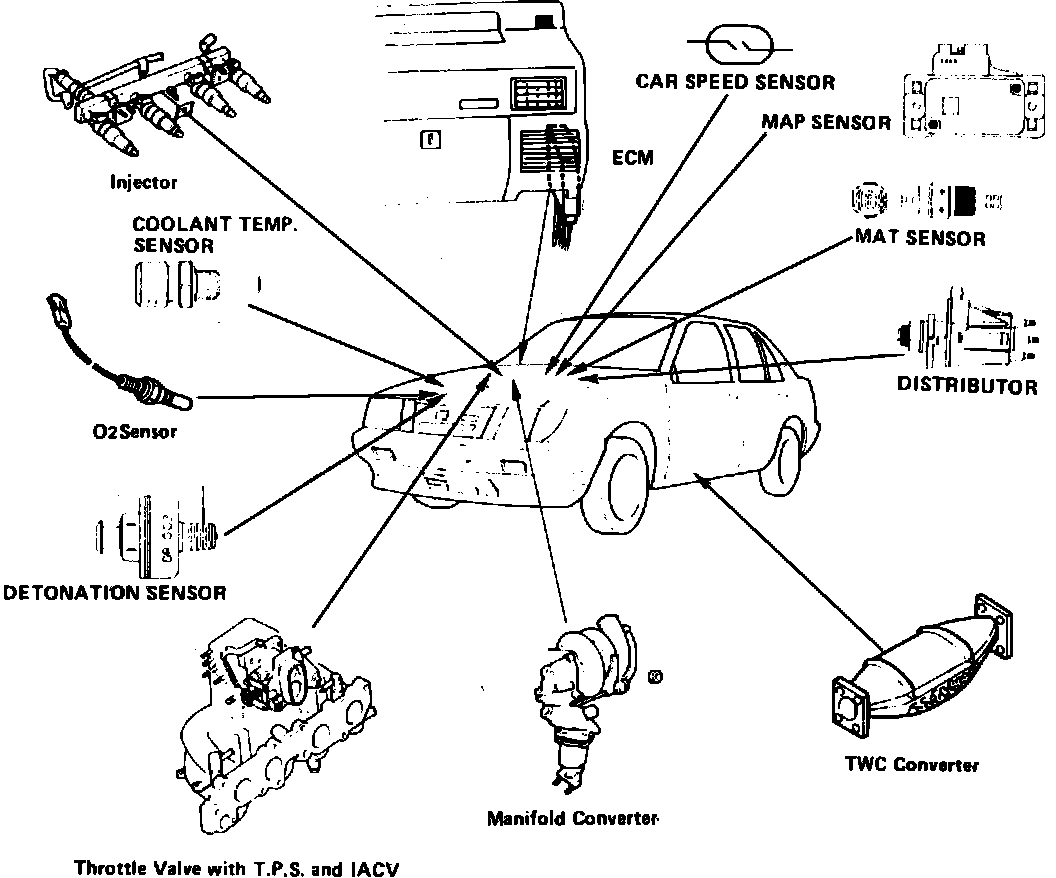

Emission Control Components.:

Engine Compartment.:

RH Side Of Engine, On Cylinder Body

Applicable to: 1987 I-Mark Turbo
