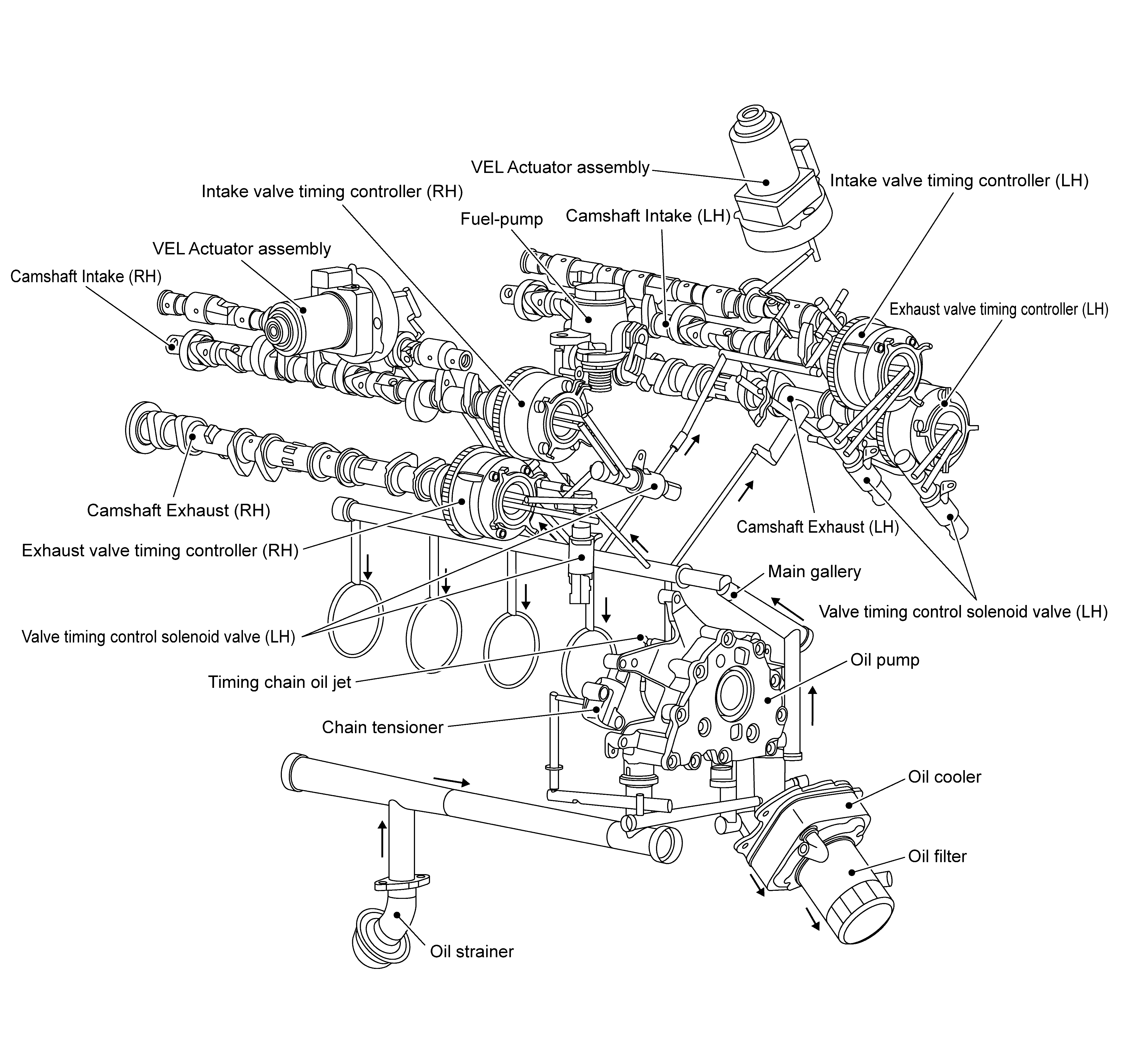

System Description

GNSDB145022Courtesy of NISSAN NORTH AMERICA, INC.

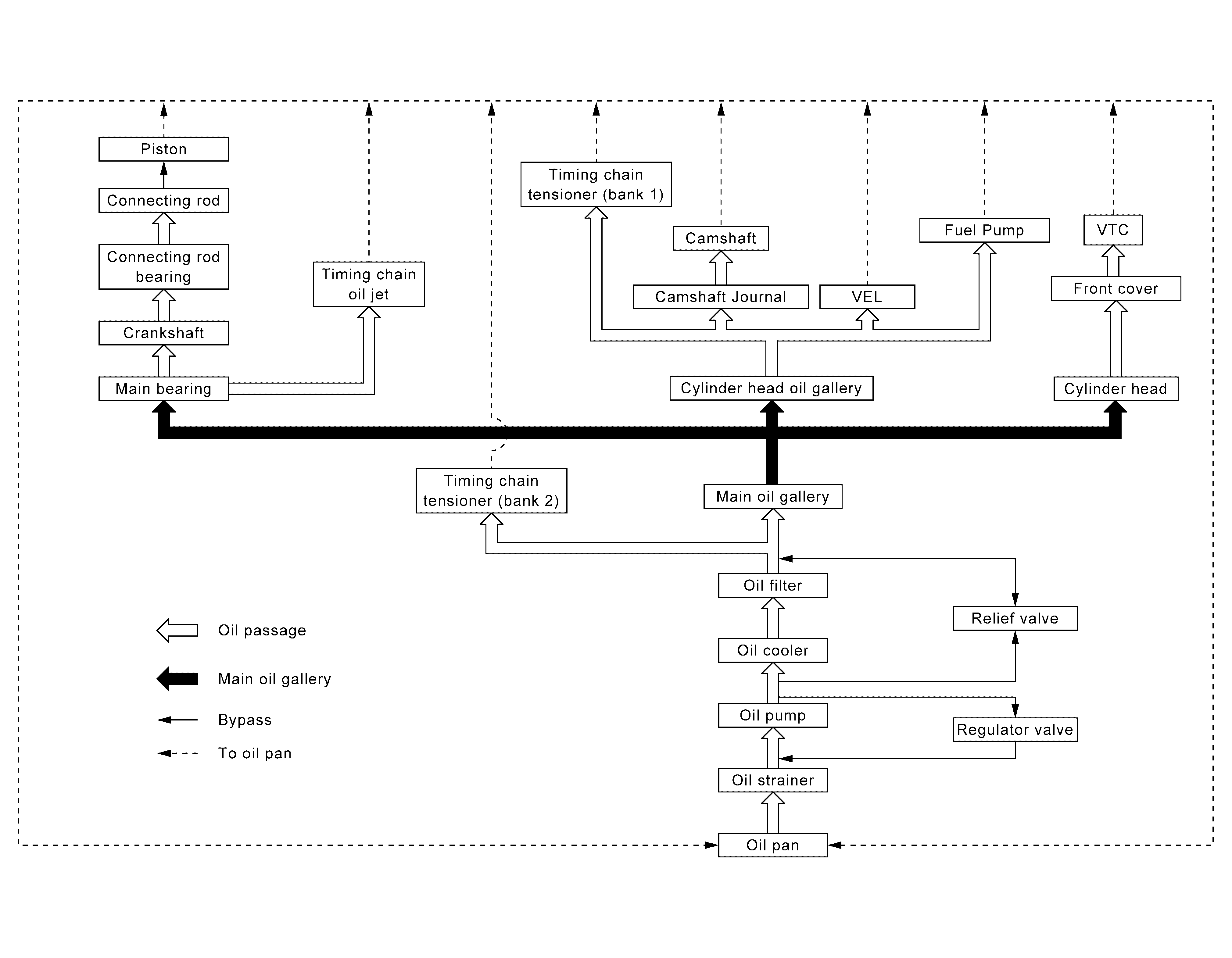

Engine Lubrication System Schematic

GNSDB147145Courtesy of NISSAN NORTH AMERICA, INC.
