FRONT WHEEL SENSOR : Exploded View

CAUTION:

Replace wheel hub and bearing assembly as an assembly when replacing because wheel sensor cannot be disassembled.

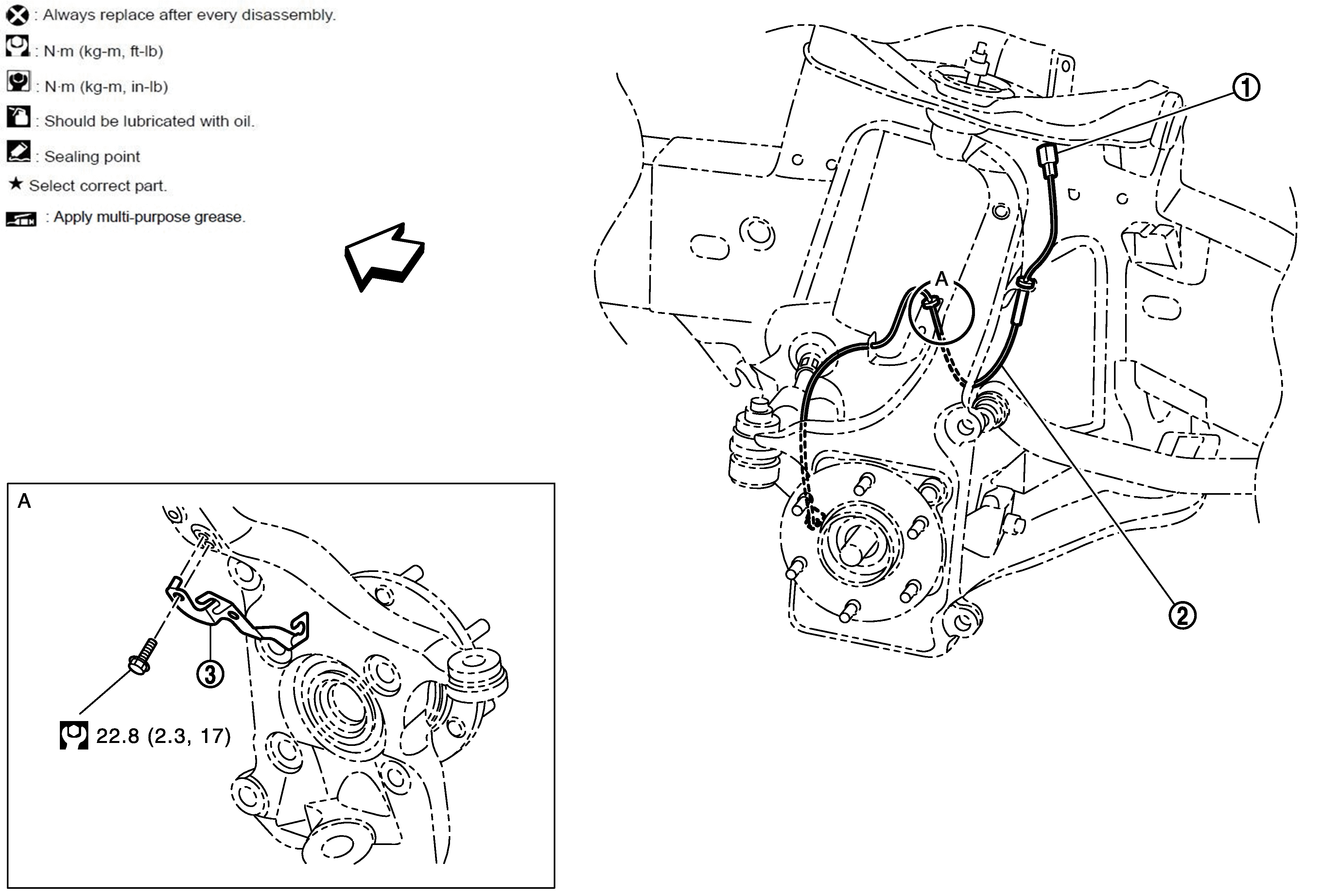

Fig 1: Front Wheel Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Front LH wheel sensor harness connector

Front LH wheel sensor

Bracket

	: Vehicle front
	: N.m (kg-m, ft-lb)

NOTE: Front RH wheel sensor is symmetrically opposite of LH.
