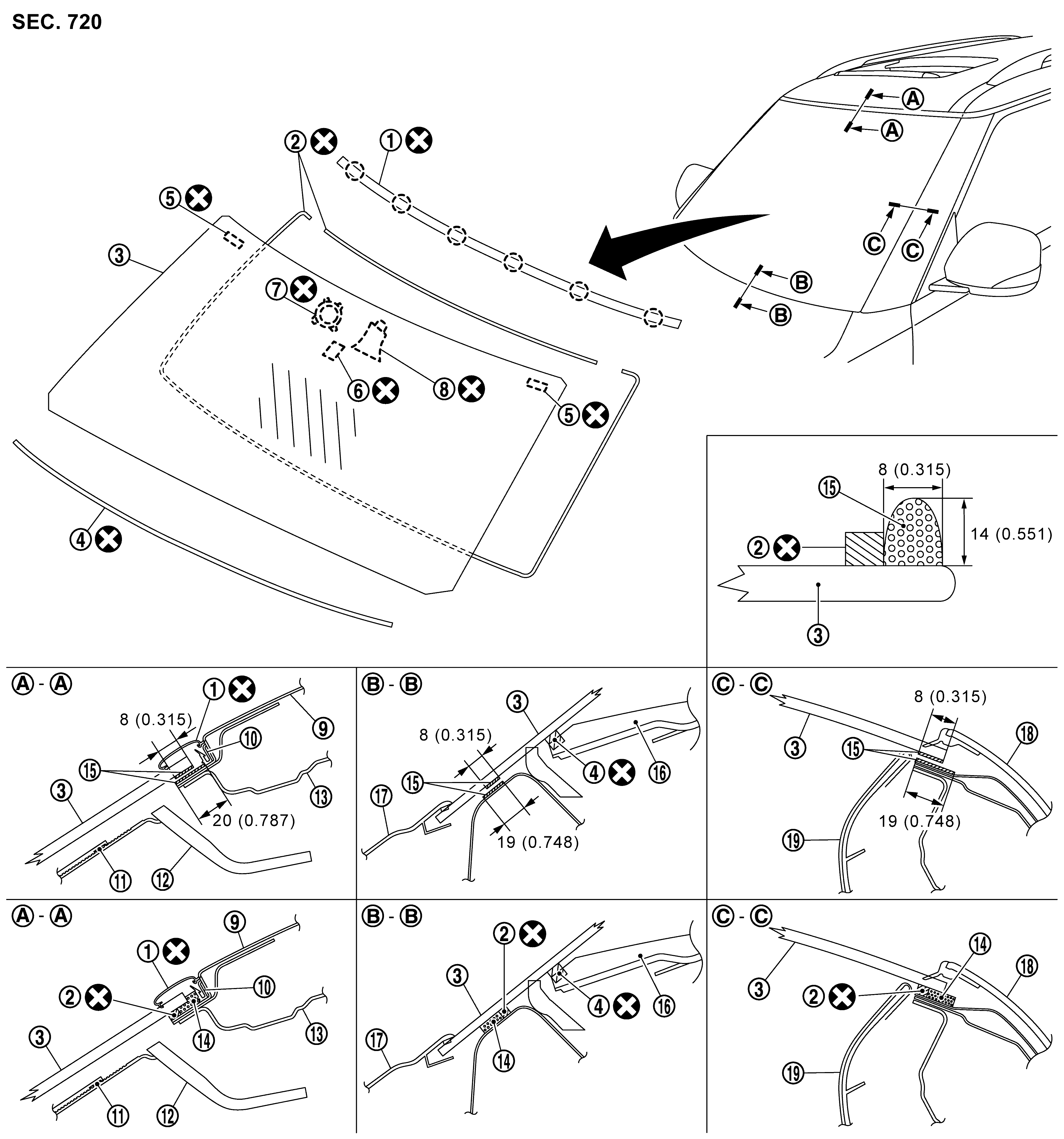

WINDSHIELD GLASS : Exploded View
| 1. | Windshield molding upper | 2. | Dam sealant rubber (upper, lower) | 3. | Windshield glass |
| 4. | Insulator | 5. | Clip | 6. | Inside mirror base |
| 7. | Rain sensor bracket | 8. | Lane camera unit bracket (with lane camera model) | 9. | Roof assembly |
| 10. | Windshield molding upper fastener | 11. | Inside mirror cover | 12. | Headlining assembly |
| 13. | Front roof rail | 14. | Adhesive | 15. | Primer |
| 16. | Instrument panel | 17. | Cowl top cover | 18. | Front pillar finisher |
| 19. | Front pillar garnish | ||||
| : Clip | |||||
| : Always replace after every disassembly. | |||||
| Unit | : mm (in) | ||||
