Conventional (Fixed Speed) Cruise Control Mode Function: Operation

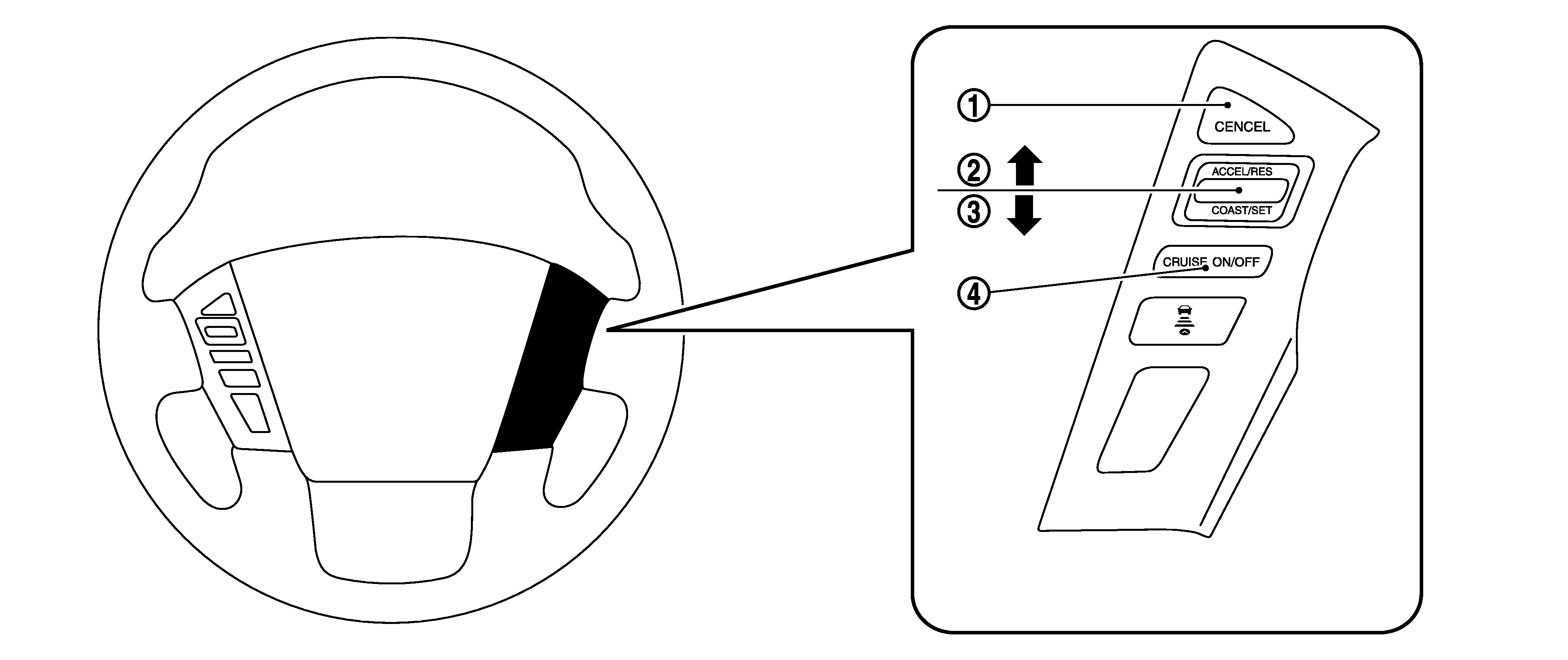

Switch Name and Function

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Description	Function
	CANCEL switch	Deactivates system without erasing set speed
	RESUME/ACCELERATE switch	Resumes set speed or increases speed incrementally
	SET/COAST switch	Sets desired cruise speed or reduces speed incrementally
	MAIN switch	Master switch to activate the system (Press for more than 1.5 seconds)

ICC SYSTEM DISPLAY (ON THE INFORMATION DISPLAY)

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Description	Function
	Set vehicle speed indicator	Indicates the set vehicle speed
	Cruise control ON indicator (Gray)	Indicates that the ICC switch is ON
	Cruise control set indicator (Green)	Indicates that the cruising speed is set
	Cruise control system warning (Yellow)	Indicates that there is a malfunction in the ICC system

SYSTEM CONTROL CONDITION DISPLAY

Push and hold the MAIN switch for longer than approximately 1.5 seconds. This mode will be in a standby state for setting.

Condition	Display on ICC system display
Standby mode	Courtesy of NISSAN NORTH AMERICA, INC.
Control mode	Courtesy of NISSAN NORTH AMERICA, INC.

WARNING AND AUTOMATIC CANCELLATION DISPLAY

Condition		Description	Display on ICC system display
Warning display	When the ICC system is malfunctioning	A chime sounds and the control is automatically canceled NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system	Courtesy of NISSAN NORTH AMERICA, INC.
System cancel display	When the vehicle slows down more than 13 km/h (8 MPH) below the set speed When the shift lever is shifted to the "N" (Neutral) position When the parking brake is applied When the VDC (including the traction control system) operates. When a wheel slips	A chime sounds and the control is automatically canceled NOTE: The system will be in a standby, after the control is automatically canceled A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL switch is pressed	Courtesy of NISSAN NORTH AMERICA, INC.
