Component Inspection

1. Turn ignition switch OFF.

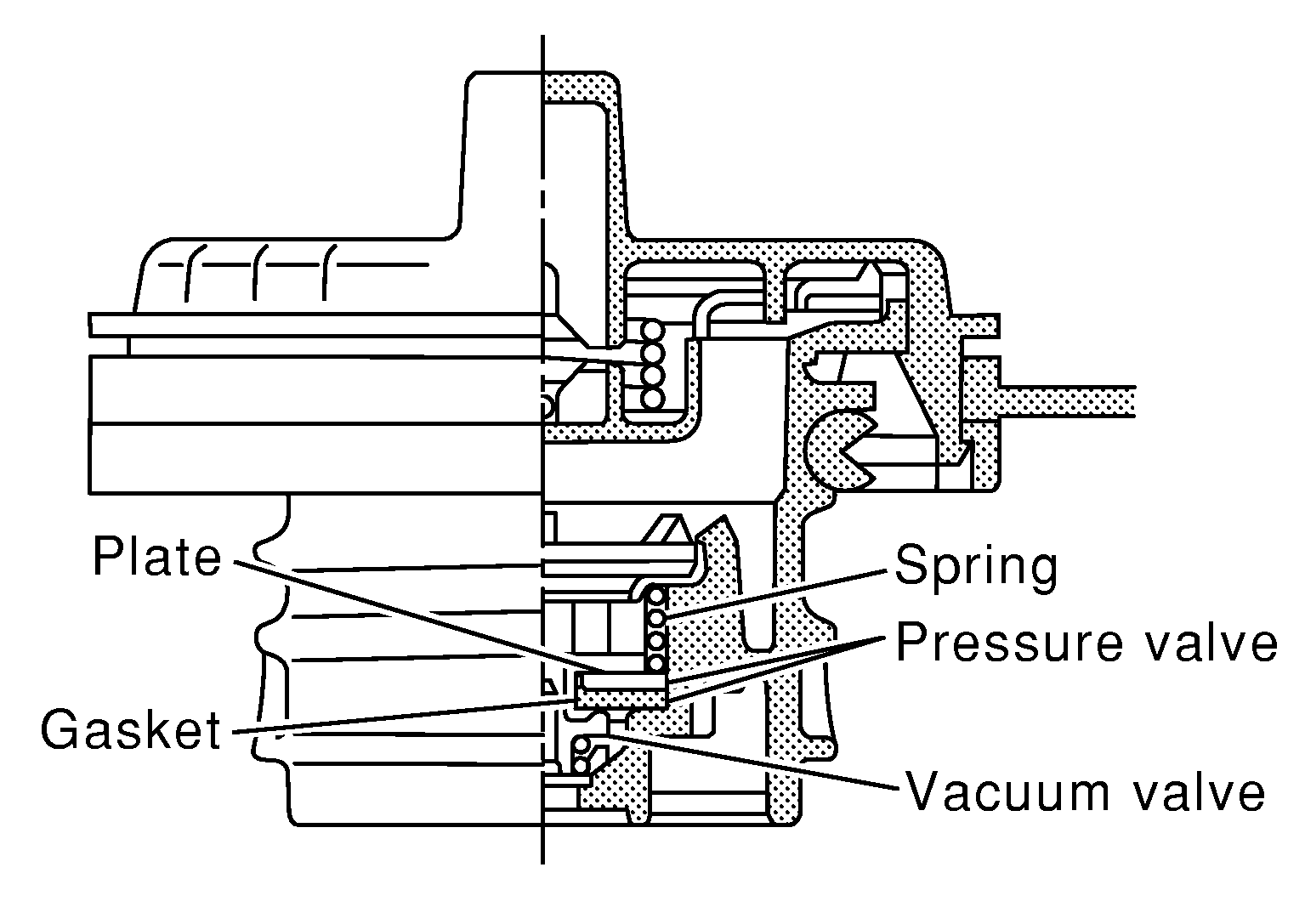

2. Remove fuel filler cap.
3. Wipe clean valve housing.

   Courtesy of NISSAN NORTH AMERICA, INC.

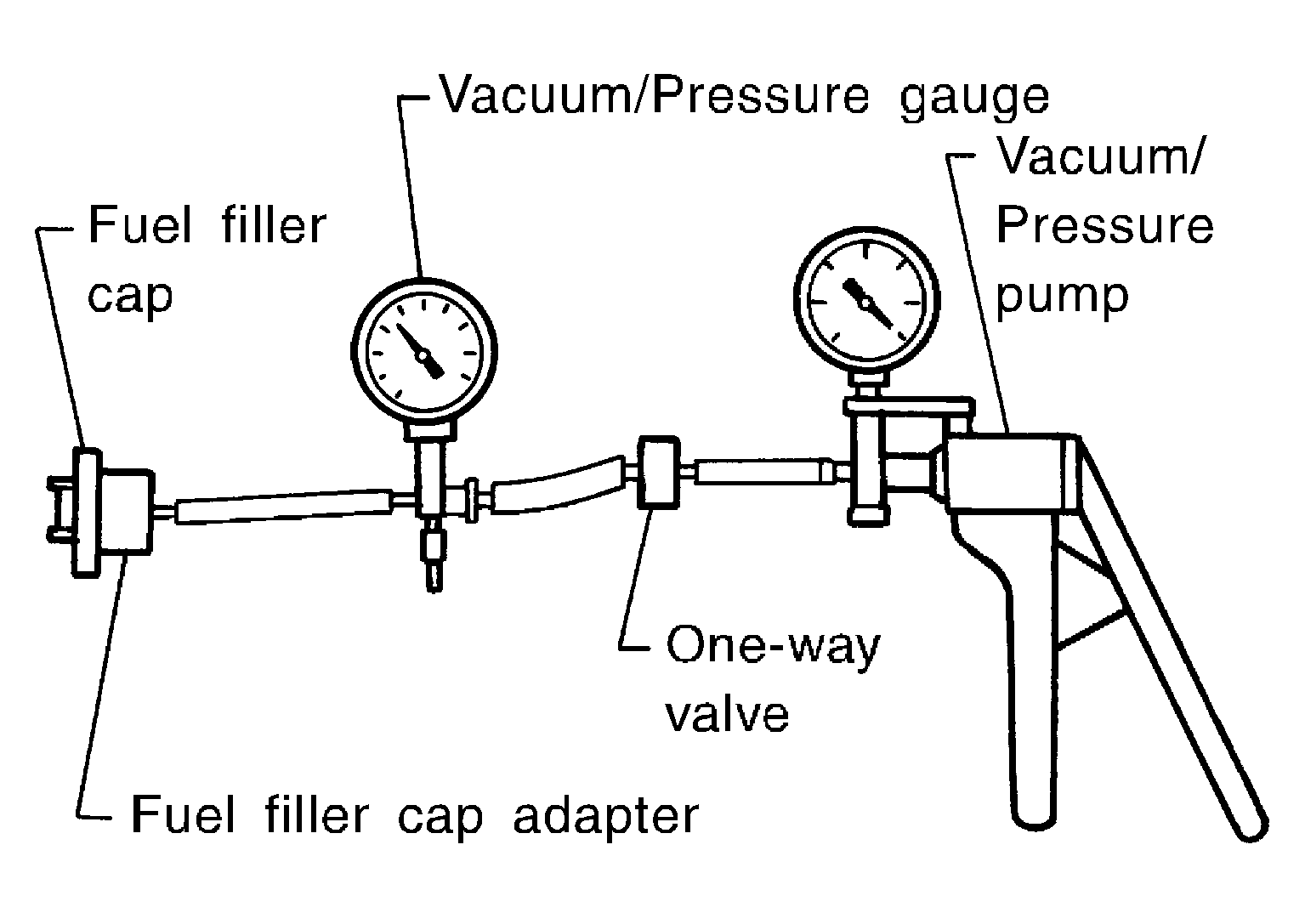

4. Install fuel filler cap adapter (commercial service tool) to fuel filler cap.

   Courtesy of NISSAN NORTH AMERICA, INC.

5. Check valve opening pressure and vacuum.

   Pressure:	15.3 - 20.0 kPa (0.156 - 0.204 kg/cm2 , 2.22 - 2.90 psi)
   Vacuum:	-6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm2 , -0.87 to -0.48 psi)

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

GO TO 2.

Replace fuel filler cap.

>>

INSPECTION END
