Exploded View

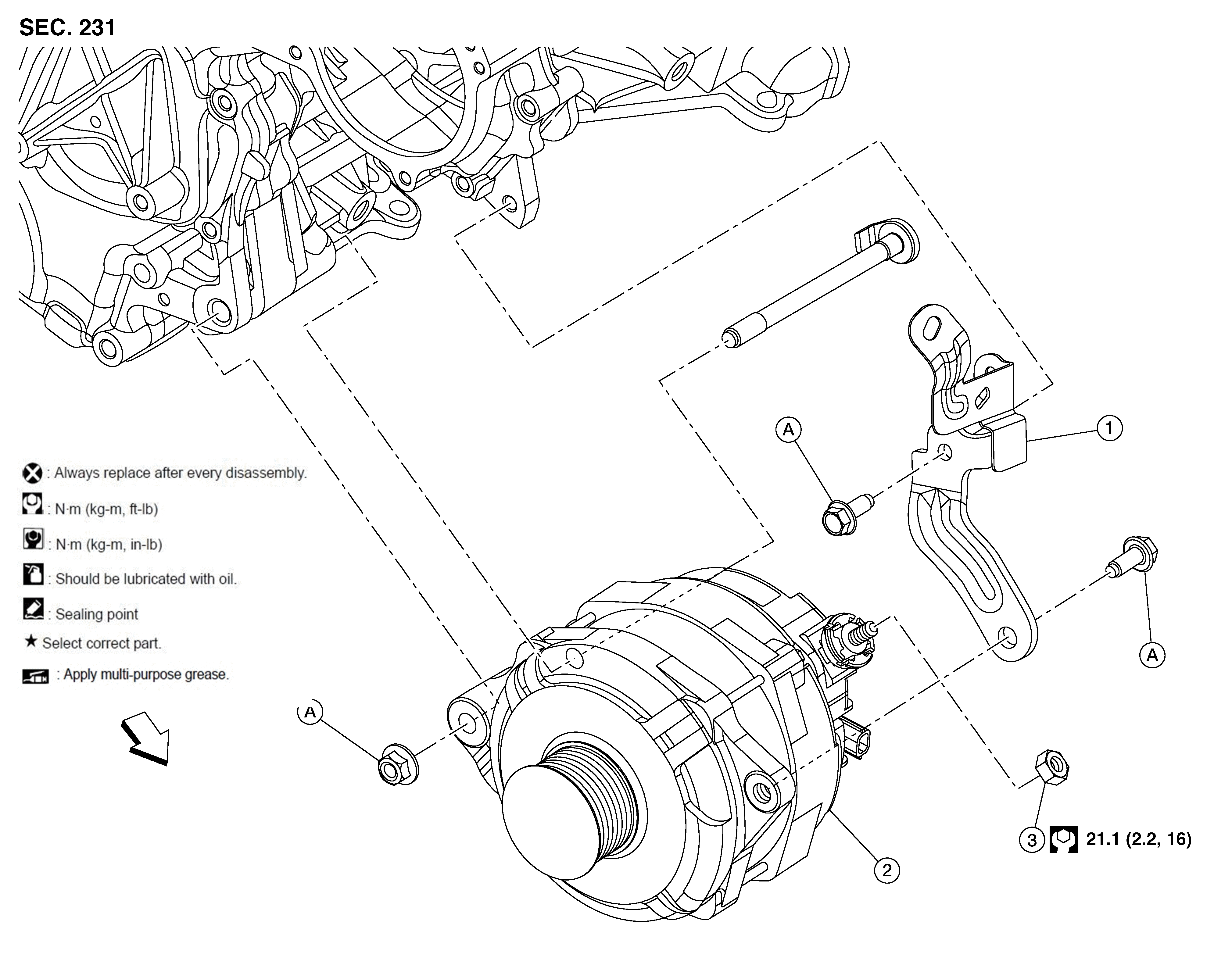

Fig 1: Generator With Torque Specifications
GNSDB137572SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
1. Generator bracket 2. Generator 3. "B" terminal nut
A. Refer to Installation . SYMBOL Front
