Exploded View

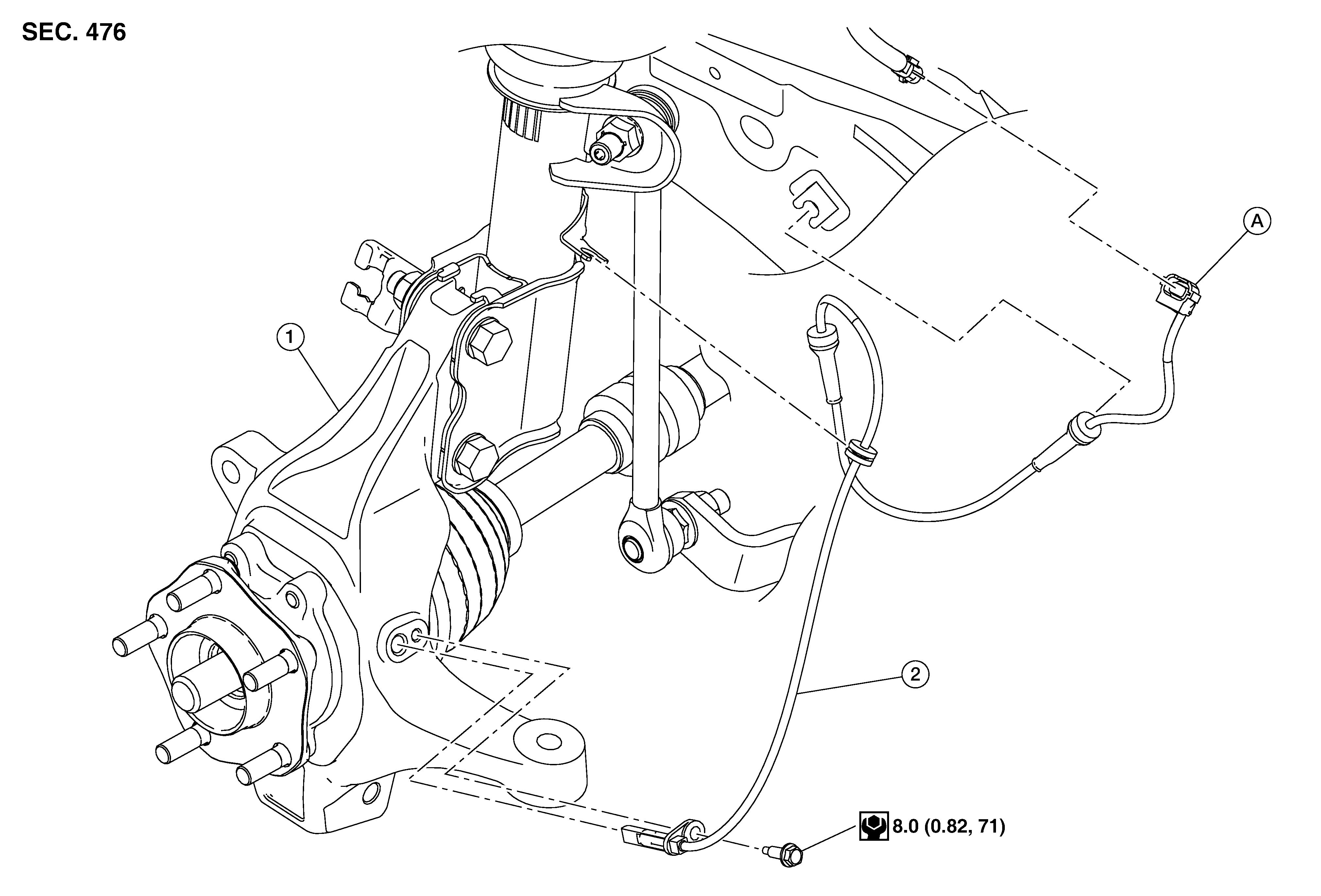

Fig 1: Front Wheel Sensor With Torque Specifications
GNSDB137036Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering knuckle 2. Front wheel sensor A. Harness connector
