Front Camera

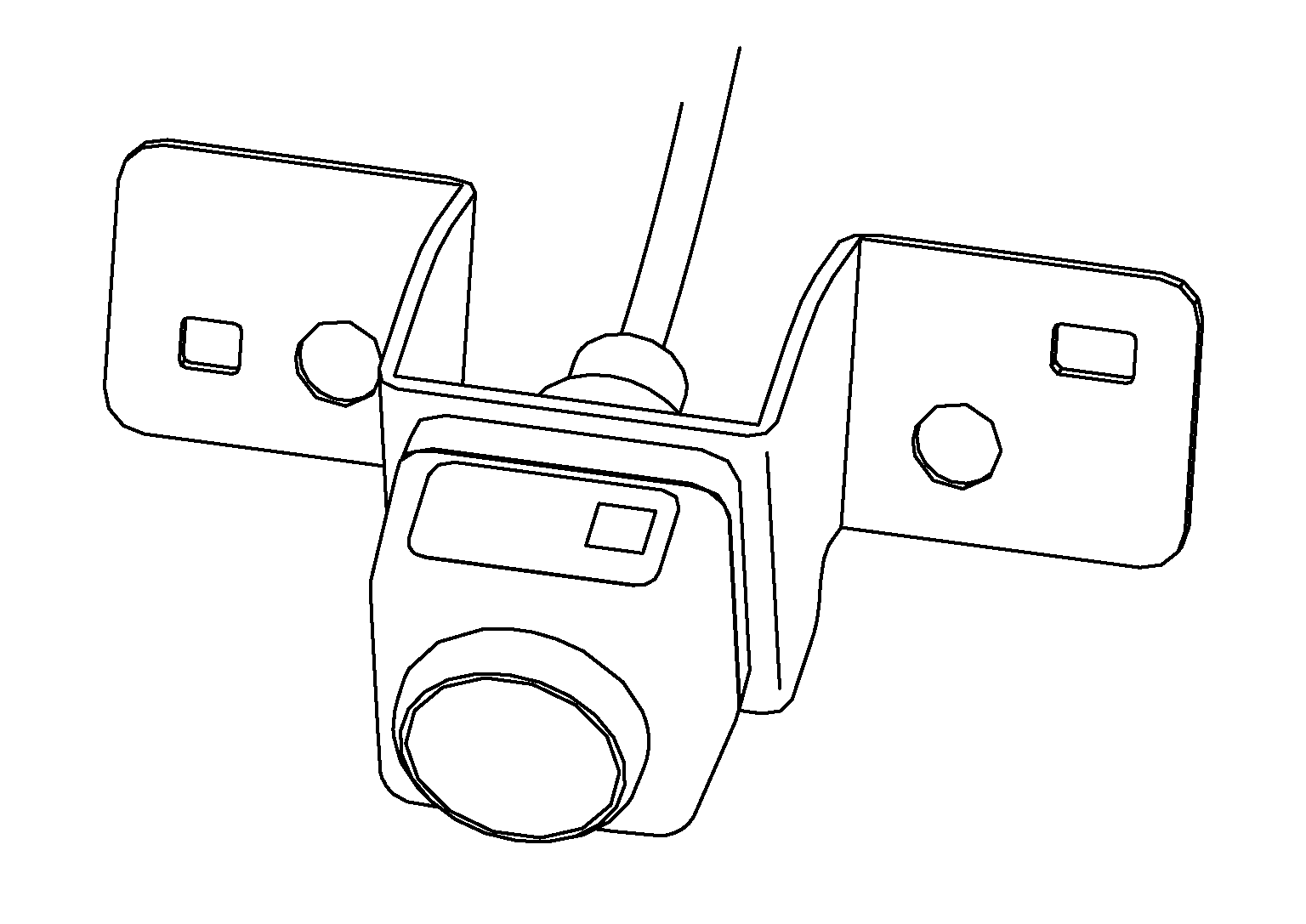

The front camera is installed in the front grille.
Courtesy of NISSAN NORTH AMERICA, INC.
Image at the front of the vehicle is sent to the around view monitor control unit via LVDS.
