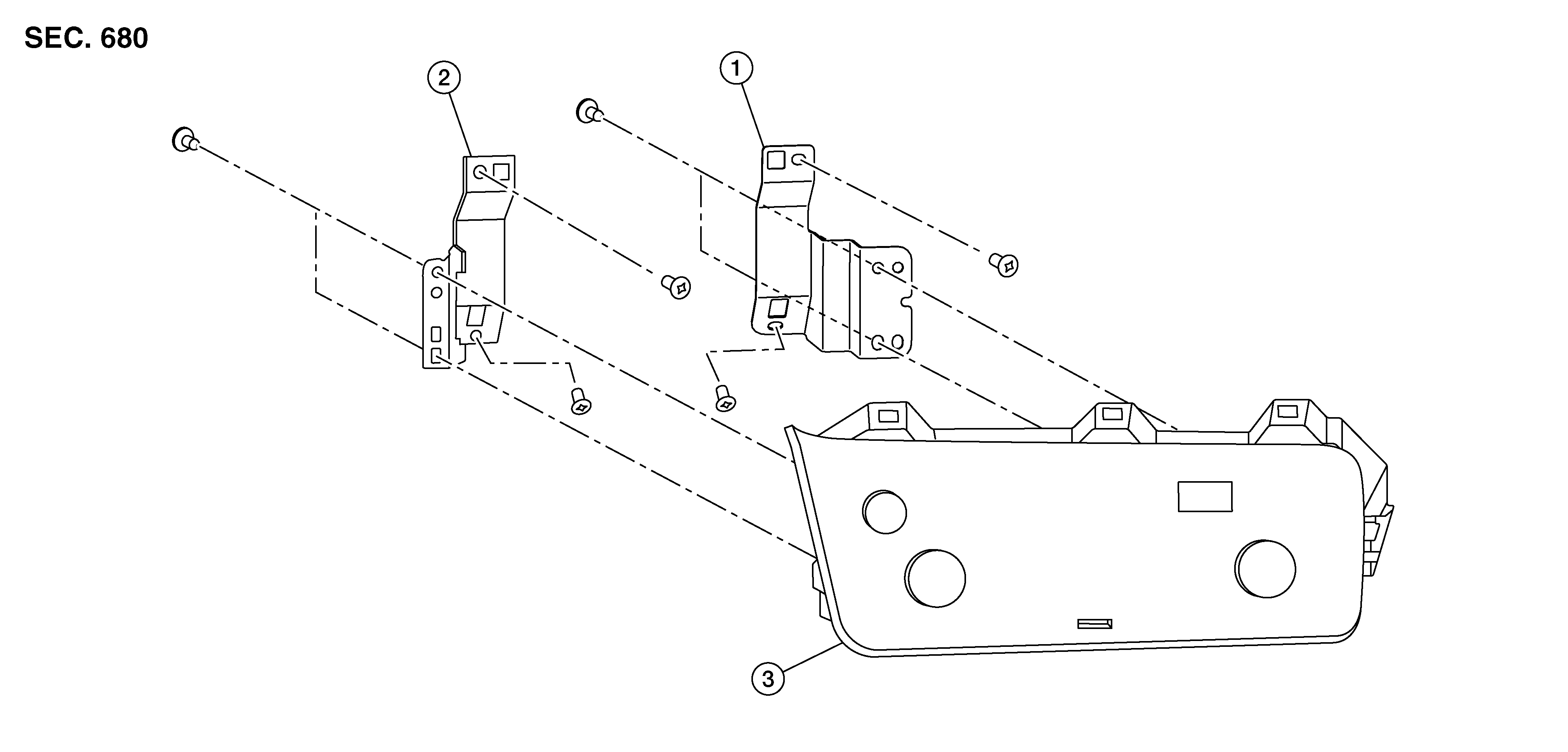

Exploded View

GNSDB140162Courtesy of NISSAN NORTH AMERICA, INC.
1. Integral switch bracket (RH) 2. Integral switch bracket (LH) 3. Integral switch
