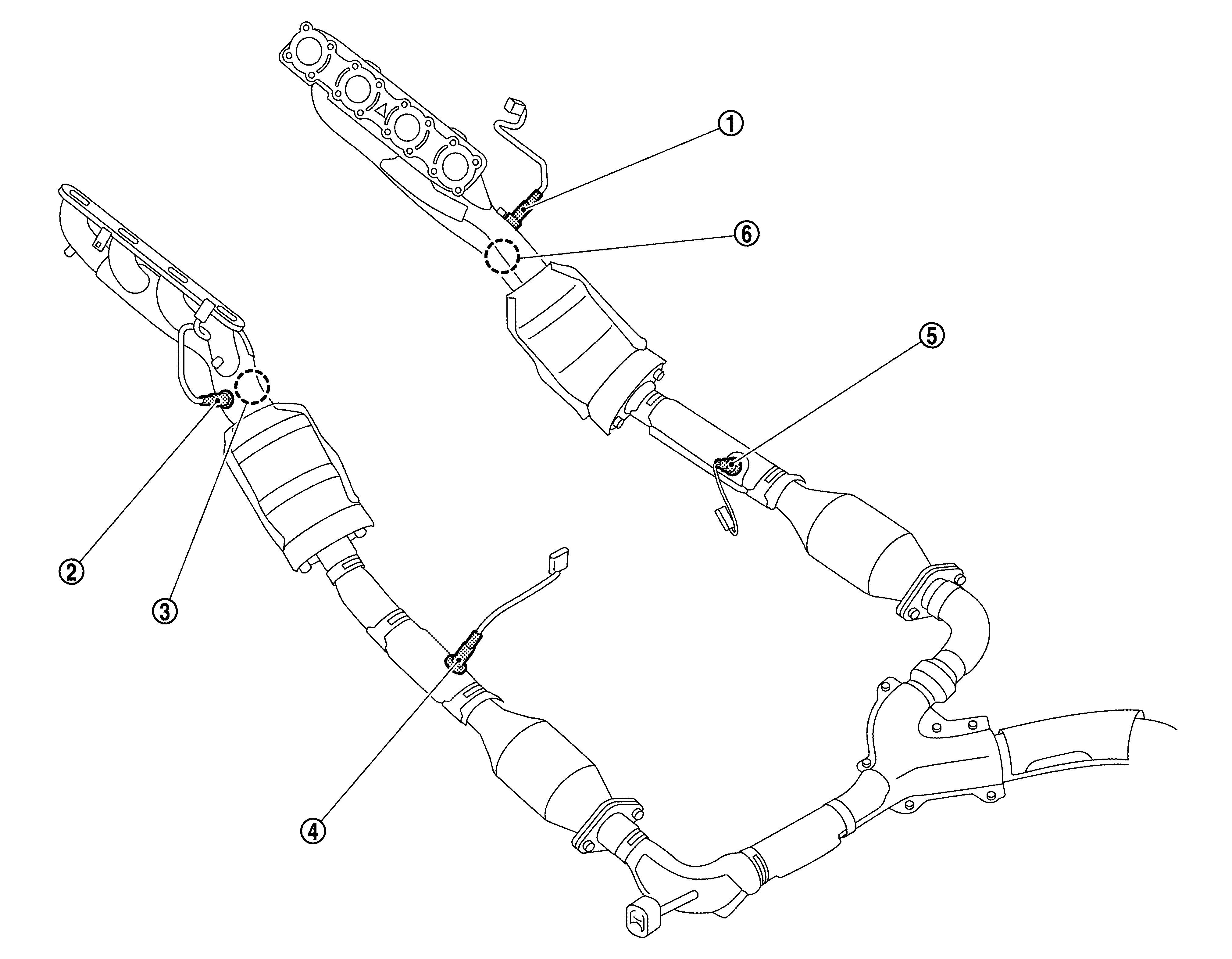

Exhaust Compartment

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/F sensor 1 (bank 2)	2.	A/F sensor 1 (bank 1)	3.	Exhaust gas temperature sensor (bank 1)
4.	Heated oxygen sensor 2 (bank 1)	5.	Heated oxygen sensor 2 (bank 2)	6.	Exhaust gas temperature sensor (bank 2)
