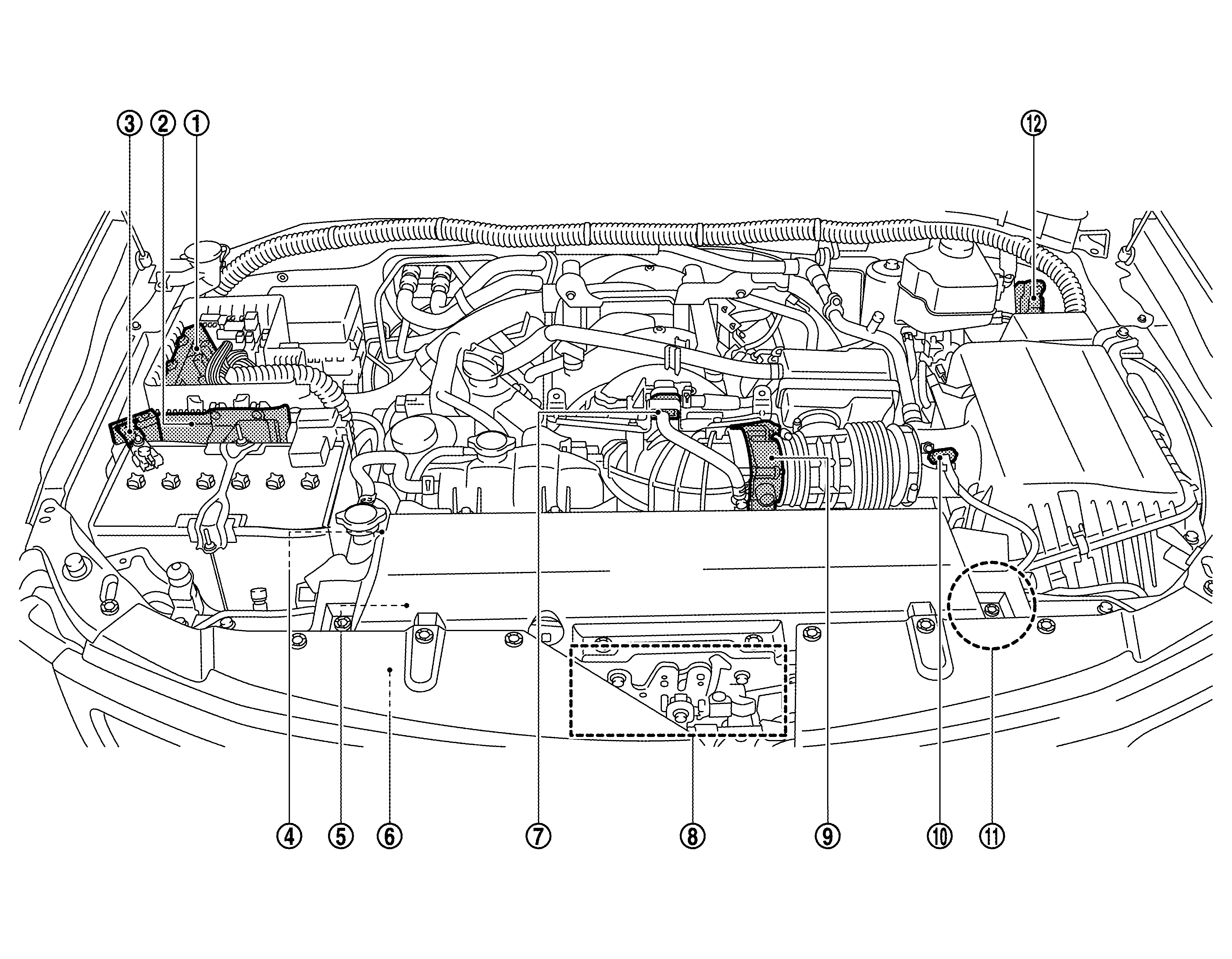

Engine Room Compartment

Courtesy of NISSAN NORTH AMERICA, INC.

1.	IPDM E/R	2.	ECM	3.	Battery current sensor (with battery temperature sensor)
4.	Power steering pressure sensor	5.	Alternator	6.	Refrigerant pressure sensor
7.	EVAP canister purge volume control solenoid valve	8.	Electric-viscous fan assembly	9.	Electric throttle control actuator
10.	Mass air flow sensor (with intake air temperature sensor)	11.	Engine coolant temperature sensor 2	12.	VVEL control module
