Component Description
Electrically-controlled cooling fan coupling is integrated with a fan coupling, fan coupling driver, and fan speed sensor, mounted to the fan pulley, and actuated by the drive belt to rotate the cooling fan at a speed suitable for a driving condition.
|

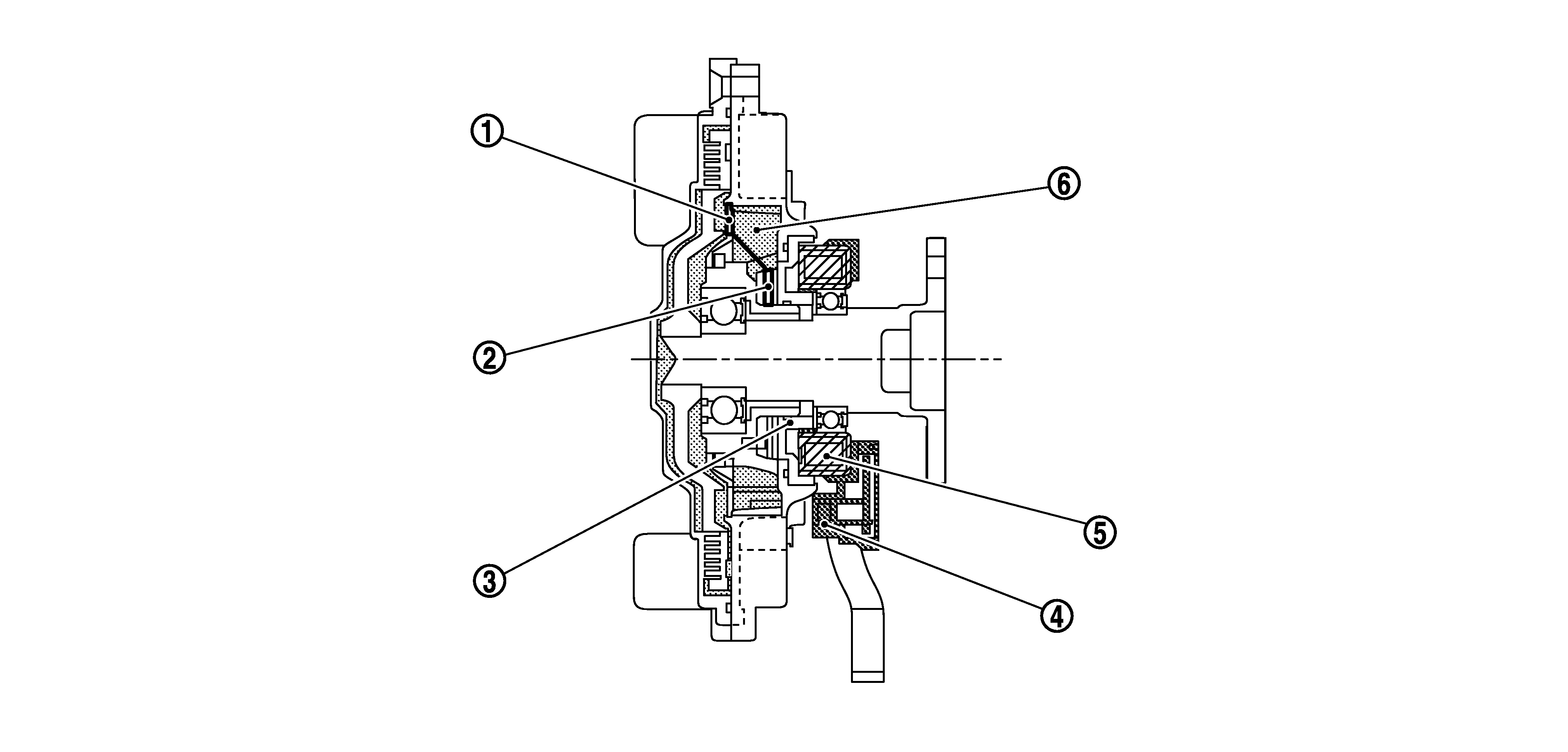

1. |
Valve |
2. |
Armature |
3. |
Magnet Loop Element |
|
4. |
Fan speed sensor |
5. |
Coil |
6. |
Silicon oil |
