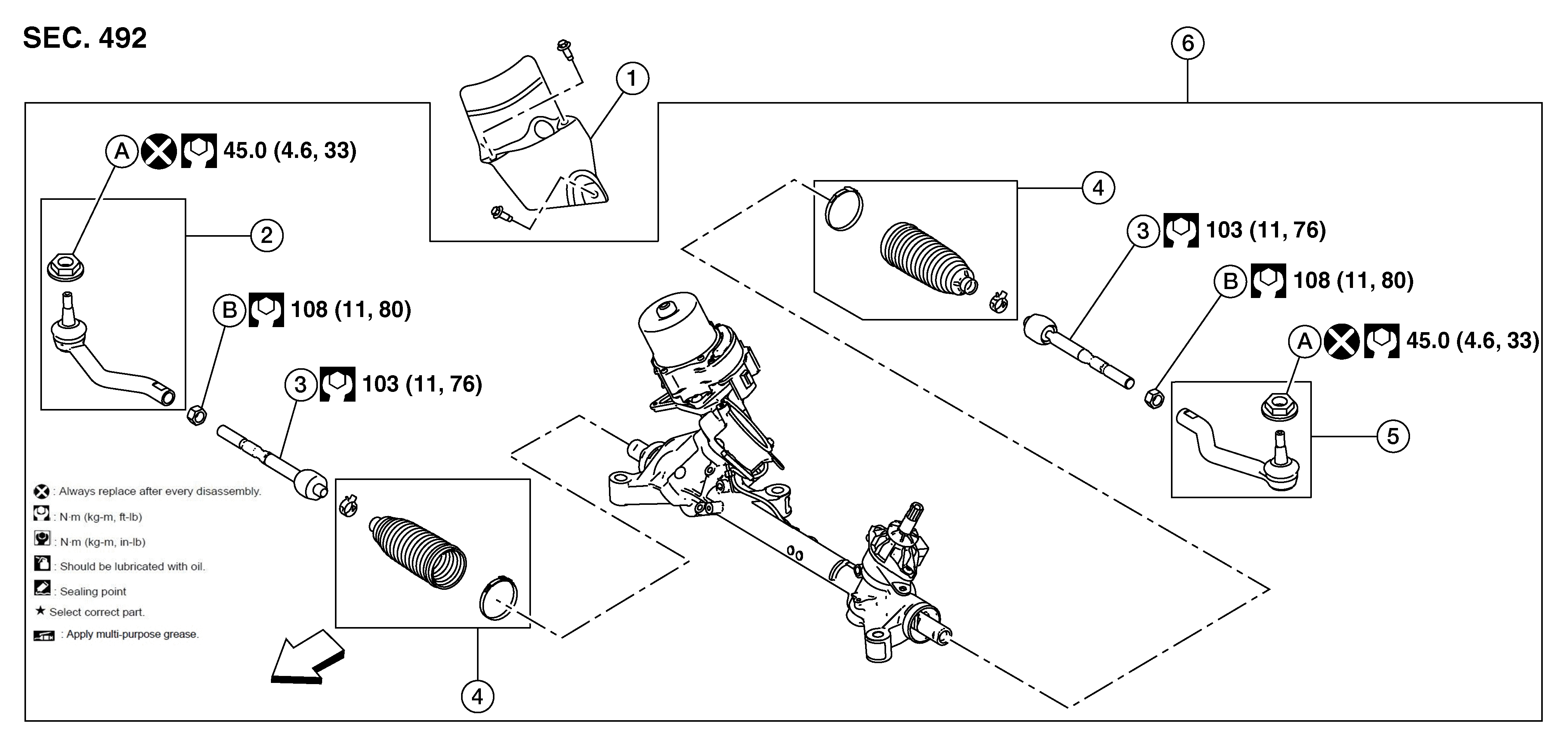

Exploded View
Courtesy of NISSAN
| 1. |
Heat shield |
2. |
Outer socket (RH) |
3. |
Inner socket |
| 4. |
Boot |
5. |
Outer socket (LH) |
6. |
Steering gear and linkage assembly |
| A. |
Outer socket nut |
B. |
Inner socket lock nut |
 |
Front |
