Removal and Installation

Remove shift selector finisher. Refer to Exploded View .

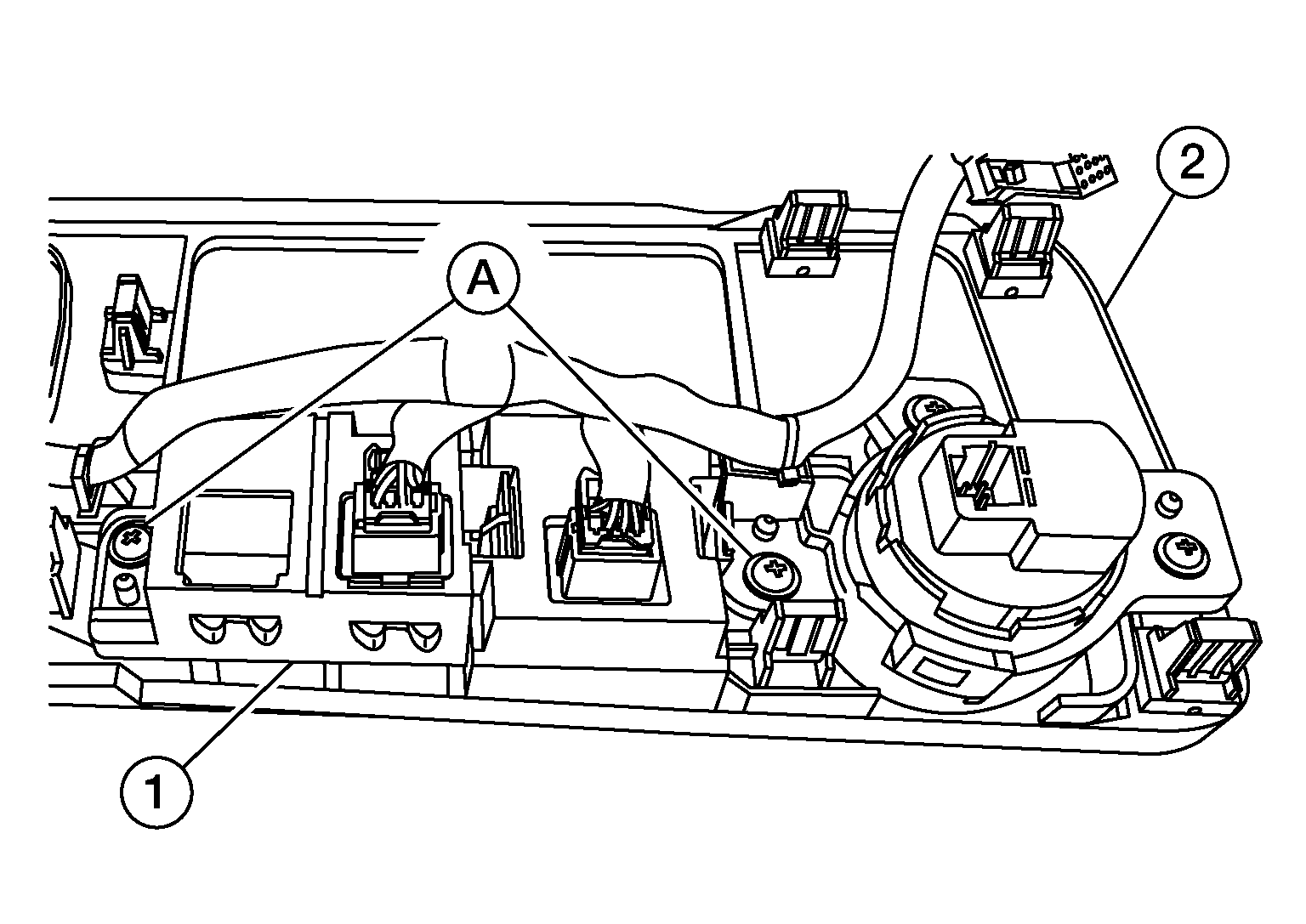

Remove the screws (A) and remove switch carrier (1) from shift selector finisher (2).

Courtesy of NISSAN
Disconnect harness connector from the stop/start off switch.

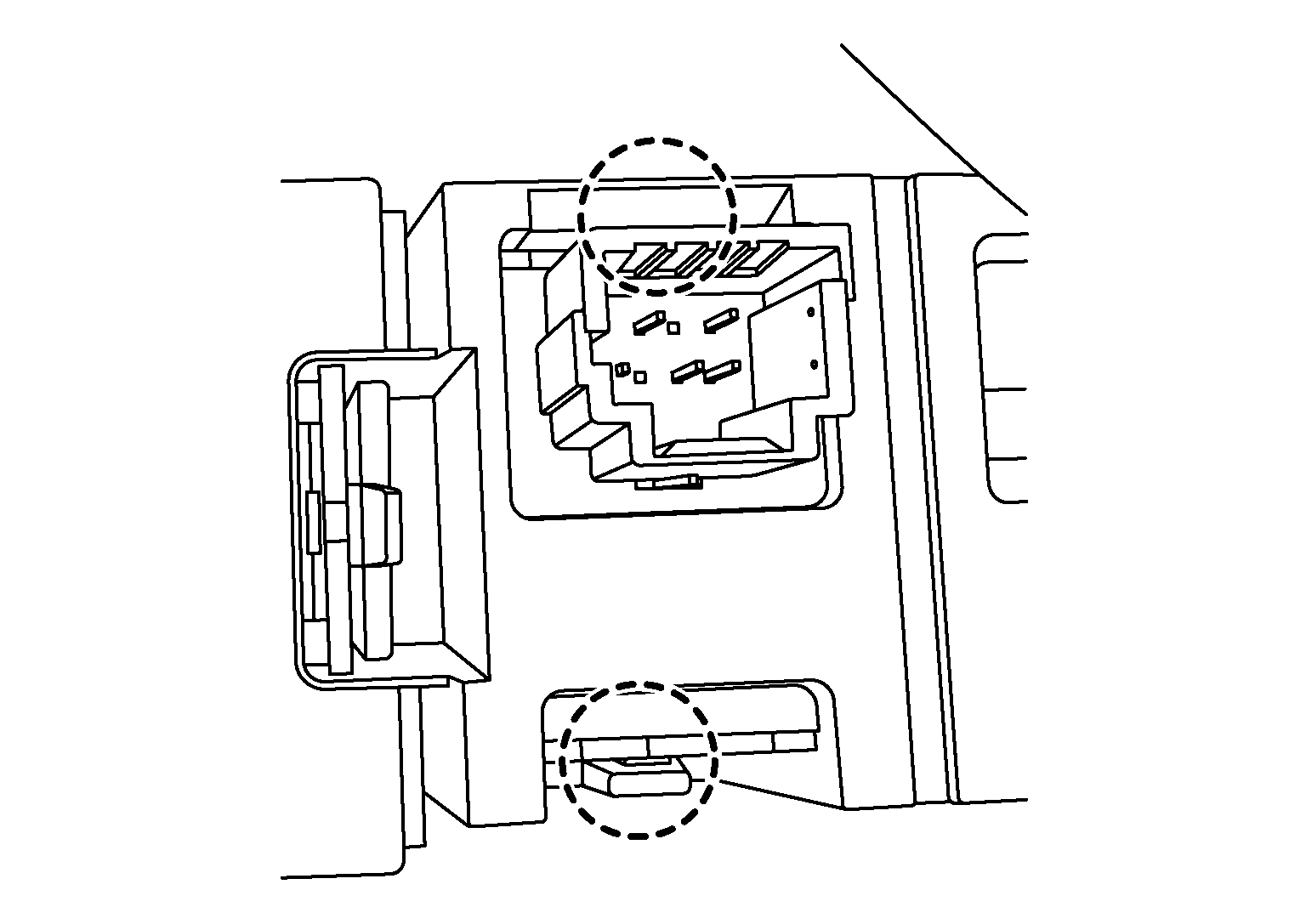

Using a suitable tool, release pawls and remove stop/start off switch.

Courtesy of NISSAN

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
