Exploded View

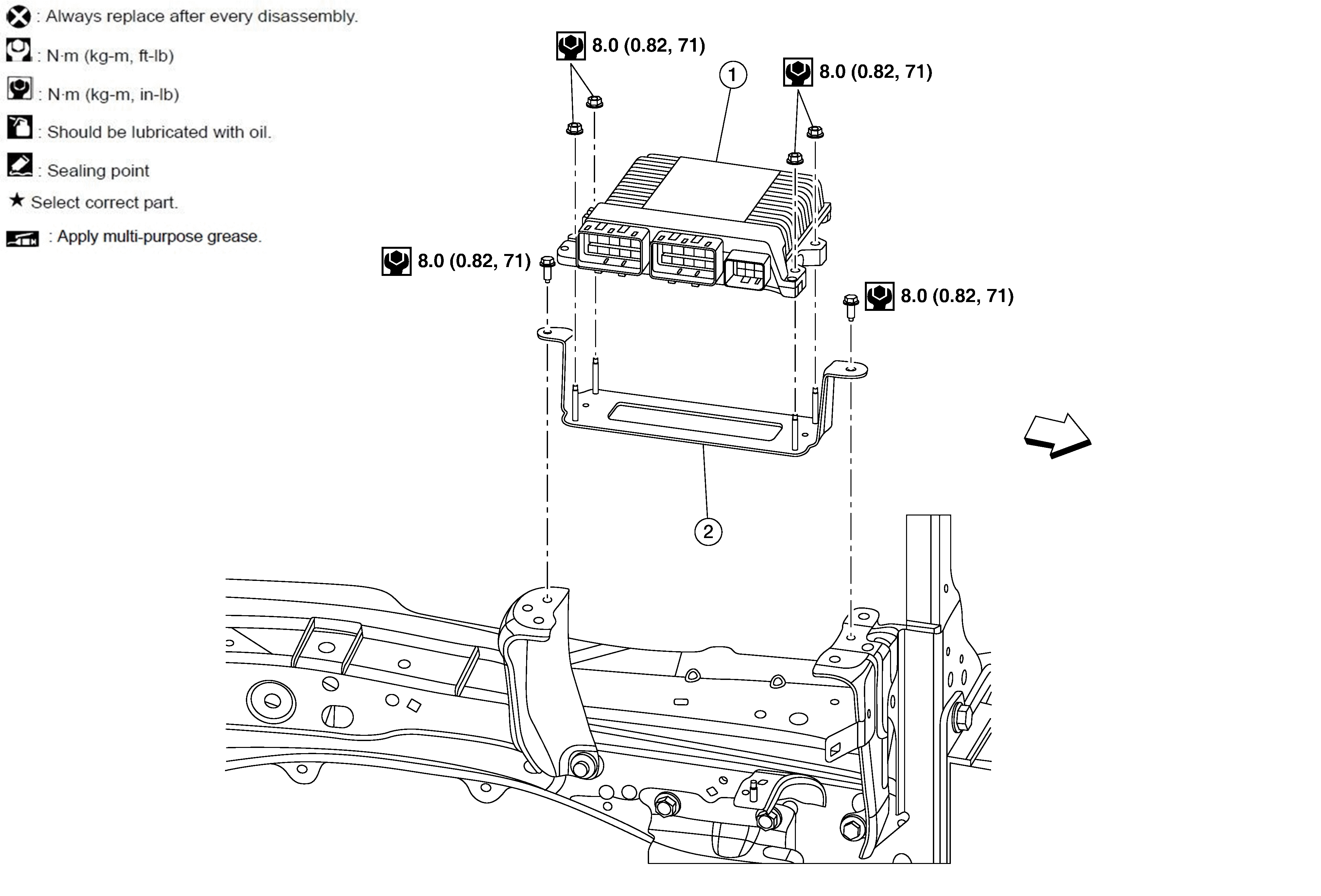

Fig 1: ECM With Torque Specifications
GNSDB45603Courtesy of NISSAN
1. ECM 2. ECM bracket SYMBOL Front
