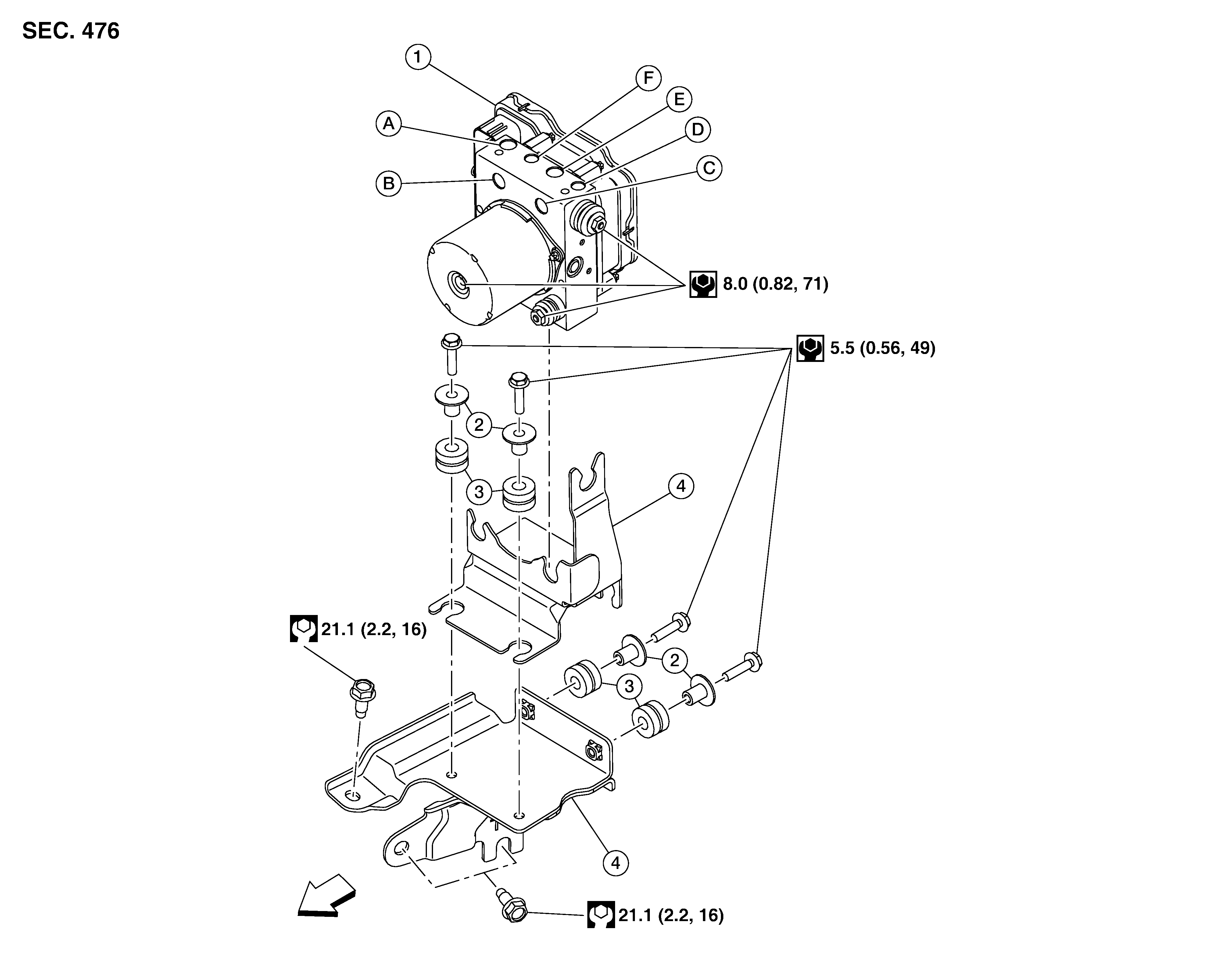

Exploded View

Courtesy of NISSAN

1.	ABS actuator and electric unit (control unit)	2.	Insulator collar	3.	Rubber bushing
4.	Bracket	A.	To rear RH brake caliper. Refer to Exploded View .	B.	From master cylinder secondary side. Refer to Exploded View .
C.	From master cylinder primary side. Refer to Exploded View .	D.	To rear LH brake caliper. Refer to Exploded View .	E.	To front RH brake caliper. Refer to Exploded View .
F.	To front LH brake caliper. Refer to Exploded View .		Front
