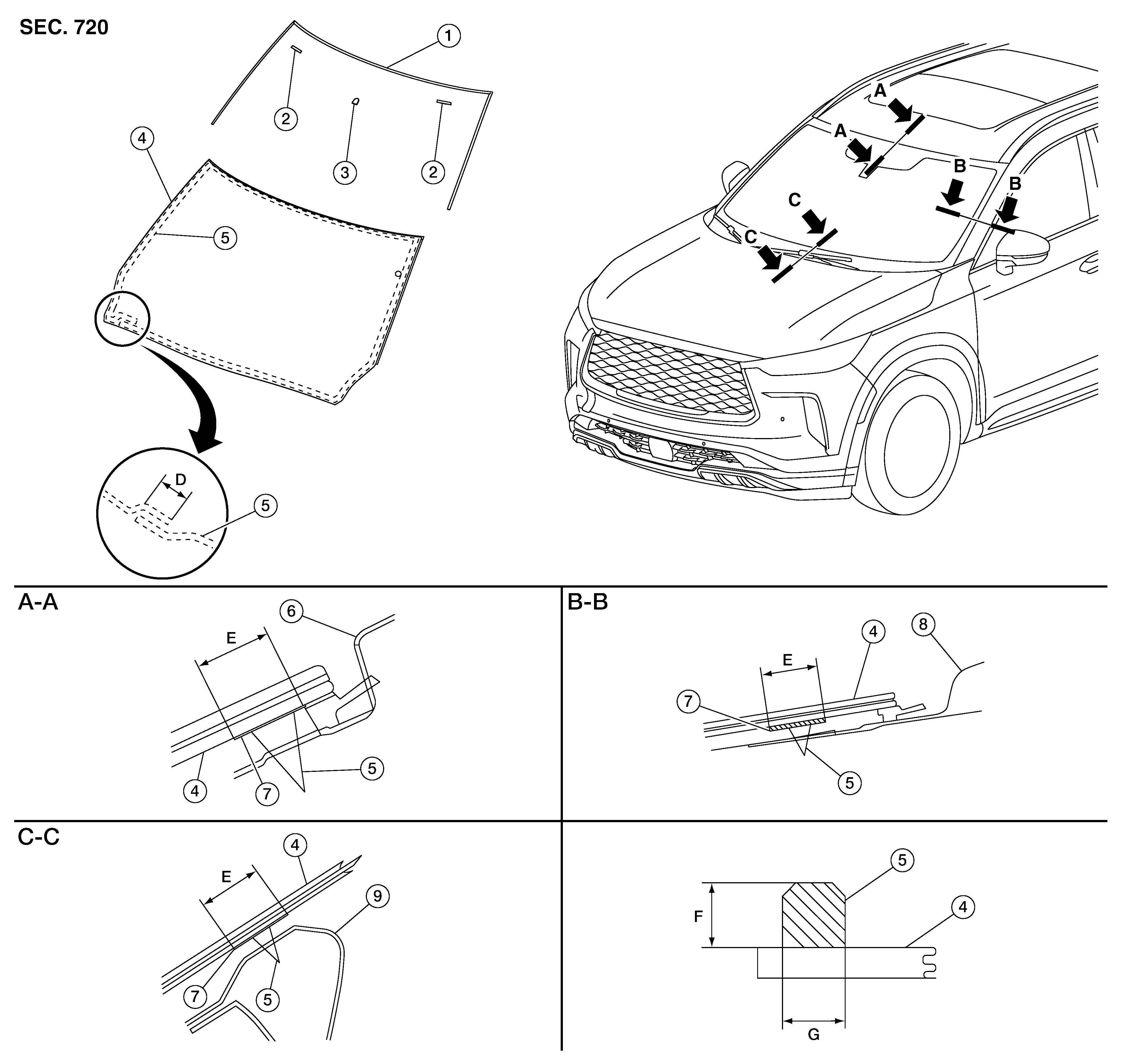

Exploded View
 Courtesy of NISSAN
|
| 1. |
Windshield glass molding |
2. |
Spacer |
3. |
Mirror base |
| 4. |
Windshield glass |
5. |
Adhesive |
6. |
Roof |
| 7. |
Glass primer |
8. |
Body side outer |
9. |
Cowl top |
| D. |
30 mm (1.18 in) |
E. |
16 mm (0.63 in) |
F. |
12 mm (0.47 in) |
| G. |
7 mm (0.28 in) |
