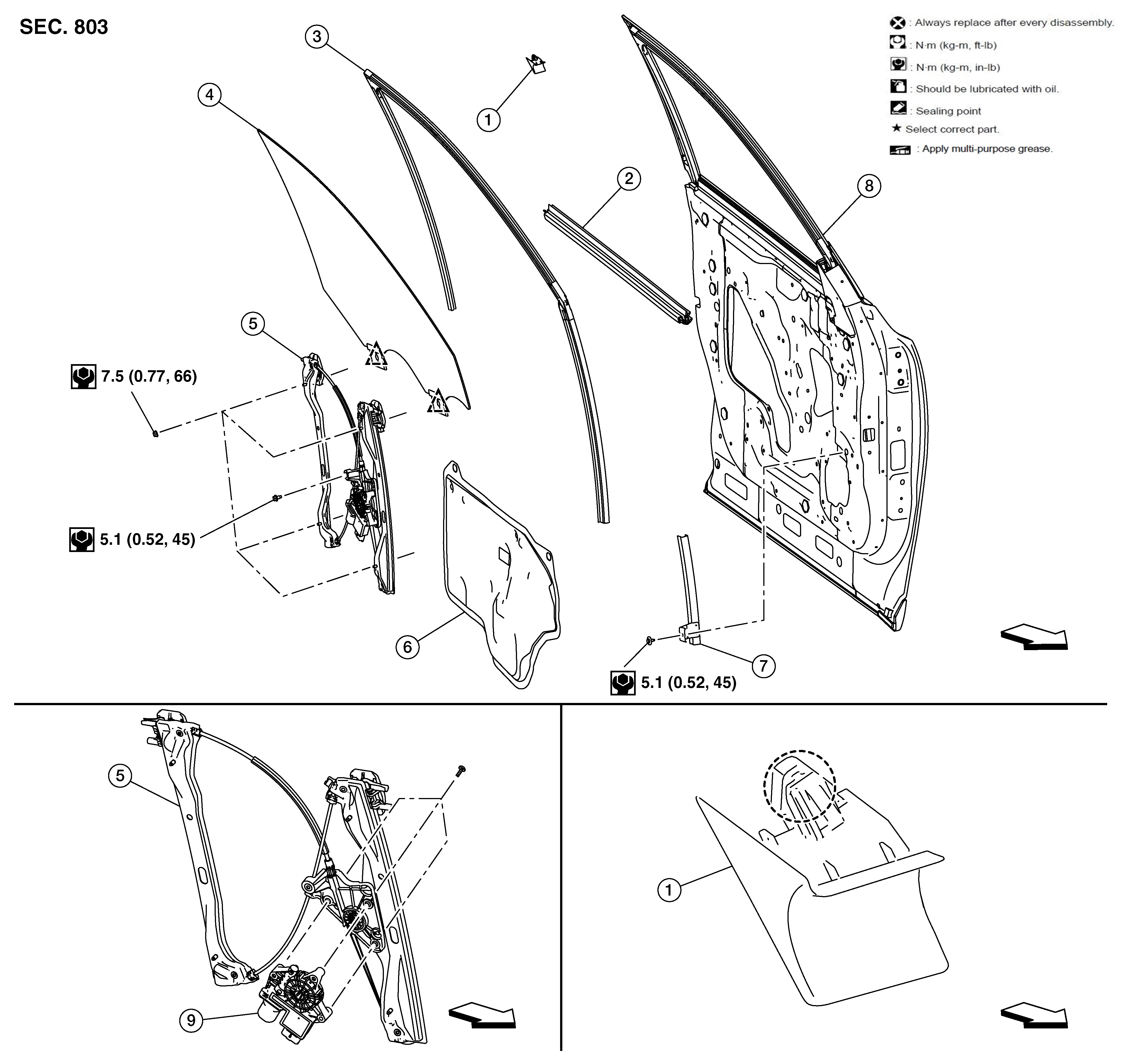

Exploded View
Courtesy of NISSAN
| 1. |
Front door sash cover inner |
2. |
Door inside seal |
3. |
Door glass rubber run |
| 4. |
Front door glass |
5. |
Front door regulator |
6. |
Vapor barrier |
| 7. |
Door glass front run |
8. |
Door panel |
9. |
Front power window motor |
 |
Pawl |
 |
Clip |
: |
Front |
