Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

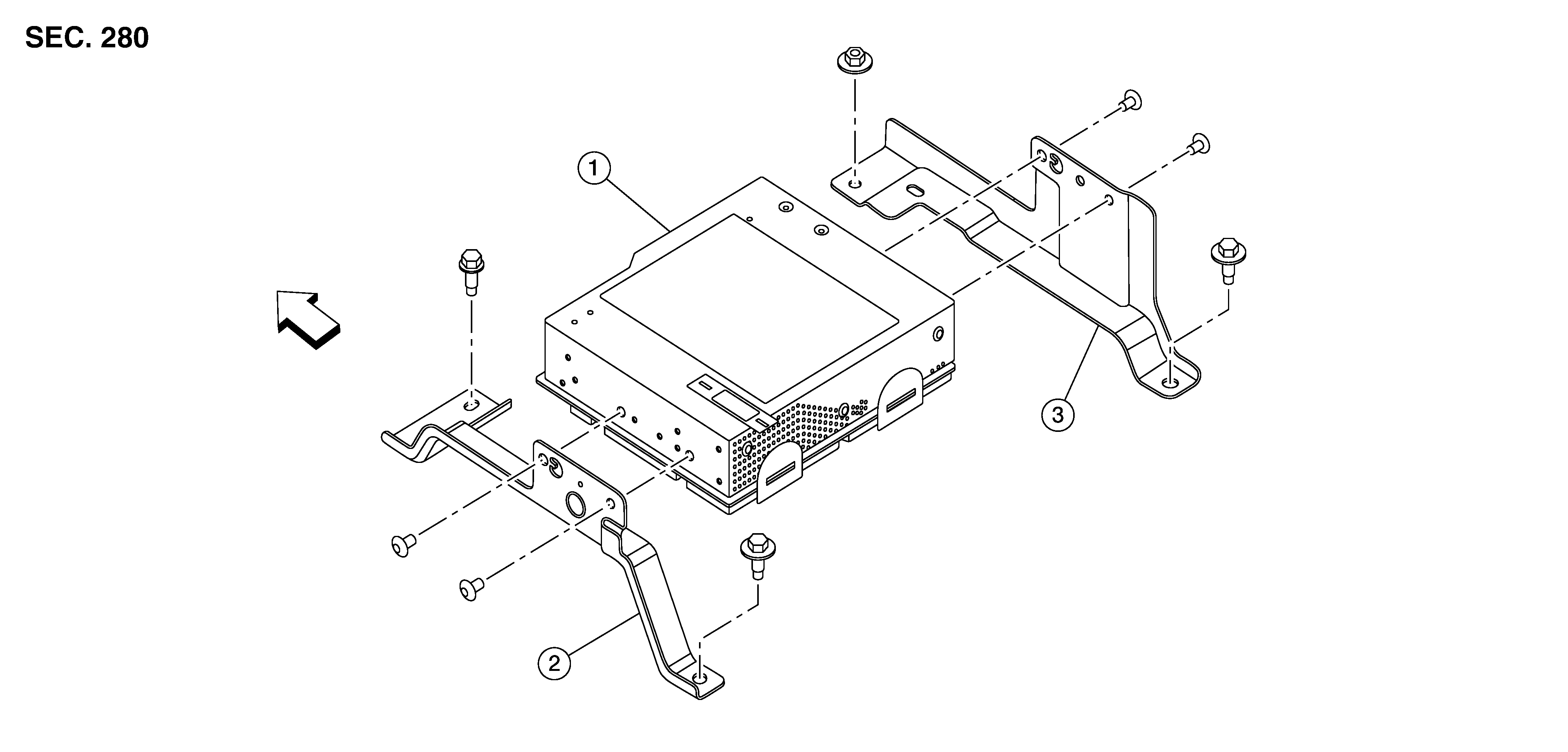

Exploded View
Courtesy of NISSAN
1.
AV control unit
2.
AV control unit bracket (LH)
3.
AV control unit bracket (RH)
Front
