Multifunction Switch

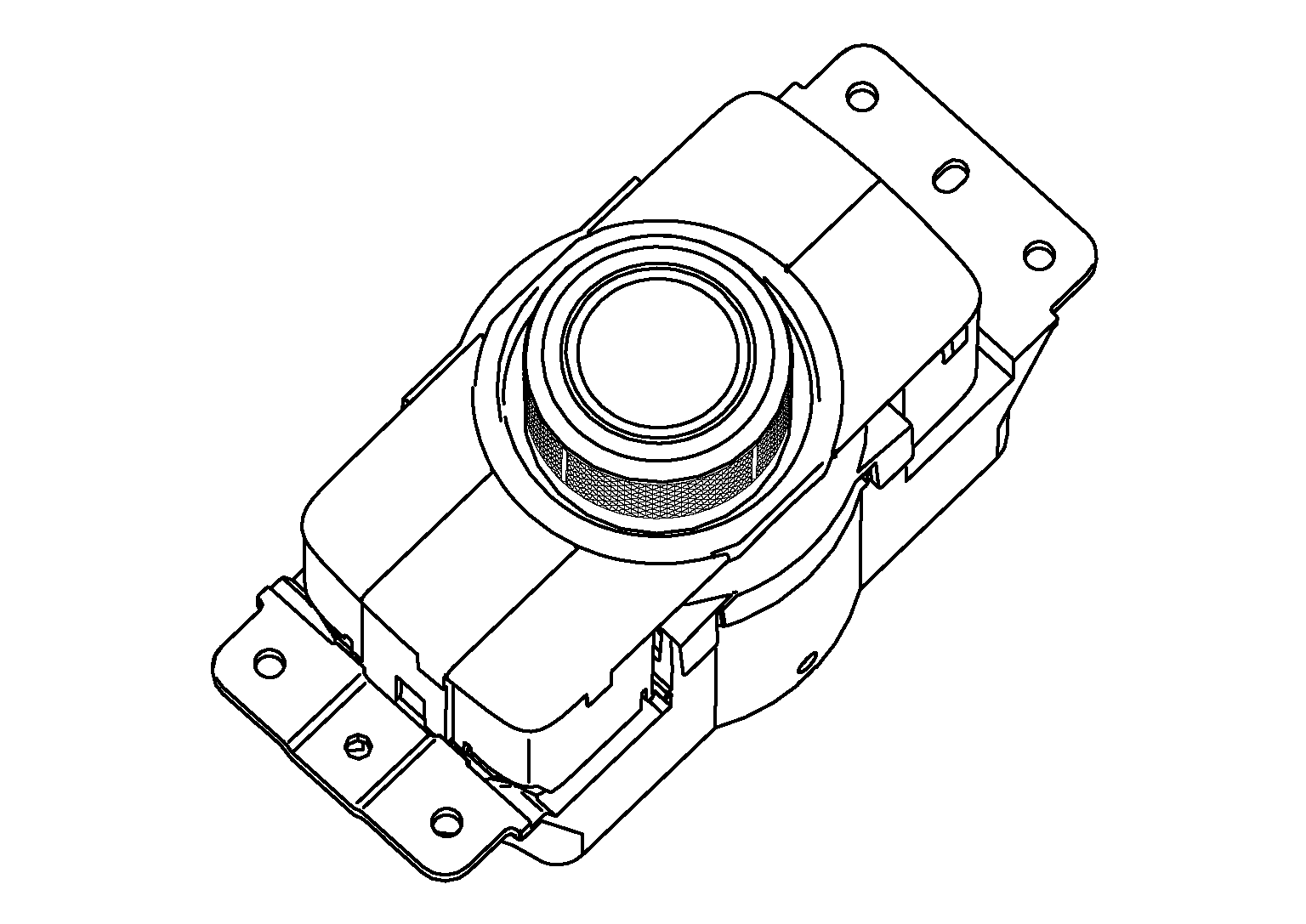

Multifunction switch is located on the center console.
Courtesy of NISSAN
Multifunction switch is hard wired to the integral switch.
Switch operation signals are transmitted to the AV control unit by way of the integral switch via AV communication.
