Horn
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

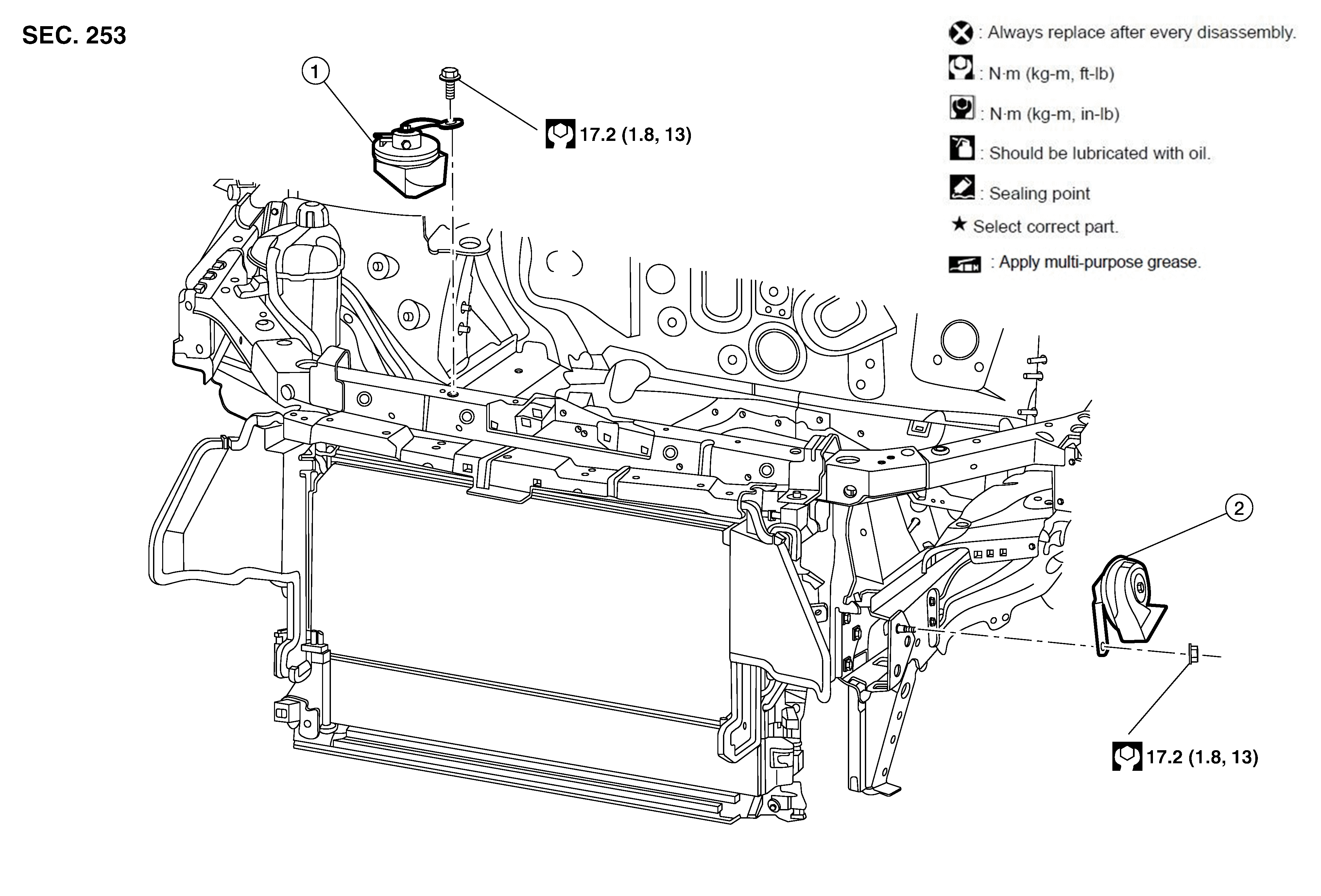

Fig 1: Horn With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Horn (LOW)
2.
Horn (HIGH)
