Exploded View

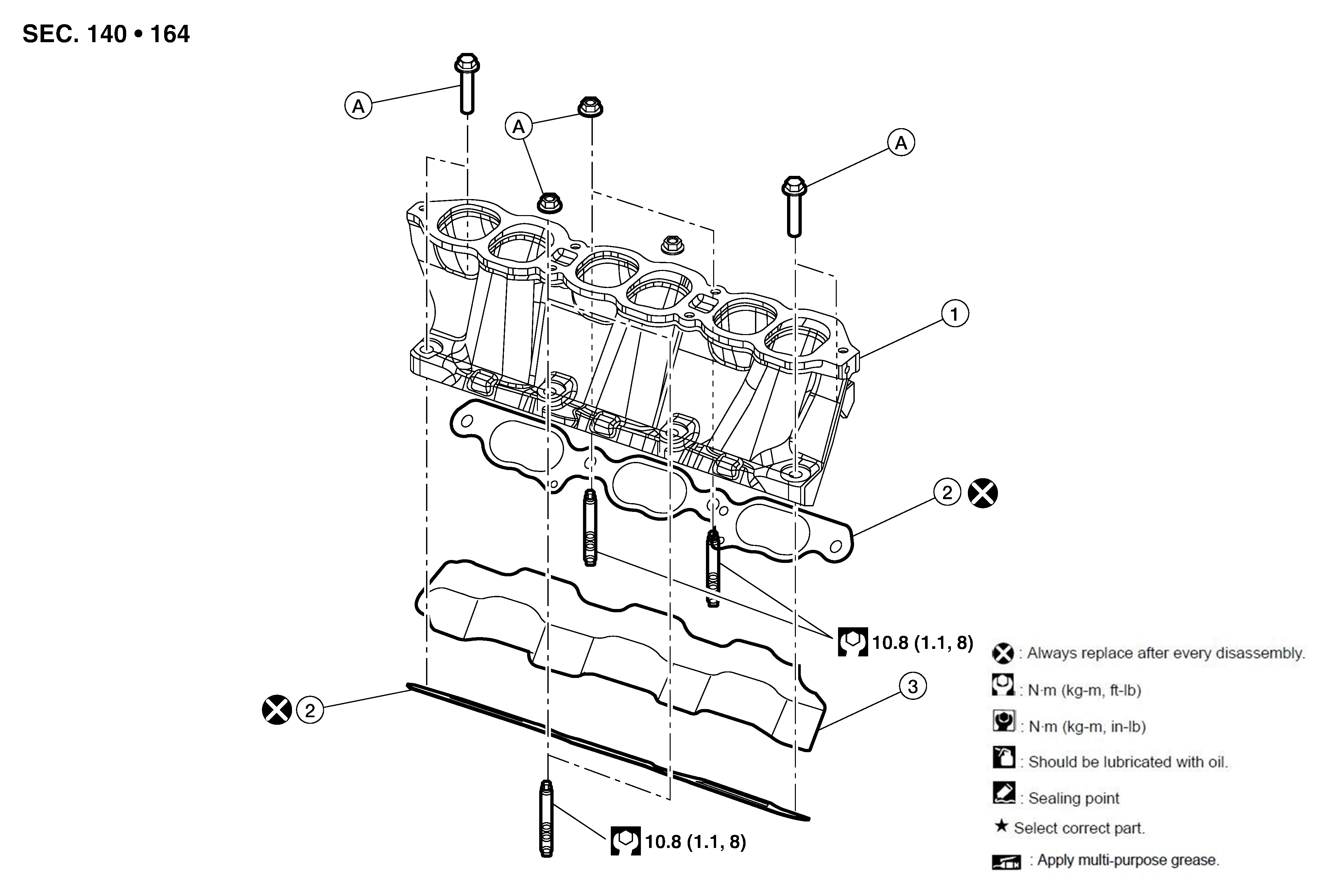

Fig 1: Intake Manifold With Torque Specifications
GNSDB18419Courtesy of NISSAN NORTH AMERICA, INC.

1.

Intake manifold

2.

Intake manifold gasket

3.

Insulator

A.

Refer to INSTALLATION .
