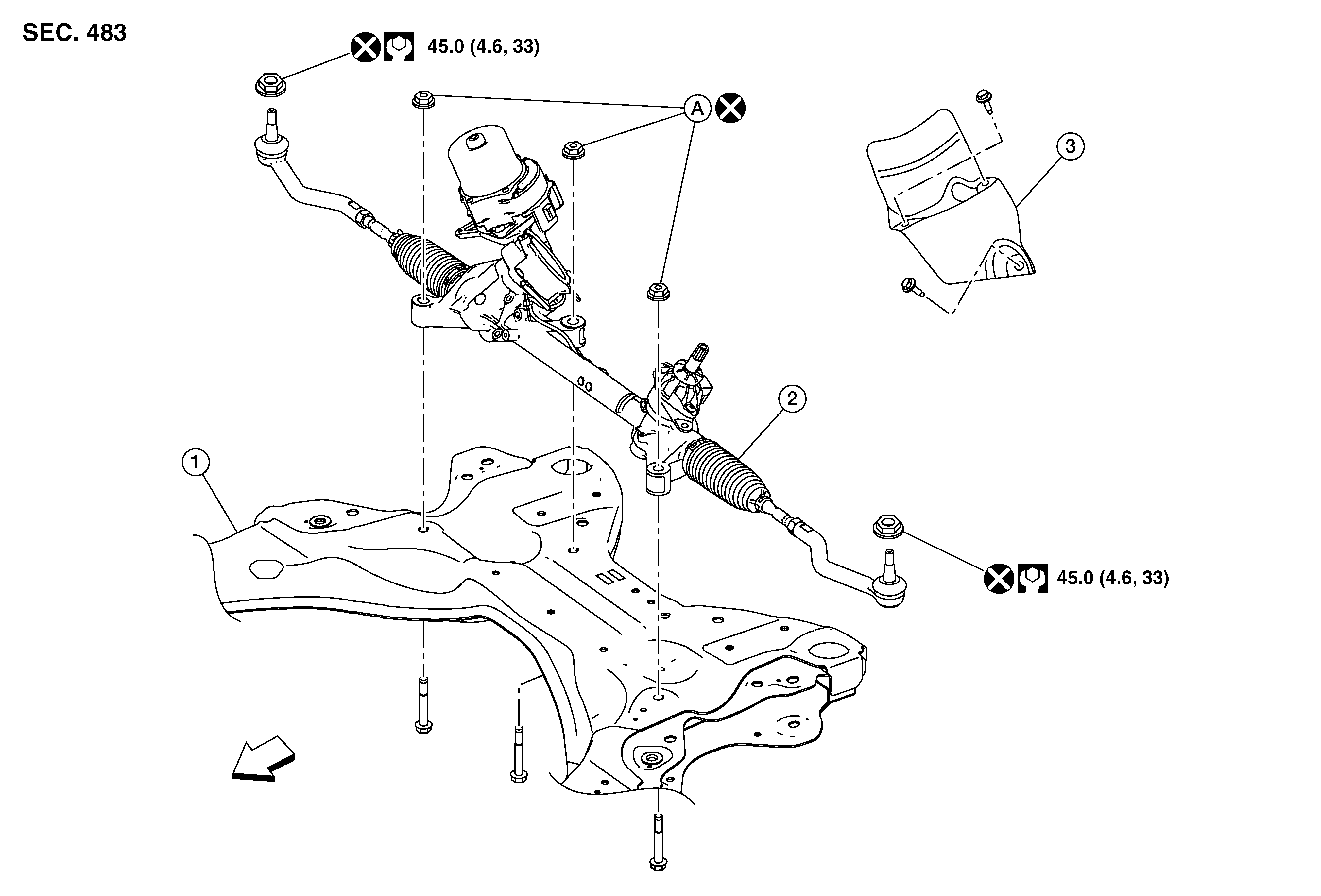

Exploded View

GNSDB19715Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Steering gear and linkage assembly

3.

Heat shield

A.

Refer to Installation .

SYMBOL

Front
