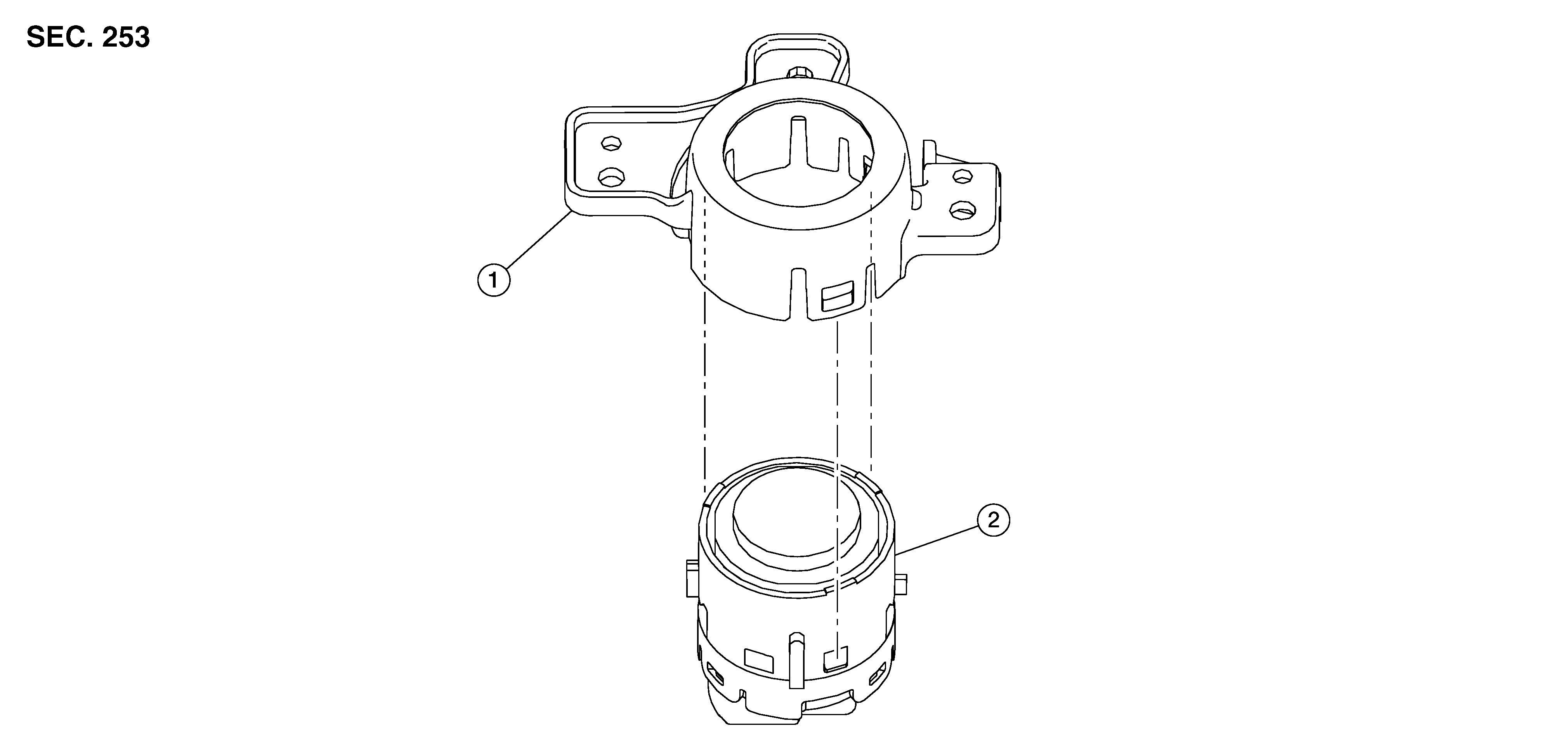

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Push-button ignition switch housing
2.
Push-button ignition switch
