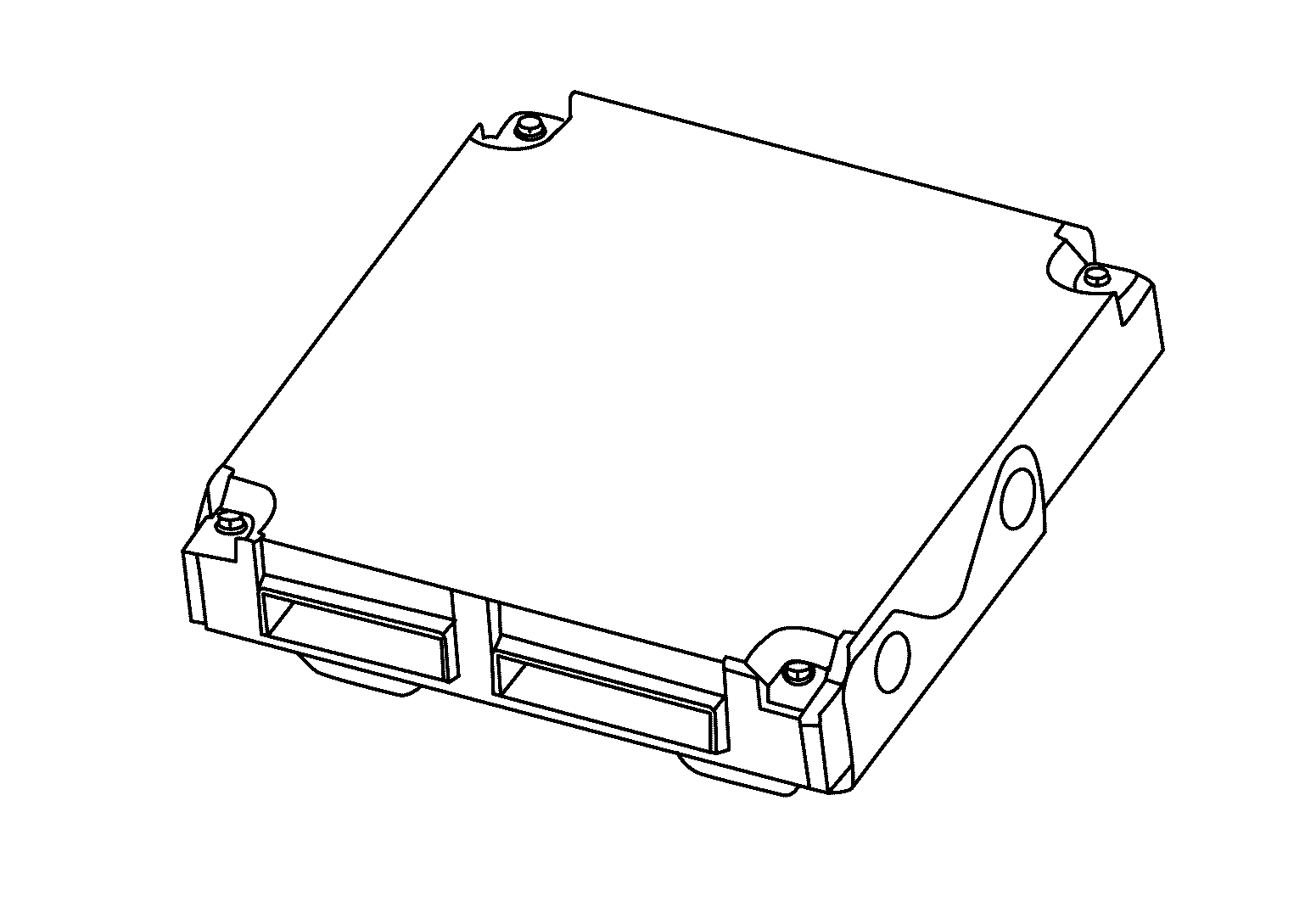

Around View Monitor Control Unit
- The around view monitor control unit is installed in the luggage compartment behind the luggage side finisher RH.
- Necessary signals are transmitted/received to/from control unit via AV and CAN communication.
- Camera image signals received from each camera are converted/synthesized in the around view monitor control unit and transmitted to the AV control unit. AV control unit transmits image signals to display unit.
- Vehicle width guide lines, predicted course line, vehicle front guiding line and vehicle side line, tire icon, and vehicle icon are rendered with the around view monitor control unit and combined with camera image.
