Switch Name And Function

WARNING: This page is about a different car, the 2021 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

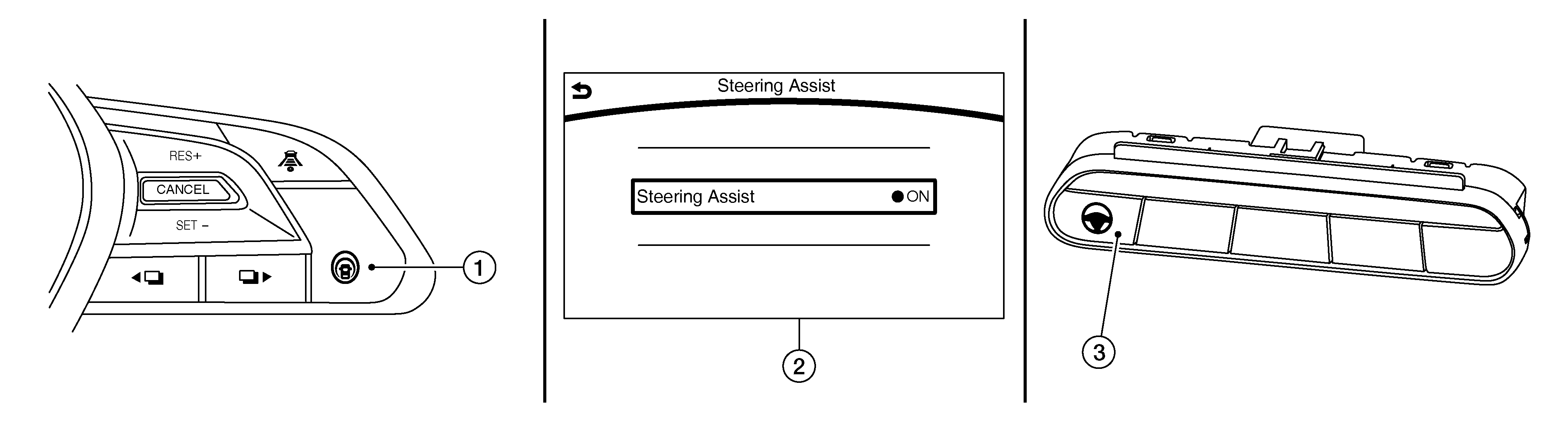

GNSALOIA0071Z-071Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

ProPILOT switch

ProPILOT switch to activate the system (Press for less than 1.5 seconds)

SYMBOL

ProPILOT setting screen

(Combination meter setting screen)

The steering wheel assistance function can be turned ON/OFF.

SYMBOL

Steering assist switch

The steering wheel assistance function can be turned ON/OFF.
