Steering Angle Sub Control Module Connector End View (E31)
Connector Types:
P01FB-A

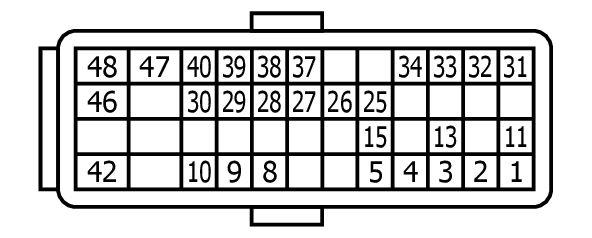

Fig 1: Terminal-side
Courtesy of EWD
Fig 2: Harness-side
Courtesy of EWD
Terminal No.
Color of Wire
Signal Name (Specification)
39
B
GROUND
