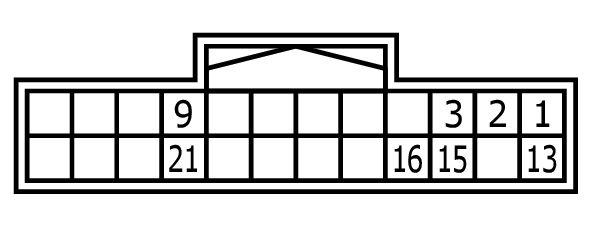

ADAS Control Unit 2 Connector End View (B54)
Connector Types: TH24FB-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | BR | WARNING BUZZER SIGNAL |
| 2 | B | GROUND |
| 3 | Y | CHASSIS CAN COMMUNICATION-L |
| 9 | L | ITS CAN COMMUNICATION-H |
| 13 | P | WARNING BUZZER SIGNAL GROUND |
| 15 | L | CHASSIS CAN COMMUNICATION-H |
| 16 | W/G | IGNITION POWER SUPPLY |
| 21 | Y | ITS CAN COMMUNICATION-L |
