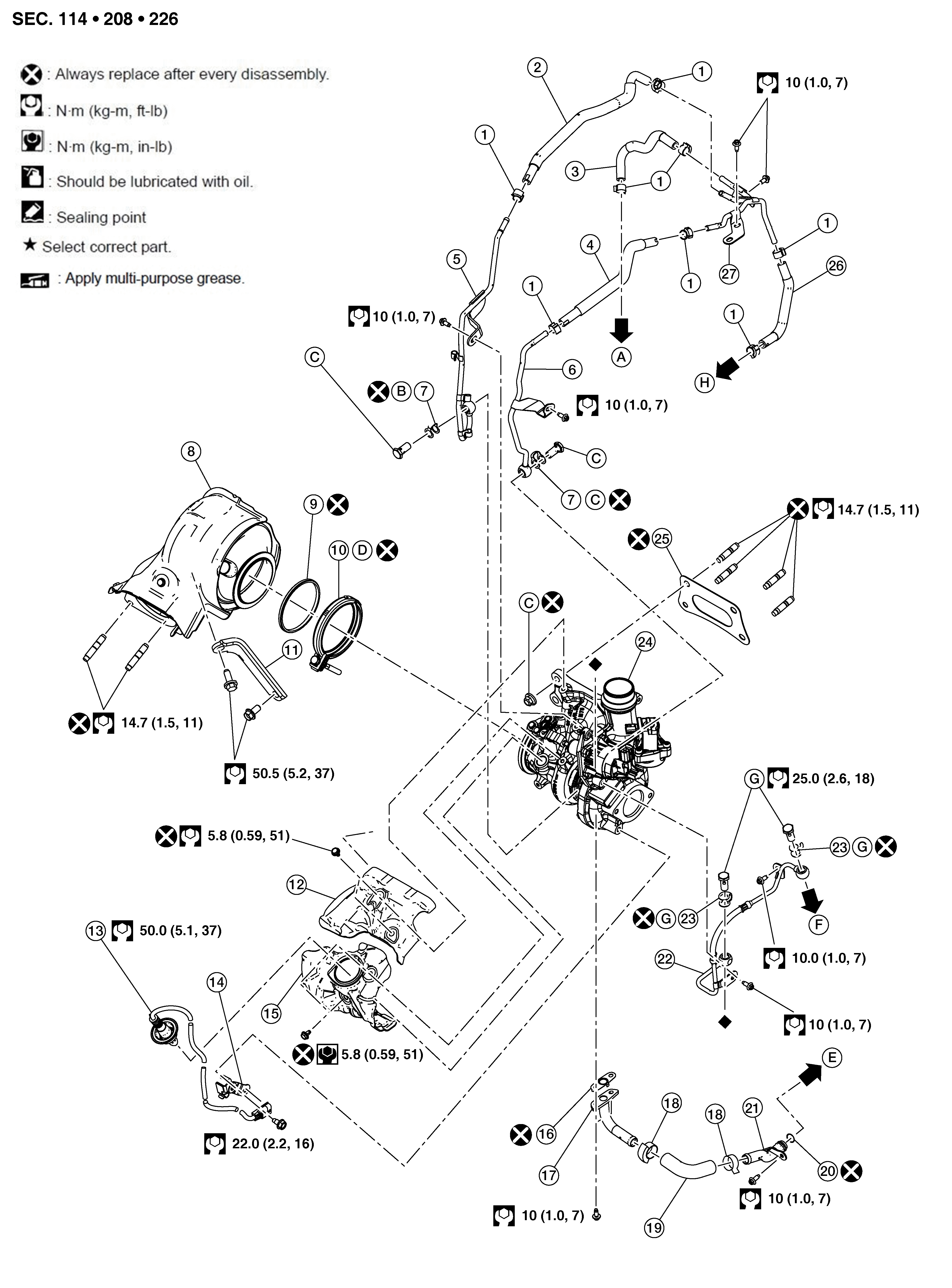

Exploded View
|
1. |
Clamp |
2. |
Turbocharger water inlet hose A |
3. |
Turbocharger water inlet hose B |
|
4. |
Turbocharger water outlet hose A |
5. |
Turbocharger water inlet pipe |
6. |
Turbocharger water outlet pipe |
|
7. |
Copper sealing washer |
8. |
Catalyst |
9. |
Gasket |
|
10. |
V-band clamp |
11. |
Catalyst support bracket |
12. |
Turbocharger heat shield (upper) |
|
13. |
Air fuel ratio (A/F) sensor-1 |
14. |
Air fuel ratio (A/F) sensor-1 harness bracket |
15. |
Turbocharger heat shield (lower) |
|
16. |
Turbocharger oil drain line A gasket |
17. |
Turbocharger oil drain line A |
18. |
Clamp |
|
19. |
Turbocharger oil drain hose |
20. |
O-ring |
21. |
Turbocharger oil drain line B |
|
22. |
Turbocharger oil supply line |
23. |
Copper sealing washer |
24. |
Turbocharger |
|
25. |
Turbocharger gasket |
26. |
Turbocharger water outlet hose B |
27. |
Turbocharger water pipe |
|
A. |
To electronic throttle control actuator. Refer to Exploded View . |
B. |
Refer to Removal and Installation . |
C. |
Refer to Removal and Installation . |
|
D. |
Refer to Removal and Installation . |
E. |
To cylinder block |
F. |
To cylinder head. Refer to Exploded View . |
|
G. |
Refer to Removal and Installation . |
H. |
To water inlet pipe. Refer to Exploded View . |
||
