Av Control Unit Connector End View (M501)

Connector Types:  USCAR-30

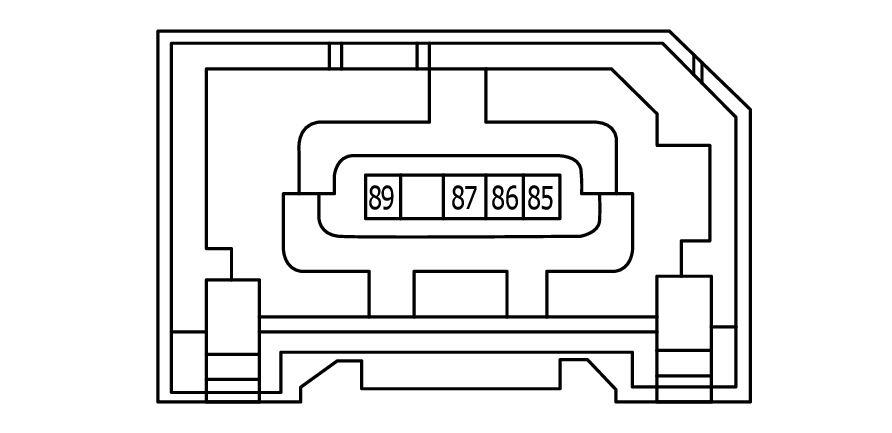

Fig 1: Terminal-side
GNSW70047Courtesy of NISSAN NORTH AMERICA

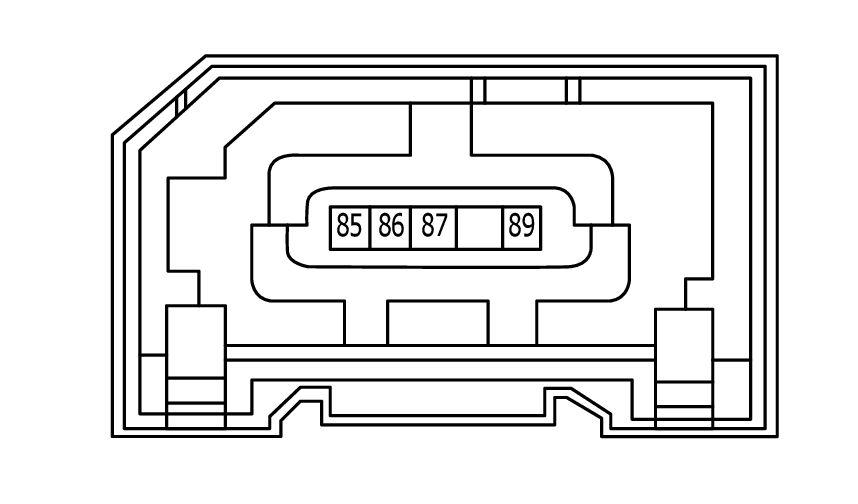

Fig 2: Harness-side
GNSW69256Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
85 - USB V BUS SIGNAL
86 - USB D- SIGNAL
87 - USB D+ SIGNAL
89 - USB GROUND
