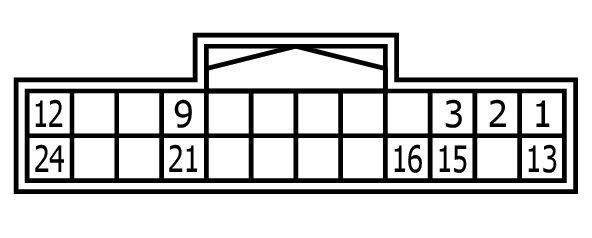

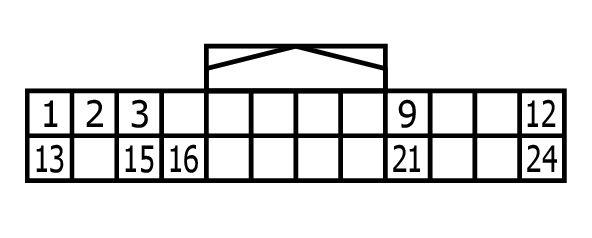

ADAS Control Unit 2 Connector End View (B169)
Connector Types: TH24FB-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | R | WARNING BUZZER SIGNAL |
| 2 | B | GROUND |
| 3 | R | CHASSIS COMMUNICATION-L |
| 9 | L | ITS COMMUNICATION-H |
| 12 | R | STEERING VIBRATION MOTOR SIGNAL |
| 13 | G | WARNING BUZZER SIGNAL GROUND |
| 15 | L | CHASSIS COMMUNICATION-H |
| 16 | G | IGNITION POWER SUPPLY |
| 21 | P | ITS COMMUNICATION-L |
| 24 | L | STEERING VIBRATION MOTOR SIGNAL GROUND |
