Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument lower panel LH. Refer to Removal and Installation .

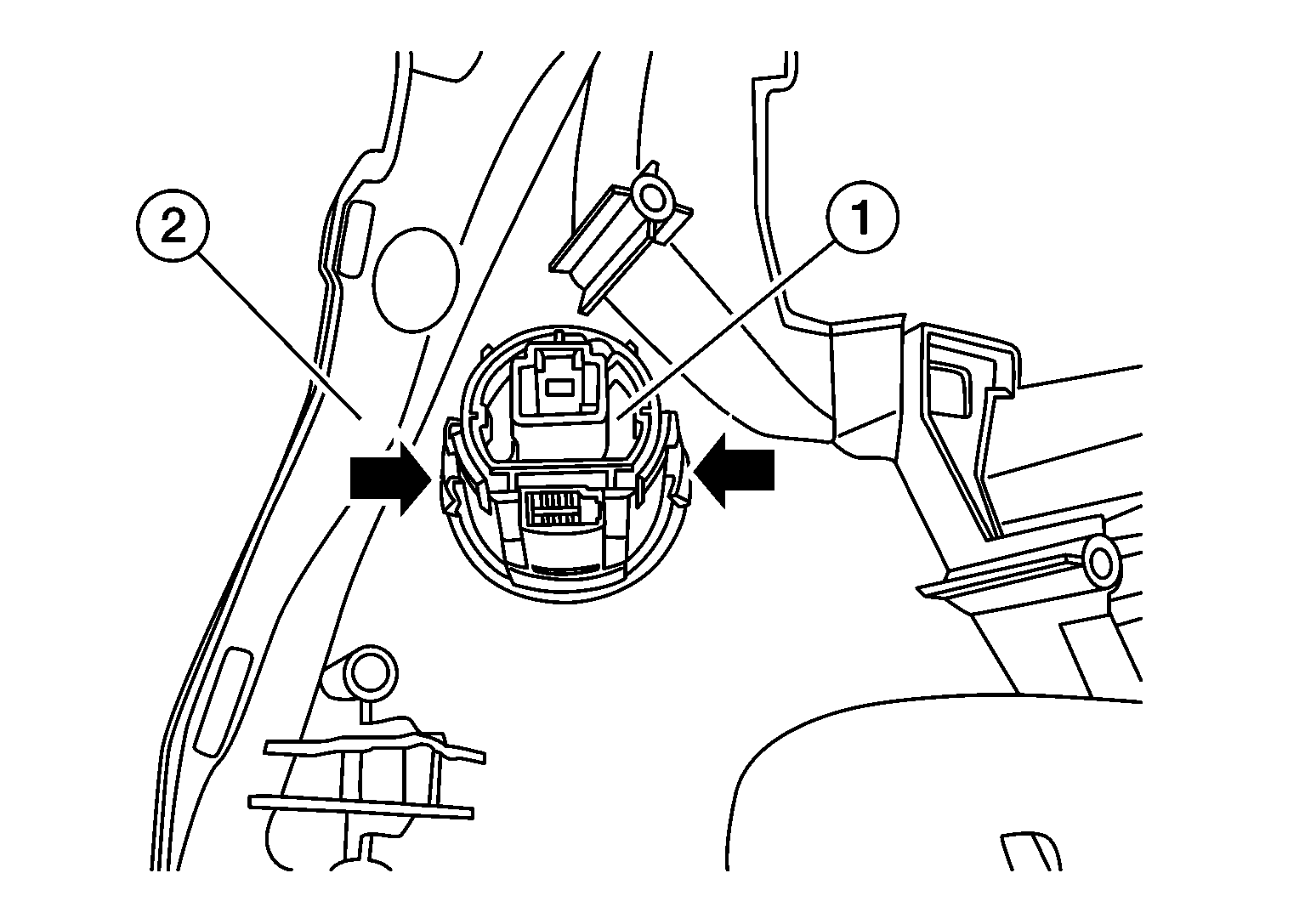

  2. Release the pawl (SYMBOL ) on each side of NATS antenna amp (1) and remove from the instrument pad (LH) (2).
    GNSDB120628Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the pawl on each side and remove the push-button ignition switch from the NATS antenna amp.
