Circuit Diagram

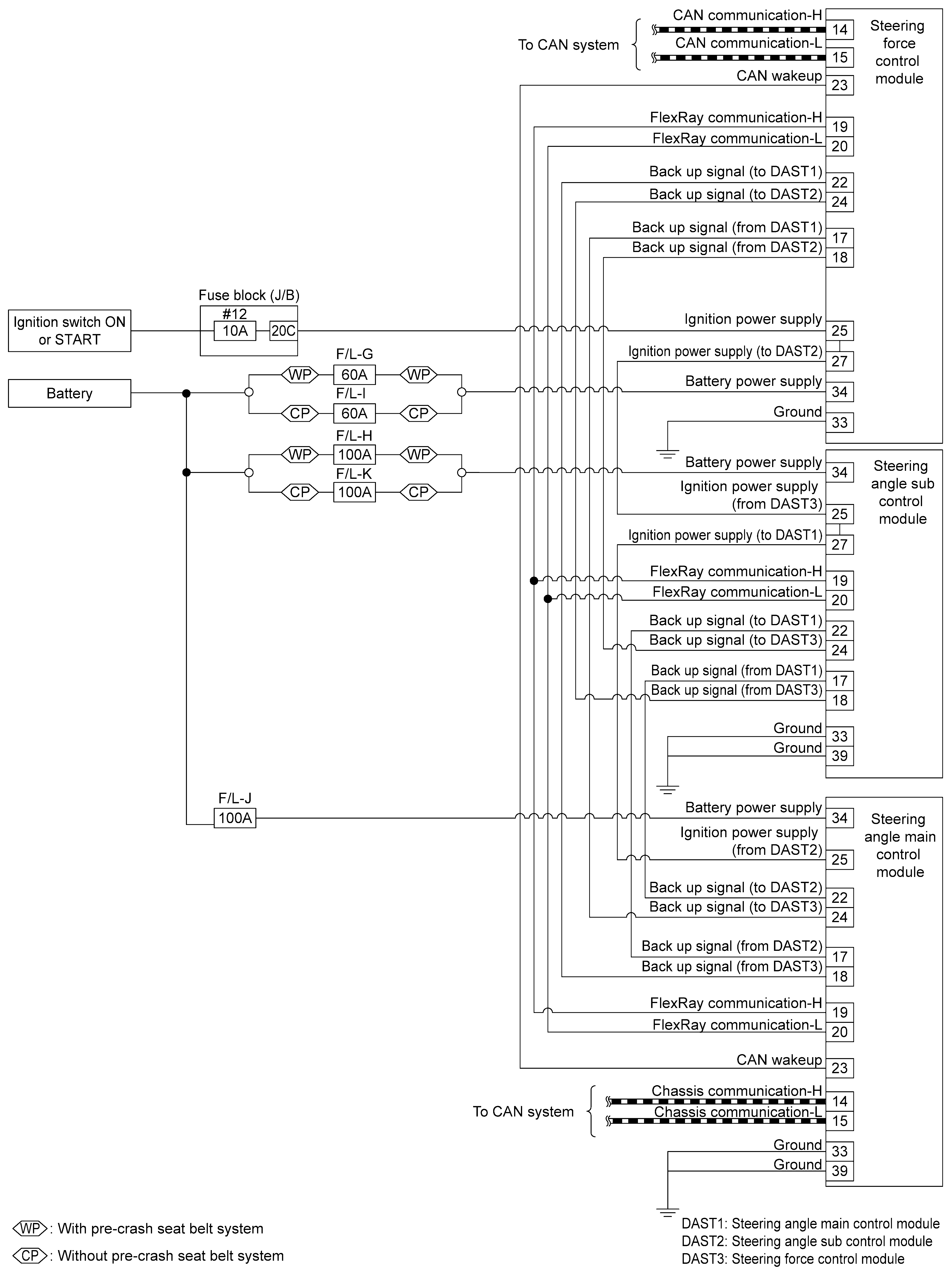

GNSILL0278940-940Courtesy of NISSAN NORTH AMERICA, INC.

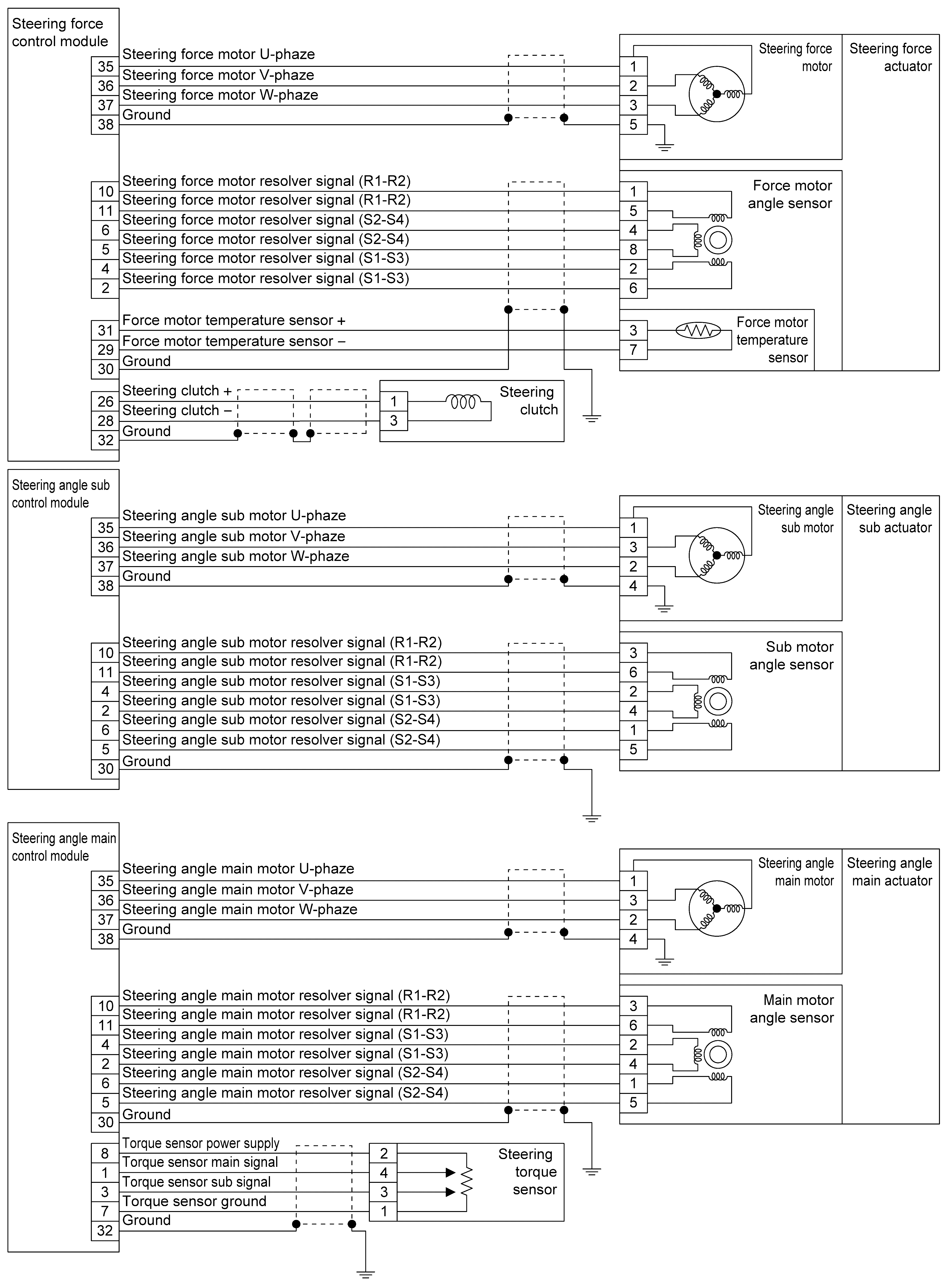

GNSILL0267138-138Courtesy of NISSAN NORTH AMERICA, INC.

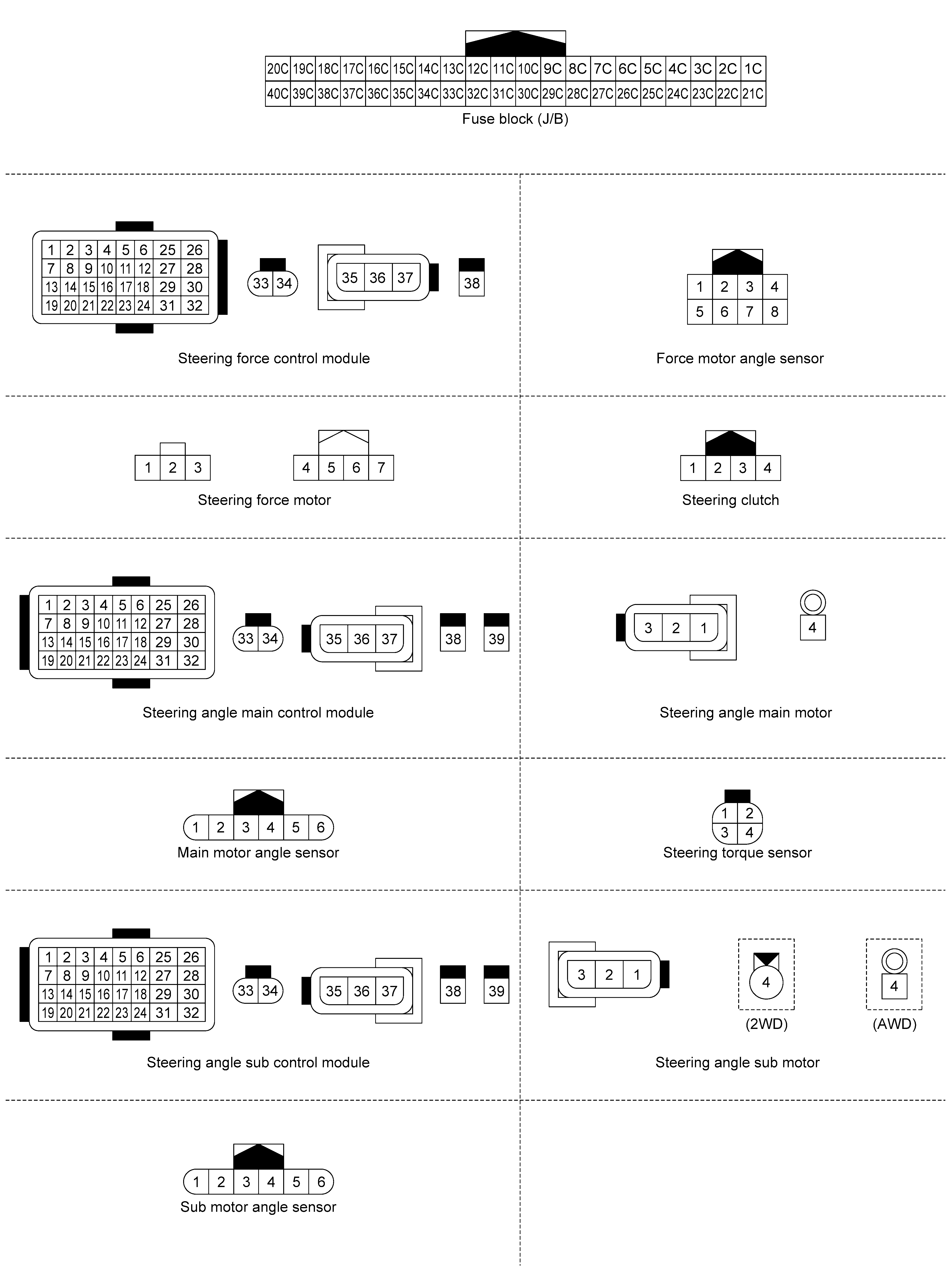

GNSILL0274847-847Courtesy of NISSAN NORTH AMERICA, INC.
