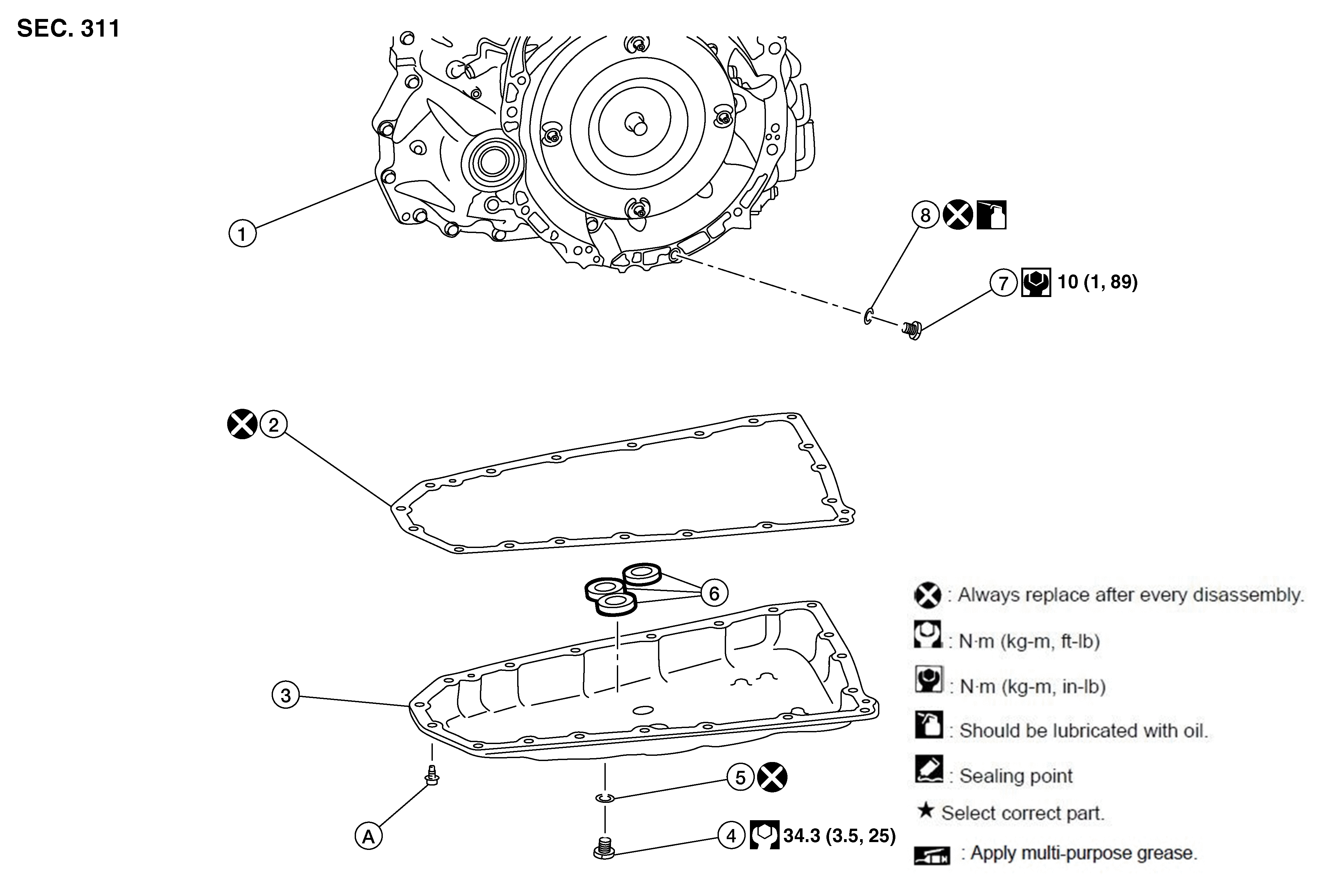

Exploded View

Fig 1: OIL Pan With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transaxle assembly	2.	Oil pan gasket	3.	Oil pan
4.	Drain plug	5.	Drain plug gasket	6.	Magnet
7.	Overflow plug	8.	O-ring	A.	Refer to Removal and Installation .
