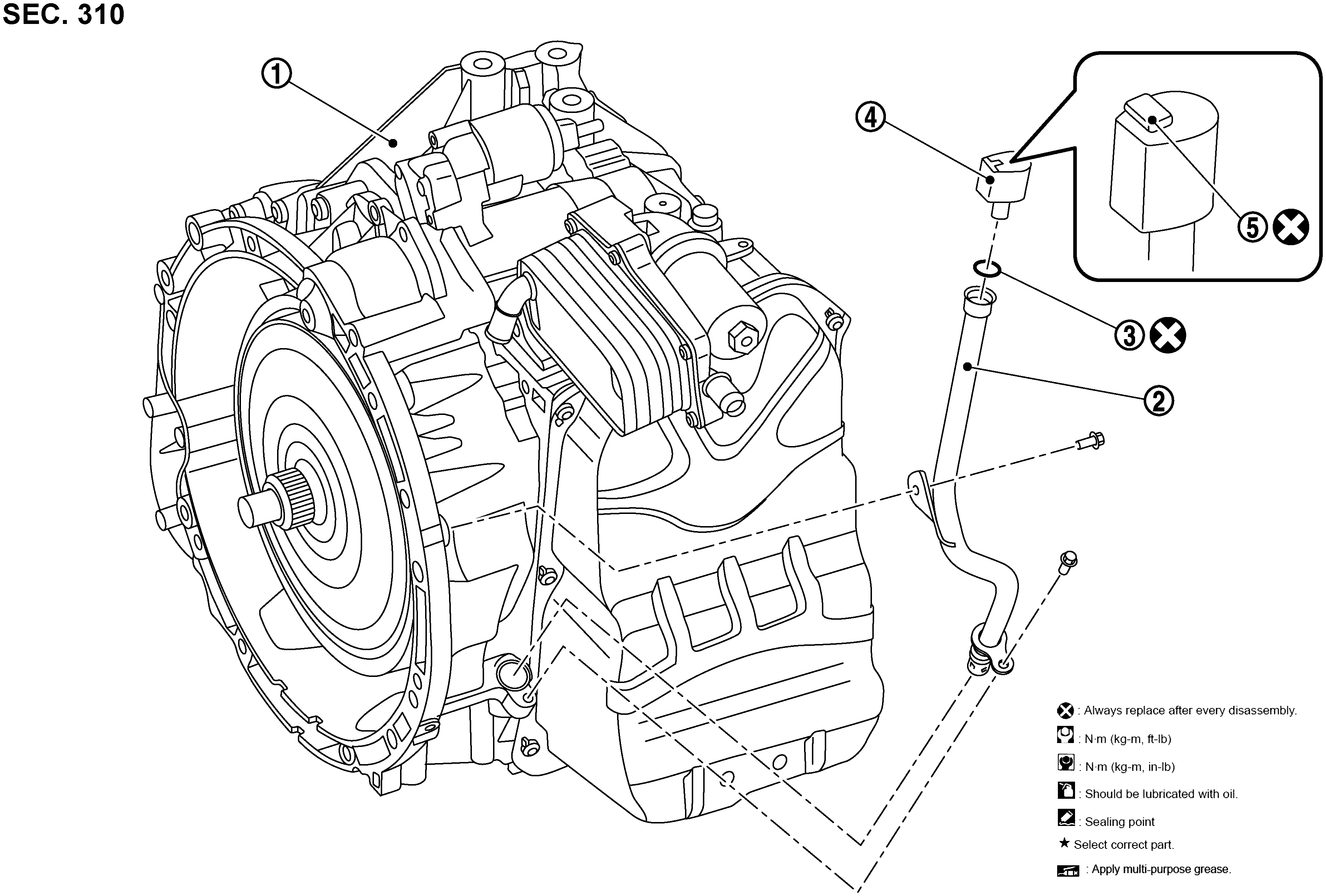

Exploded View

GNSJSDIA8945Z-945Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Transaxle assembly

SYMBOL

Transaxle fluid charging pipe

SYMBOL

O-ring

SYMBOL

Cap

SYMBOL

Lock pin

SYMBOL

: Always replace after every disassembly.
