Removal and Installation: Removal

  1. Remove the front door finisher.

    Refer to Removal and Installation .

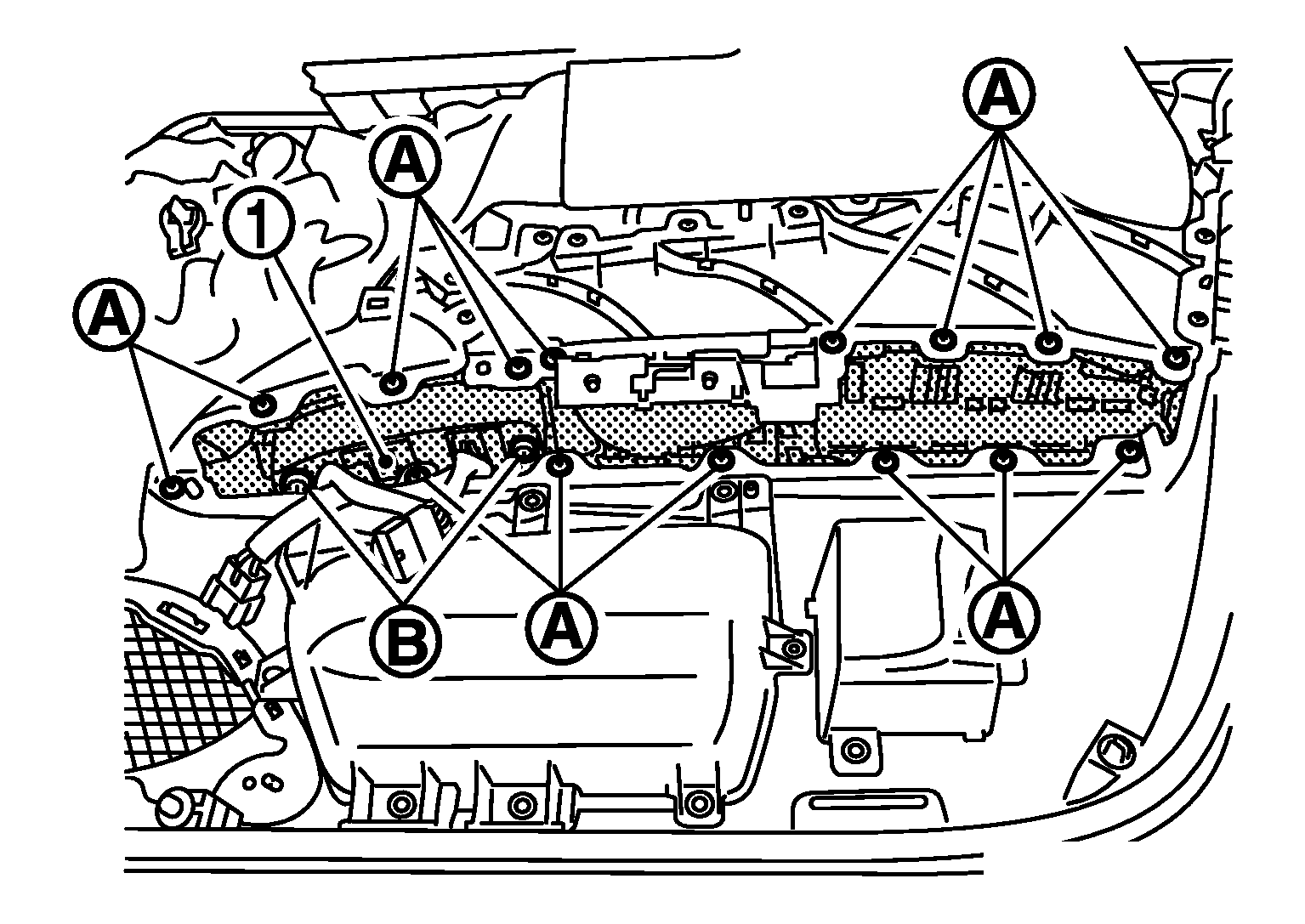

  2. Remove the armrest mounting screws (A), and then remove the armrest from the front door finisher.
    GNSJMKIA5168Z-168Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove mounting screws (B) of power window main switch(1) from the armrest.

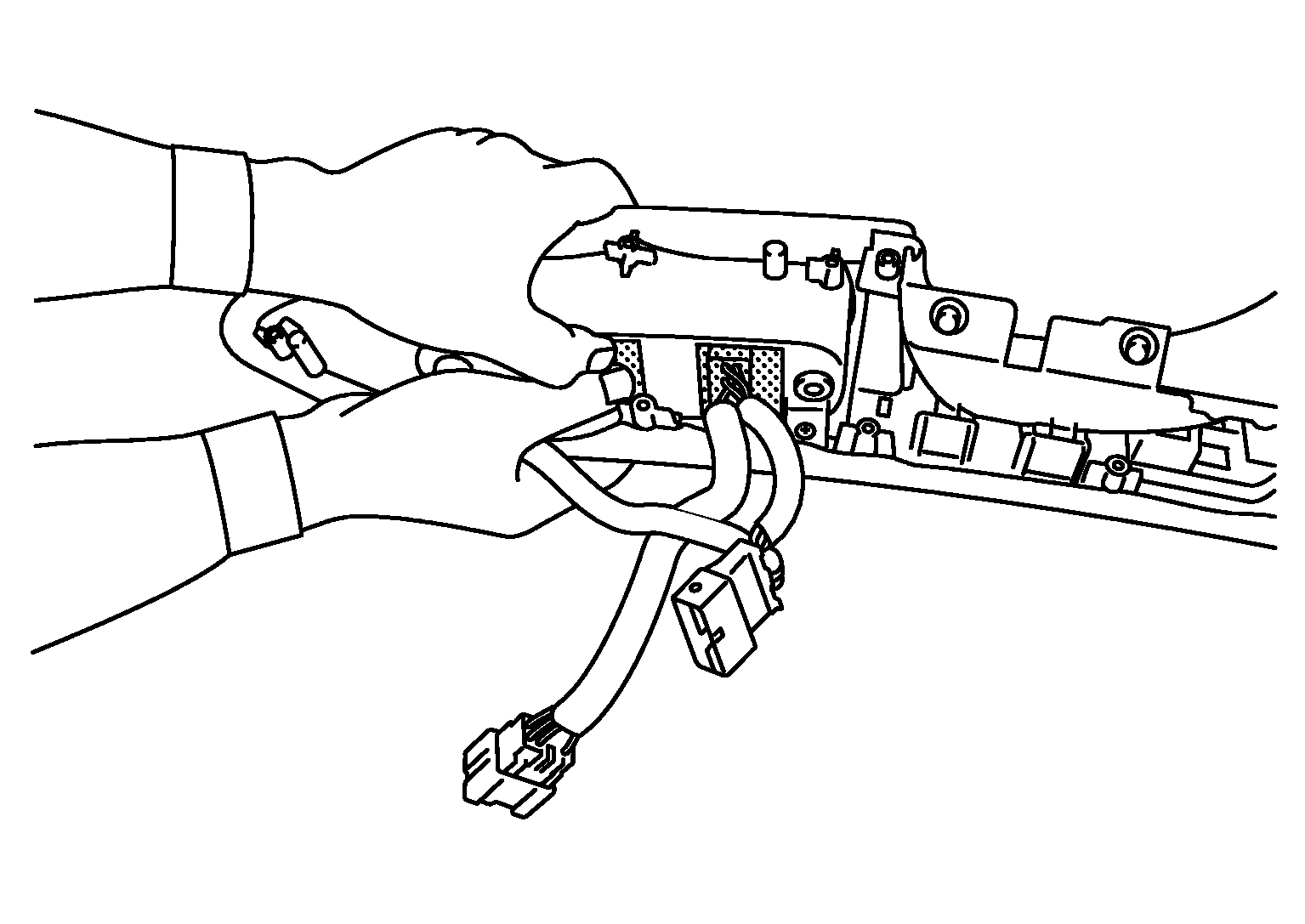

  4. Push out and remove power window main switch from lower side, as shown in the figure.
    GNSJMKIA5169Z-169Courtesy of NISSAN NORTH AMERICA, INC.
