Steering Angle Actuator: Notes

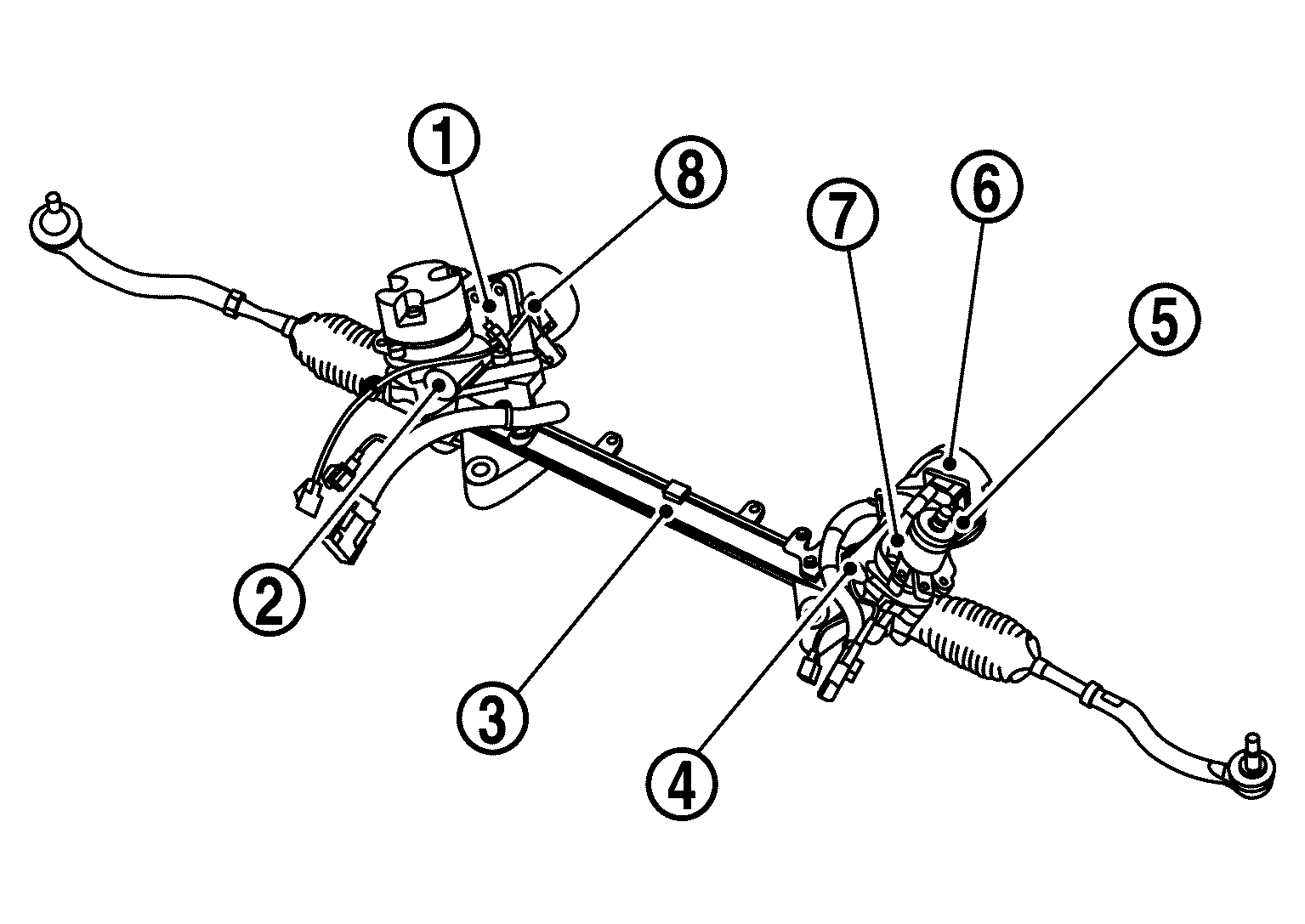

Steering angle actuator mainly consists of the sub motor angle sensor SYMBOL , the sub reduction gear SYMBOL , the steering gear SYMBOL , main reduction gear SYMBOL , the main motor angle sensor SYMBOL , the steering angle main motor SYMBOL , the steering torque sensor SYMBOL , and the steering angle sub motor SYMBOL .

GNSJSGIA1214Z-214Courtesy of NISSAN NORTH AMERICA, INC.
