Removal and Installation: Removal
- Remove the glove box. Refer to Removal and Installation
.
- Remove the instrument lower panel. Refer to Removal and Installation
.
- Disconnect steering force control module harness connectors.
- Disconnect ECM harness connectors.

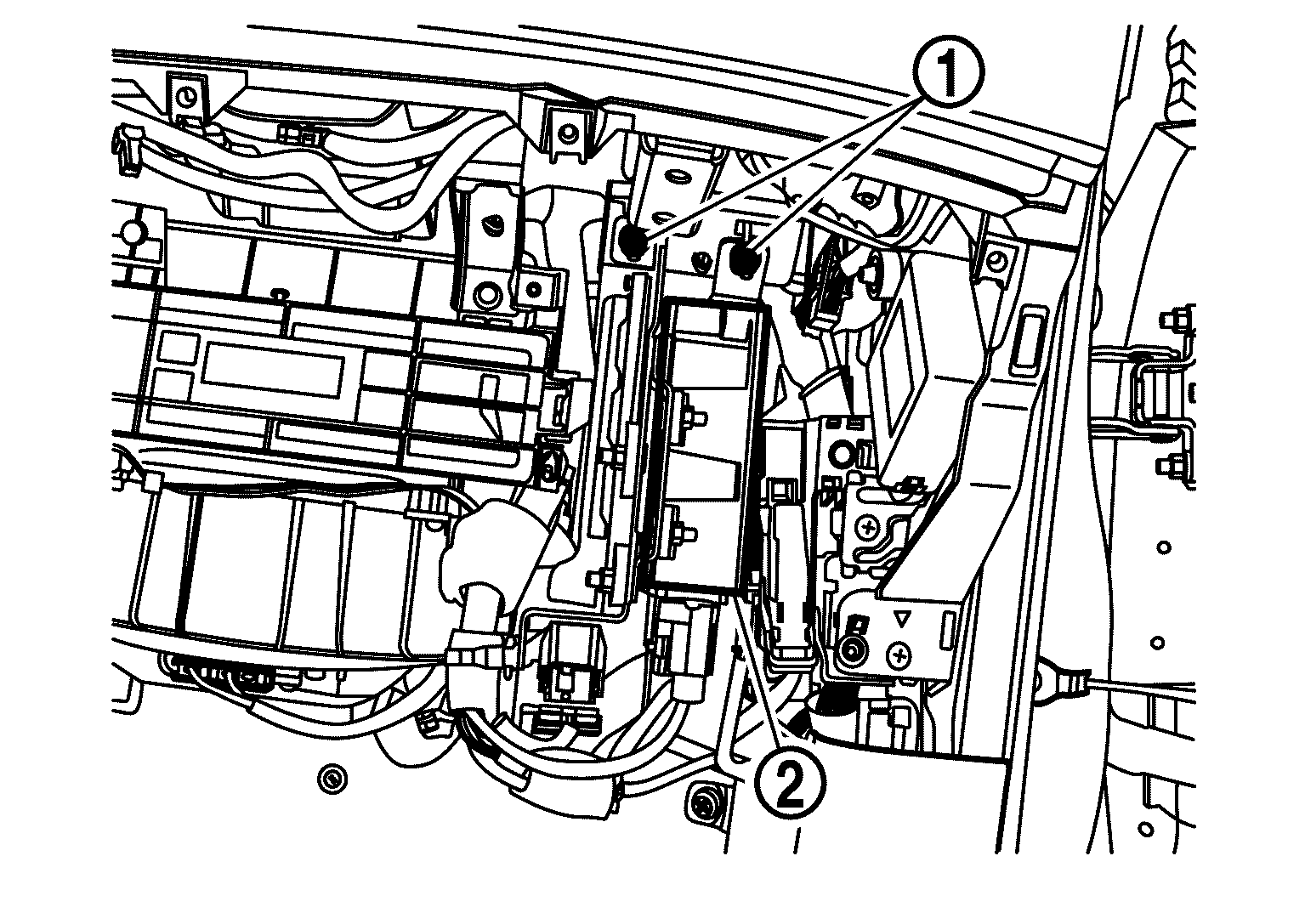

- Remove the nuts
of steering force control module
mounting bracket.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove the steering force control module.
CAUTION:
When replacing control module, replace the following control modules as a set.
- Steering force control module
- Steering angle main control module
- Steering angle sub control module
