Exploded View

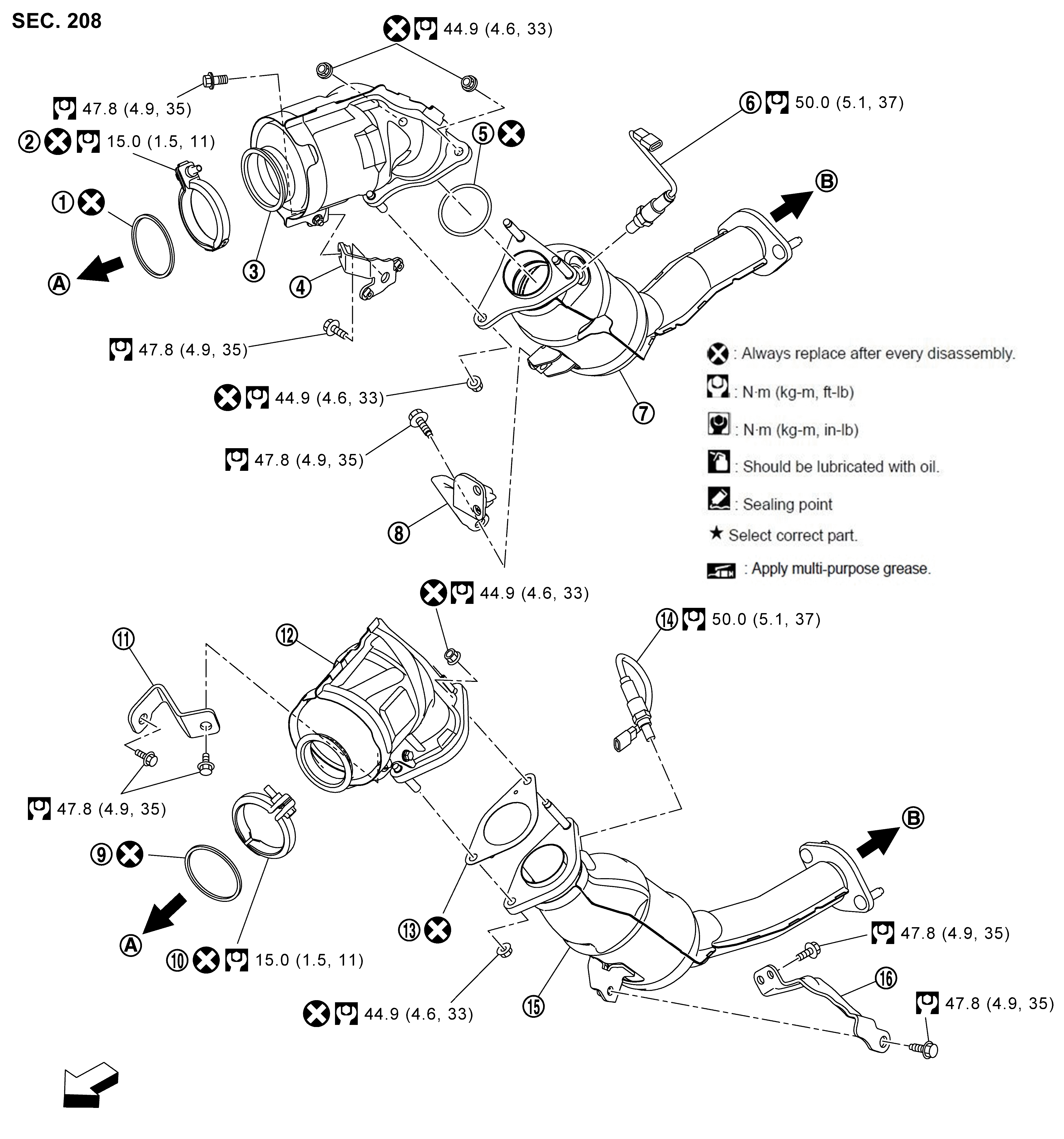

Fig 1: Catalyst With Torque Specification
GNSJSBIA9879GB-879Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Gasket

SYMBOL

Clamp

SYMBOL

Catalyst converter (bank 1)

SYMBOL

Catalyst converter support bracket (bank 1)

SYMBOL

Gasket

SYMBOL

Heated oxygen sensor (bank 1)

SYMBOL

2nd catalyst converter (bank 1)

SYMBOL

Bracket

SYMBOL

Gasket

SYMBOL

Clamp

SYMBOL

Catalyst converter support bracket (bank2)

SYMBOL

Catalyst converter (bank 2)

SYMBOL

Gasket

SYMBOL

Heated oxygen sensor (bank 2)

SYMBOL

2nd catalyst converter (bank 2)

SYMBOL

Bracket

SYMBOL

To turbocharger assembly

SYMBOL

To exhaust front tube

SYMBOL : Engine front

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, ft-lb)
